Dormakaba PHA 2-Point Fire Rated Panic Exit Device – Double Door Set
Dormakaba PHA 2000 series panic exit device configured as a 2-point fire rated double door set. This system is designed for use on fire and smoke check doors in public buildings where panic situations may occur and compliance with EN 1125 is required.
Non-Returnable Item
This product is a special order and is not returnable.
This product is a special order and is not returnable.
Key Features
- EN 1125 compliant panic exit device for double doors.

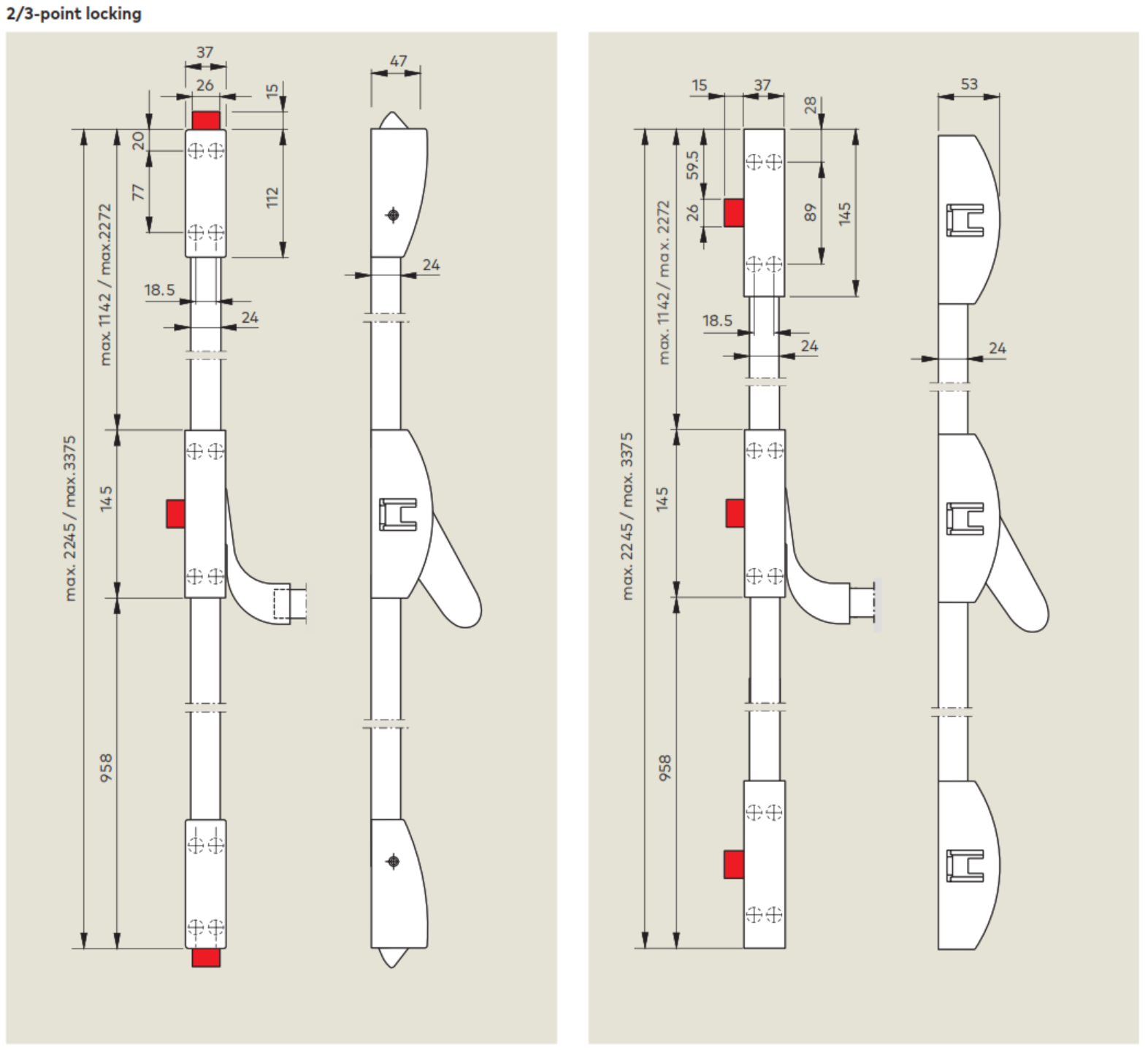

- 2-point locking with security anti-thrust latch.
- Approved for use on fire and smoke check doors.
- Crossbar operation suitable for panic situations.
- Compatible with PHT external fittings for timber, aluminium and narrow-stile doors.
Fire Rated
- Approved for use on single fire and smoke check doors.
- Fire performance is dependent on the complete certified doorset.
- Dogging is not permitted on fire or smoke doors.
Specifications
.
What's In The Box
- Panic crossbar assembly
- Steel latch and latch keeper
- Security anti-thrust latch
- PHX vertical locking components (variant dependent)
Suitable Uses
- Public buildings with panic exit requirements
- Fire and smoke check doors
- Commercial and institutional buildings
Available Variants
*Door heights above 2500 mm fall outside the scope of EN 1125.
Item Code Family
Download PDF Resources
Frequently Asked Questions
Can this device be used on fire doors?
Yes, when installed as part of a certified fire doorset.
Is this suitable for panic situations?
Yes, it complies with EN 1125 and is intended for use where panic may occur.
Can door height exceed 2500 mm?
Yes, but doors over 2500 mm fall outside the scope of EN 1125.
Additional Information
- External trims and microswitch options are selected separately.
- Glass door applications require approved PHA glass kits.
- Door coordinators are required for rebated double doors with closers.
