Dormakaba PHA 3-Point Modular Fire Rated Panic Exit Device

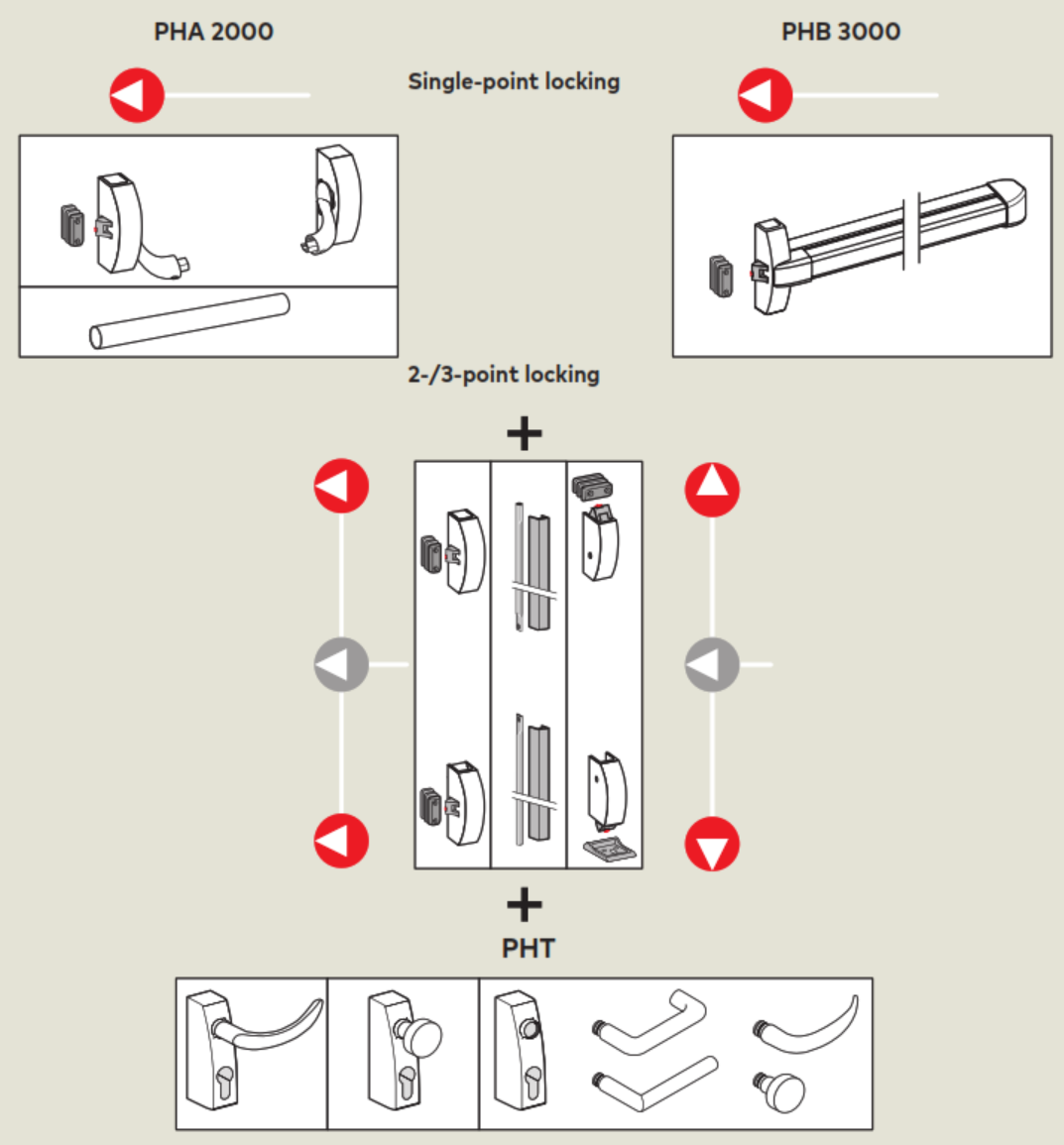

Dormakaba PHA 2000 series modular panic exit device configured as a 3-point fire rated system. This device is designed for public buildings and commercial facilities where panic situations may occur and where fire and smoke door compliance under EN 1125 is required.
Key Features
- EN 1125 compliant panic exit device with crossbar operation.
- 3-point modular locking for increased door security.
- Security anti-thrust latch with steel latch and keeper.
- Approved for use on single fire and smoke check doors.
- Compatible with PHT external fittings for narrow-stile, timber, and full-face doors.
Fire Rated
- Approved for use on single fire and smoke check doors.
- Fire performance is dependent on the complete certified doorset.
- Dogging devices are not permitted on fire or smoke doors.
Specifications
What's In The Box
- Panic crossbar assembly
- Steel latch and latch keeper
- Security anti-thrust latch
- PHX vertical locking components (quantity varies by configuration)
Suitable Uses
- Public buildings subject to panic exit requirements
- Fire and smoke compartment doors
- Commercial and institutional buildings
Available Variants
*Door heights above 2500 mm fall outside the scope of EN 1125.
Item Code Family
Download PDF Resources
Frequently Asked Questions
Is this suitable for fire doors?
Yes, when installed as part of a certified fire and smoke doorset.
What does 3-point locking mean?

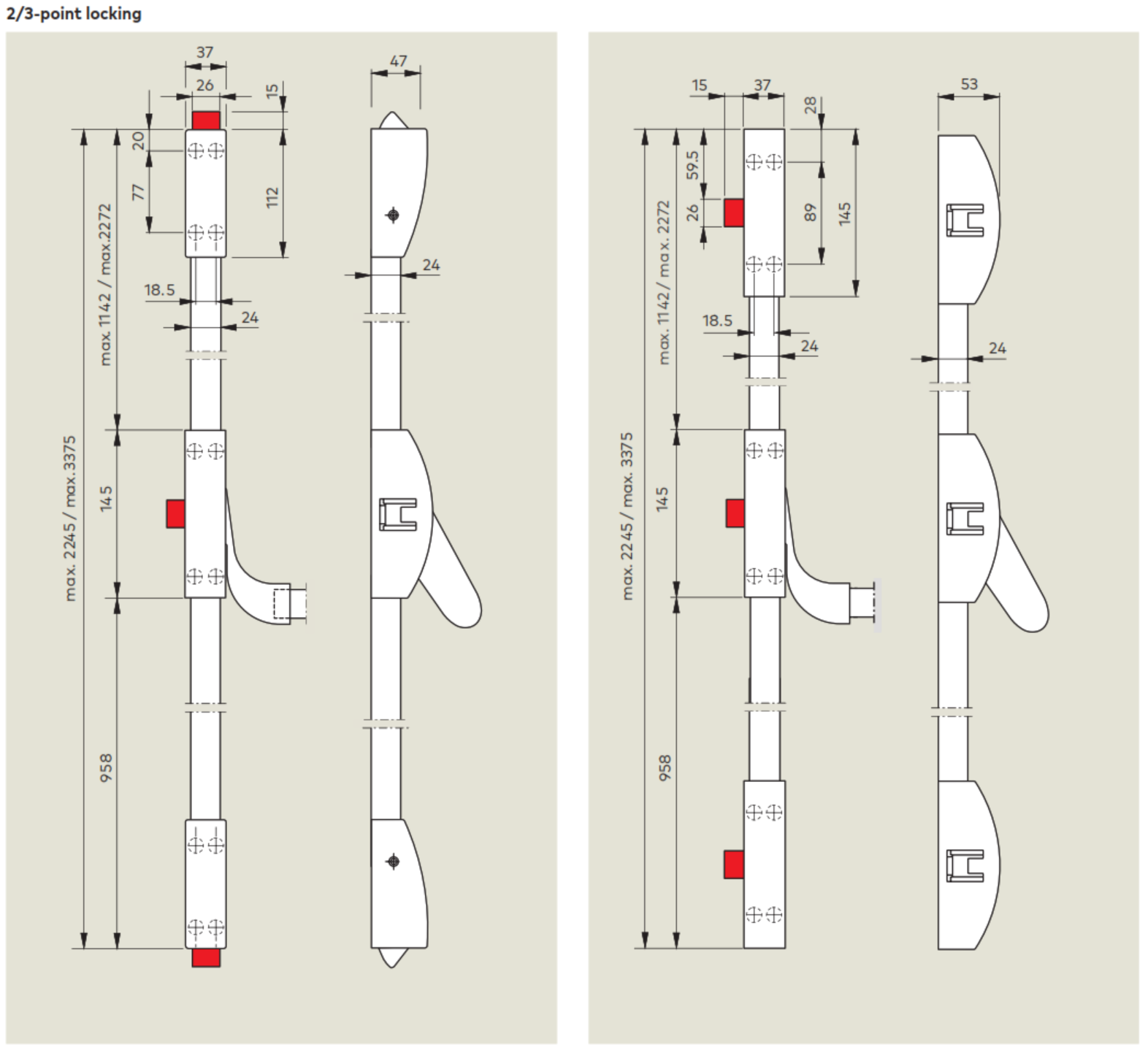

The device locks at the centre and at the top and bottom of the door via vertical rods.
Can this be used on doors over 2500 mm high?
Yes, but door heights above 2500 mm fall outside the scope of EN 1125.
Additional Information
- External trims, microswitches, and glass kits are selected separately.
- Door coordinators are required for rebated double doors with closers.
- Correct PHX configuration must be selected based on door height.
