Dormakaba PHB 2-Point Modular Fire Rated Panic Exit Device – Double Door Set (1000 mm)
Dormakaba PHB 3000 series panic exit device configured as a 2-point modular double door set for doors up to 1000 mm wide. The active leaf operates as a single-point device, while the inactive leaf provides 2-point locking. Designed for public buildings where panic situations may occur, this system complies with EN 1125 and is approved for use on fire and smoke check doors when installed as part of a certified doorset.
Key Features
- EN 1125 compliant panic exit device with push bar operation.
- 2-point modular configuration for double doors.
- Steel latch, steel latch keeper, and security anti-thrust latch.

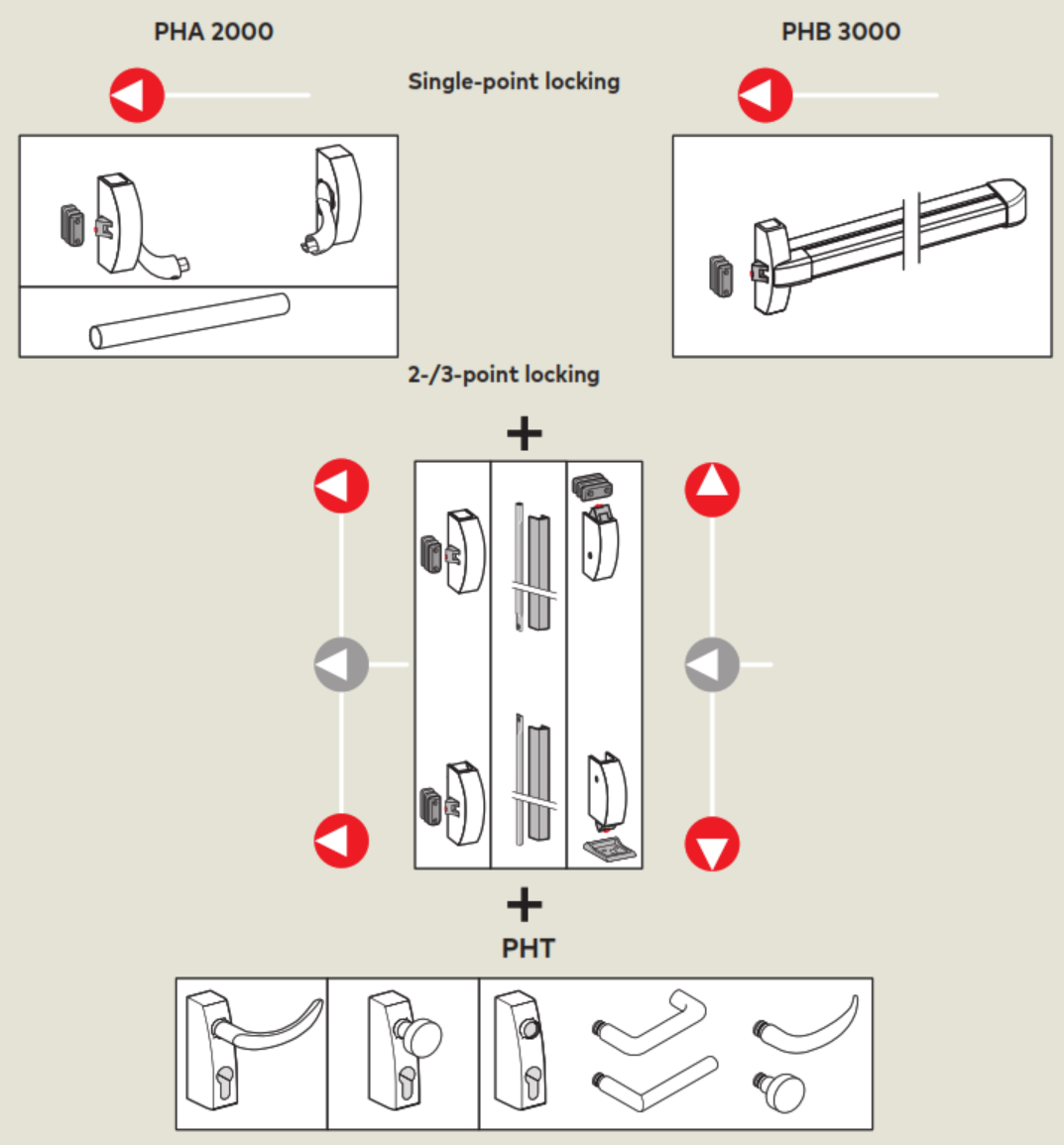

- Compatible with PHT external fittings for narrow-stile, timber, and full-face doors.
Fire Rated
- Approved for use on single fire and smoke check doors.
- Fire performance is dependent on the complete certified doorset.
- Dogging devices are not permitted on fire or smoke doors.
Specifications
.
What's In The Box
- PHB 3000 push bar assemblies
- Steel latch and latch keeper
- Security anti-thrust latch

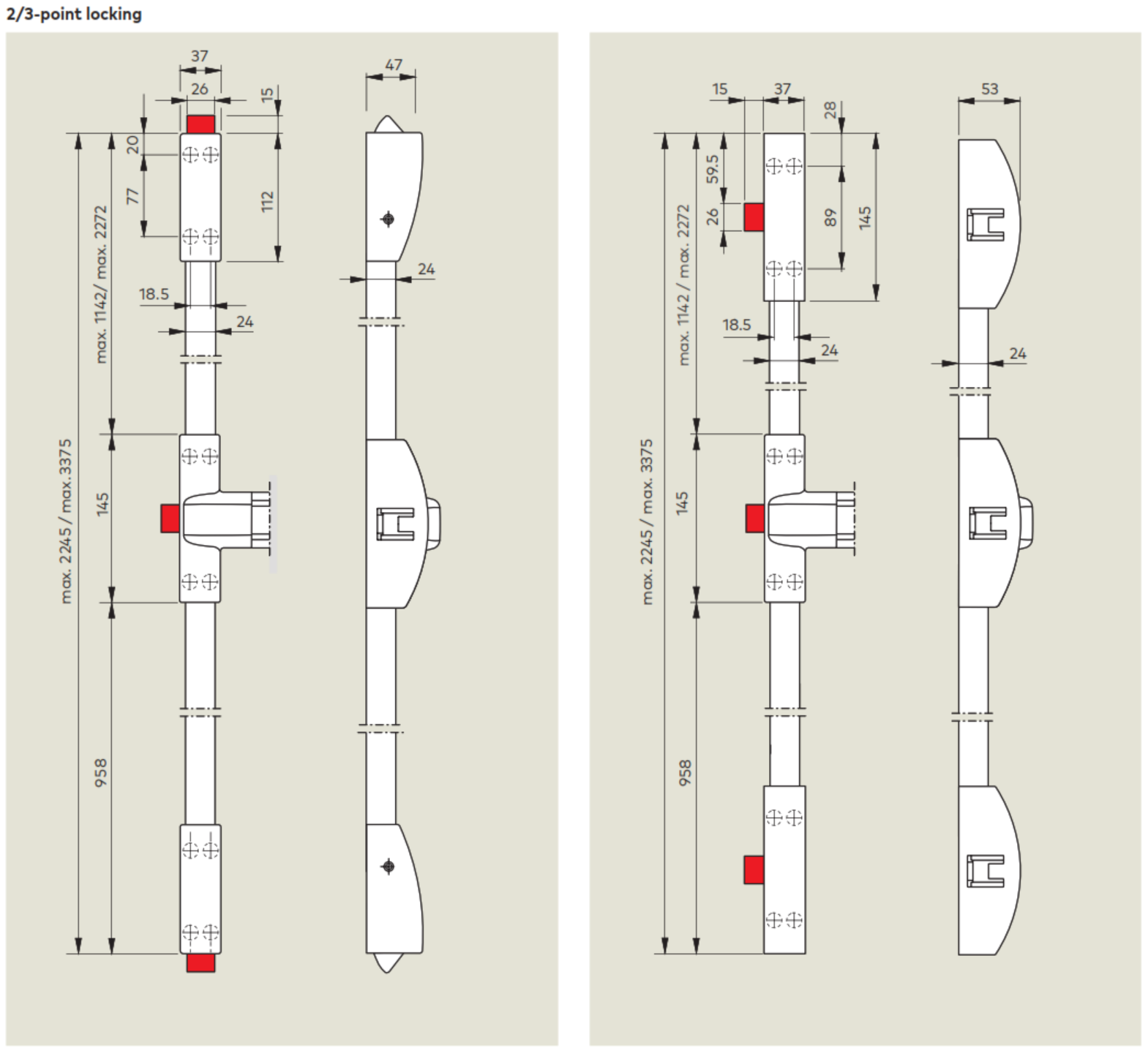

- PHX vertical locking components (variant dependent)
Suitable Uses
- Public buildings with panic exit requirements
- Fire and smoke compartment doors
- Commercial and institutional facilities
Available Variants
*Door heights above 2500 mm fall outside the scope of EN 1125.
Item Code Family
Download PDF Resources
Frequently Asked Questions
Is this suitable for panic situations?
Yes, this device complies with EN 1125 and is designed for use where panic may occur.
Can this be installed on fire doors?
Yes, when installed as part of a certified fire and smoke doorset.
Can door height exceed 2500 mm?
Yes, but doors above 2500 mm fall outside the scope of EN 1125.
Additional Information
- External trims, microswitches and glass kits are selected separately.
- Door coordinators are required for rebated double doors with closers.
- Correct PHX configuration must be selected based on door height.
