Dormakaba PHB 2-Point Modular Fire Rated Panic Exit Device – 1000 mm Doors
Dormakaba PHB 3000 series panic exit device configured as a 2-point modular fire rated set for doors up to 1000 mm wide. Designed for public buildings where panic situations may occur, this system complies with EN 1125 and is approved for use on fire and smoke check doors when installed as part of a certified doorset.
Key Features
- EN 1125 compliant panic exit device with push-bar operation.

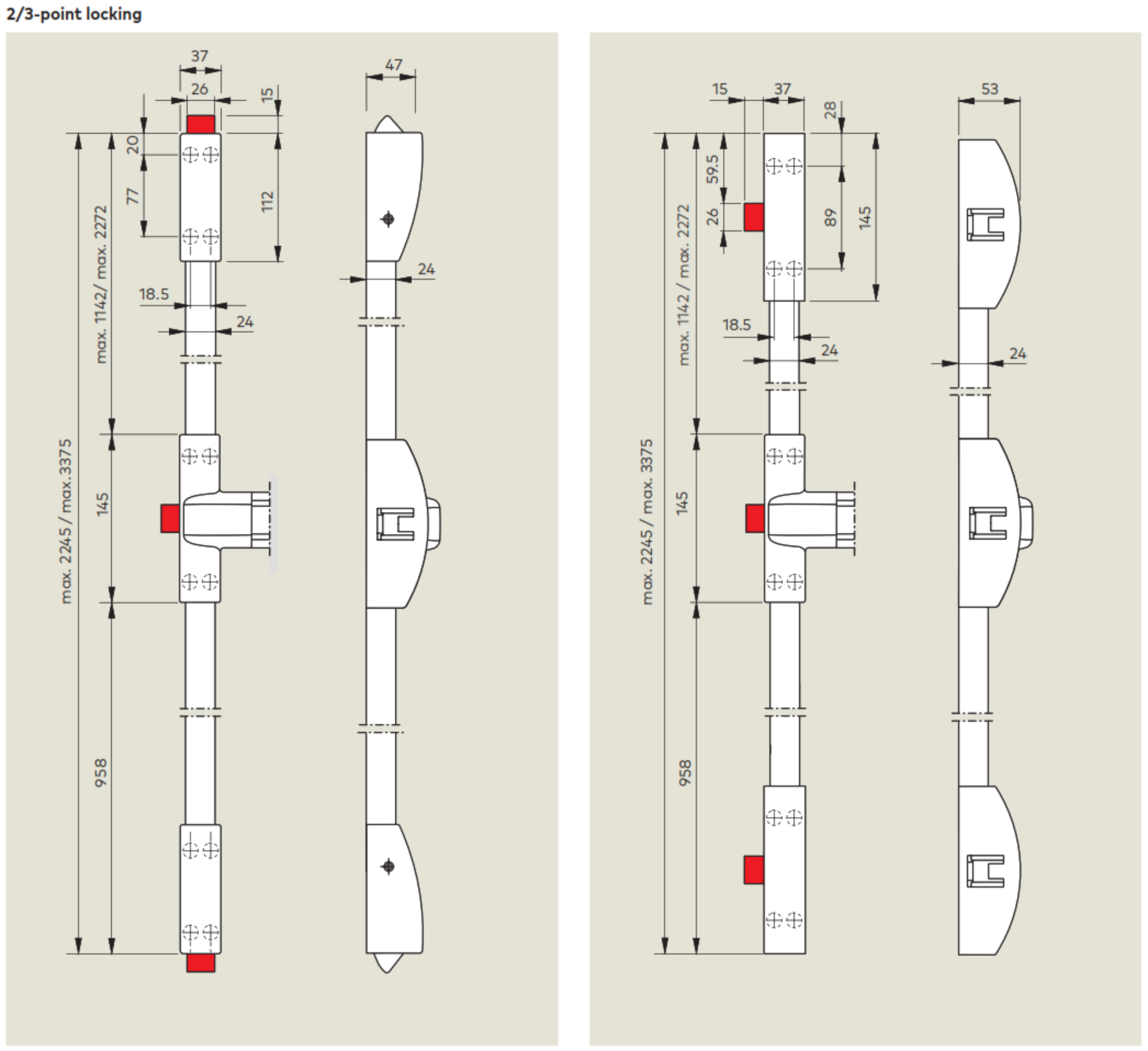

- 2-point modular locking configuration.
- Steel latch, steel latch keeper and security anti-thrust latch.
- Compatible with PHT external fittings for narrow-stile, timber and full-face doors.
Fire Rated
- Approved for use on single fire and smoke check doors.
- Fire performance is dependent on the complete certified doorset.
- Dogging devices are not permitted on fire or smoke doors.
Specifications
.
What's In The Box
- PHB 3000 push-bar assembly
- Steel latch and latch keeper
- Security anti-thrust latch
- PHX vertical locking components (variant dependent)
Suitable Uses
- Public buildings with panic exit requirements
- Fire and smoke compartment doors
- Commercial and institutional facilities
Available Variants
*Door heights above 2500 mm fall outside the scope of EN 1125.
Item Code Family
Download PDF Resources
Frequently Asked Questions
Is this suitable for panic situations?
Yes. This device complies with EN 1125 and is intended for use where panic may occur.
Can this be installed on fire doors?
Yes, when installed as part of a certified fire and smoke doorset.
Can door height exceed 2500 mm?
Yes, but doors above 2500 mm fall outside the scope of EN 1125.
Additional Information
- External trims, microswitches and glass kits are selected separately.
- Door coordinators are required for rebated double doors with closers.
- Correct PHX configuration must be selected based on door height.
dormakaba Warranty
dormakaba Australia Pty Ltd (ABN 14 067 969 466) provides the following warranty on all dormakaba branded products sold in Australia. This warranty is in addition to, and does not limit, your rights under the Australian Consumer Law.
Warranty Summary
How to Make a Claim
- Report the defect promptly. Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries (including Gold Coast Smart Locks) as your point of sale in the first instance. Claims must be lodged no later than 1 month from the date the defect becomes obvious.
- Prepare your documentation. You will need proof of purchase (invoice or receipt), the date of delivery or installation, your name and address, and any maintenance records relevant to the product.
- Make the product available for inspection. dormakaba requires adequate access to the goods, fittings, and fixtures to assess any warranty claim and carry out repairs. If no fault is found, dormakaba's standard costs for inspection, service, and testing apply.
- Warranty work is conducted during normal business hours � 8:00am to 5:00pm, Monday to Friday.
Note: The expense of making a warranty claim (including transport and access costs) is borne by the purchaser.
Exclusions
This warranty does not cover:
- Damage or defects caused by misuse, abuse, neglect, or failure to follow dormakaba's selection, installation, and maintenance instructions
- Fair wear and tear
- Damage arising from installation not carried out by dormakaba or its authorised agents
- Damage caused to the structures the product is installed in, where installation was not by dormakaba or its authorised agents
- Damage caused by circumstances beyond dormakaba's control
- Defects within acceptable industry variances
- Products used other than for their intended purpose
- Damage from exposure to abnormal conditions, including but not limited to extreme temperature, water, fire, humidity, pressure, or stress
- Products that have been modified, built on, or repaired by a third party
- Products not maintained in accordance with dormakaba's care, cleaning, and maintenance instructions (as amended from time to time on the dormakaba website)
- Routine maintenance items (the purchaser's responsibility)
- Products installed, maintained, or operated other than in accordance with dormakaba's instructions
- Overhaul, replacement, or repair work carried out prior to dormakaba's approval of a warranty claim
Important Notes
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure, and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure. Nothing in this warranty limits or excludes these statutory rights.
dormakaba reserves the right to replace defective parts with components of similar quality, grade, and composition where an identical part is unavailable. Refurbished parts or goods of the same type may be used. For discontinued or unavailable products, dormakaba may substitute an equivalent current product. All products replaced under warranty become the property of dormakaba.
