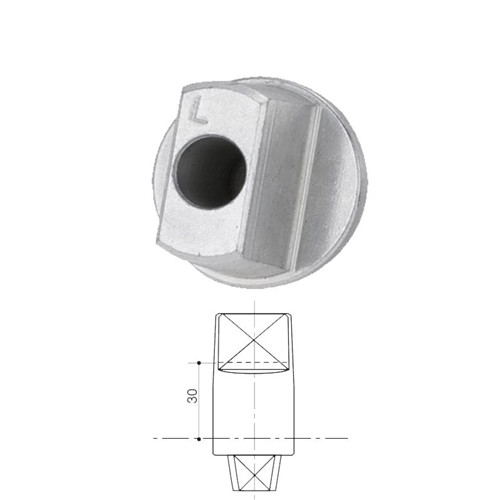

Lockwood Left Hand Offset 3 Degree Extended Spindle +30mm - ST80-60-30LH
The Lockwood ST80-60-30LH Extended Spindle is a left hand offset pivot insert designed for Lockwood ST8011 Series floor spring closers and pivot kits. It provides an additional +30mm clearance where extra space is required between the door and finished floor level.
This spindle is commonly used where thresholds, carpeted floors, raised floor finishes, or installation conditions require additional clearance. The 3 degree offset and left hand configuration must be matched to the door setup for correct alignment and operation.
Typically ships in 1 Day
Key Features
- Left hand offset 3 degree extended spindle insert
- Provides +30mm additional clearance
- Suits Lockwood ST8011 Series floor spring closers and pivot kits
- Interchangeable extended pivot insert for floor spring applications
- Useful where thresholds, carpeted floors, or raised floor finishes require extra clearance
- Designed to assist correct door to floor clearance and pivot alignment
Suitable Uses
- Lockwood ST8011 Series floor spring closer installations
- Commercial aluminium door applications
- Threshold clearance applications
- Carpeted floor installations
- Situations requiring extra clearance between the door and floor
Full Specifications
Item Code Family
Dimensions
Frequently Asked Questions
Is this spindle suitable for all Lockwood floor closers?
No. The supplied product data states it suits Lockwood ST8011 Series floor spring closers and pivot kits. Compatibility should be checked against the installed floor spring system.
When would a +30mm extended spindle be used?
It is used where additional clearance is needed between the door and finished floor level, such as threshold, carpeted floor, or raised floor finish applications.
What is a common installation mistake to avoid?
Do not select the spindle by extension length only. Handing, offset direction, floor clearance, and pivot alignment must all match the door installation.
Additional Information
- The necessary spindle extension is calculated from the required floor clearance and the collar height of the extended spindle insert.
- The standard spindle insert collar height reference is 3mm, which should be considered when calculating spindle extension length.
- Extended spindle inserts are commonly required when flooring has been added or changed after the original door closer installation.
- This type of part is commonly specified in Australian commercial door hardware maintenance and retrofit work.
Lockwood branded products purchased new in Australia from authorised resellers are covered against defects in materials and workmanship for:
- Mechanical components: 25 years
- Electrical and electronic components: 2 years (excluding batteries)
Lockwood Floor Closers Catalogue
Lockwood Floor Closers Catalogue
Lockwood Warranty Overview
Lockwood branded products are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty periods vary depending on product type, mechanical components, electrical elements, and finish category.
This overview summarises the structure of Lockwood warranty coverage. Full terms, exclusions and claim procedures are set out in the official Lockwood Warranty document.
Warranty Periods Summary
Finish Coverage Guide
- Everbrass finishes: up to 25 years against corrosion, tarnishing and discolouration.
- Stainless steel, polished stainless steel, chrome plating and anodised finishes: typically up to 10 years.
- Decorative finishes including Antique Copper, Architectural Bronze, Oil Rubbed Bronze, Aged Brass, Polished Brass, Satin Brass and related variants: typically up to 2 years against corrosion.
- Unlacquered brass finishes will naturally age and change appearance over time. This is not considered a defect.
- Tea staining of stainless steel is not covered where cleaning and maintenance have not been followed.
What the Warranty Covers
- Defects in material and workmanship during the applicable warranty period.
- Assessment by ASSA ABLOY to determine repair, replacement with the same or closest equivalent product, or refund of purchase price.
Common Exclusions
- Normal wear and tear.
- Misuse, abuse, accidental damage or use outside published specifications.
- Improper maintenance or failure to follow care instructions.
- Unauthorised modification, repair or use of non-genuine parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or pollution.
- Removal, refitment or associated labour charges.
- Products not originally sold in Australia through authorised channels.
Warranty Claim Process
- Retain proof of original purchase.
- Return the product through the original place of purchase where applicable.
- If claiming directly, obtain a case number before returning goods.
- Products must be securely packed and clearly identified.
- Warranty assessment determines repair, replacement or refund.
Australian Consumer Law
Lockwood warranties operate in addition to rights available under the Australian Consumer Law. Goods come with guarantees that cannot be excluded. Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage.
Where a product fails to meet acceptable quality standards and the failure does not amount to a major failure, the customer is entitled to repair or replacement.
