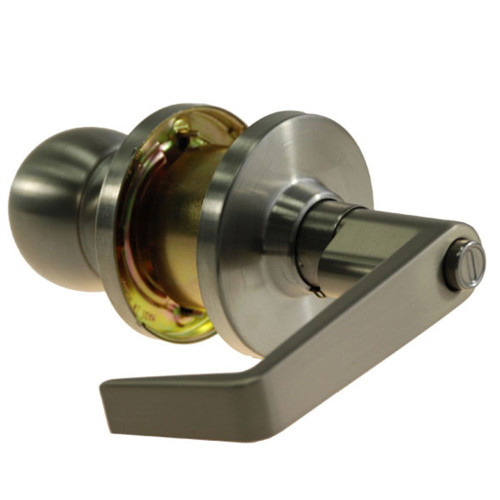

Brava Metro EL Series Classroom Lockset with Knob and Lever 70 mm Backset – Satin Chrome
The Brava Metro EL Series Classroom Lockset is a commercial grade cylindrical knob and lever solution designed for education and controlled access environments. The external knob can be locked or unlocked by key, while the internal lever remains free at all times to allow safe egress.
AS1428.1 – 2009 compliant internal lever only. Check with your certifier for compliance.
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1-2005, Part 1: Fire Resistant Doorsets.
Key Features
- Commercial grade Metro EL3000 series classroom lockset.
- Outside key locks and unlocks the external knob.
- Internal lever free at all times for safe exit.
- Knob and lever cylindrical configuration.
- Anti rotation fixing points.
- Silca LW5 profile 6 pin cylinder.
- Compatible with most restricted keying systems.
- Fire rated when installed as part of a compliant doorset.
- Supplied boxed and colour coded.
- Finished in satin chrome.
Technical Specifications
- Item Code: EL3012SC70
- Brand: Brava
- Series: Metro EL
- Function: Classroom
- Lock Type: Cylindrical
- Configuration: Knob and Lever
- Lock Grade: Commercial
- Backset: 70 mm
- Suits Door Thickness: 35 mm to 45 mm
- Fire Rated: Yes
- Finish: Satin Chrome
Suitable Uses
- School classrooms and teaching spaces.
- Education facilities requiring controlled external access.
- Rooms where free internal egress is mandatory.
- Fire rated door assemblies when approved.
What’s In The Box
- External spherical knob.
- Internal lever handle.
- 70 mm backset latch.
- LW5 profile cylinder.
- Strike plate.
- Fixing hardware.
- 2 keys.
Dimensions
| Door thickness | 35 mm to 45 mm |
| Knob diameter | 54 mm |
| Knob projection | 69.5 mm |
| Lever projection | 63.7 mm |
| Lever length | 101.6 mm |
| Rose diameter | 75 mm |
Brava Metro EL Series – Item Code Family
| Item Code | Function | Configuration | Backset | Description |
|---|---|---|---|---|
| EL3012SC70 | Classroom | Knob / Lever | 70 mm | THIS PRODUCT |
| EL3062SC70 | Storeroom | Knob / Lever | 70 mm | External knob rigid |
| EL6052SC70 | Communication | Lever / Blank Rose | 70 mm | External blank rose |
| EL6051SC70 | Classroom Half Set | Lever / Blank Rose | 70 mm | Keyed internal lever |
| EL6075MB | Dummy | Lever Only | N/A | Fixed single lever |
PDF Resources
Frequently Asked Questions
- What is a classroom function lock?
The external knob can be locked or unlocked by key, while the internal lever always allows free exit. - Is this suitable for fire doors?
Yes, when installed as part of a compliant and tested fire doorset. - Is the internal lever DDA compliant?
The internal lever is AS1428.1 compliant only. Confirm with your certifier.
Additional Information
- Commonly specified for schools, classrooms and training facilities.
- Fire rating applies only when installed as part of a compliant doorset.
