Brava Metro EL Series Storeroom Lever Set – 70 mm Backset
The Brava Metro EL Series Storeroom Lever Set – 70 mm Backset is a commercial grade cylindrical storeroom lever set designed for controlled access applications. The external lever remains rigid and requires a key to retract the latch, while the internal lever is always free.
Estimated Warehouse Dispatch
Usually same day dispatch (if ordered before 11am)
Usually same day dispatch (if ordered before 11am)
Key Features
- Storeroom function with keyed external lever.
- Internal lever always free for egress.
- Cylindrical fixing with anti-rotation points.
- Silca LW5 profile six pin cylinder supplied.
- Compatible with most restricted keying systems.
- Supplied boxed and colour coded with mounting hardware.
Fire Rated
- Successfully tested up to 4 hours on fire door assemblies in accordance with AS1905.1-2005, subject to doorset configuration.
Disability Act Compliance
- Lever design complies with AS1428.1 accessibility requirements.
- Suitable for accessible paths of travel when installed correctly.
- Final compliance must be confirmed by the project certifier.

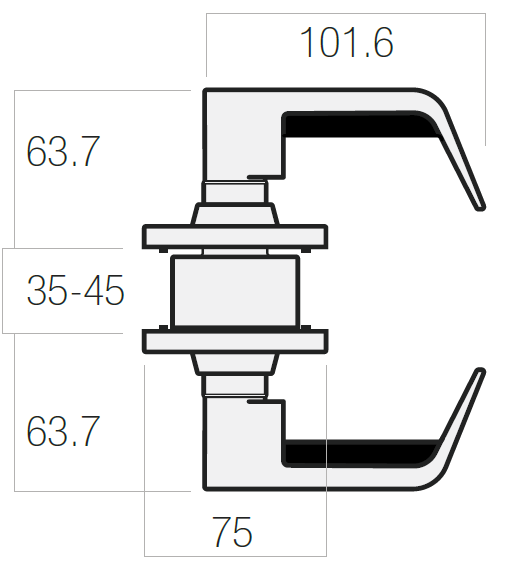

Specifications
- Function: Storeroom
- Lock Type: Cylindrical
- Lock Grade: Commercial
- Backset: 70 mm
- Door Thickness: 35 mm to 45 mm
- Maximum Lever Projection: 63.7 mm
- Rose Diameter: 75 mm
- Latch Face Plate: 57 mm × 25 mm
- Strike: 70 mm × 27 mm × 1.2 mm
- Cylinder: LW5 profile
- Door Handing: Non-handed
- Clutching Levers: No
Brava Metro EL Series Lever Sets – 70 mm Backset (Item Code Family)
Available Colour Variants
-
Chrome Plated
EL6062BC70 -
Matt Black
EL6062MB70 -
Polished Brass
EL6162PB70 -
Satin Chrome
EL6062SC70
Frequently Asked Questions
Can this lever be opened from the inside without a key?
Yes. The internal lever is always free for immediate egress.
Is this suitable for fire doors?
Yes, when installed as part of a compliant fire rated doorset.
Is this suitable for accessible paths of travel?
Yes. The lever design complies with AS1428.1 requirements.
Additional Information
- Storeroom function is commonly specified for plant rooms and staff-only areas.
- External lever rigidity prevents unauthorised access without a key.
- Frequently used in Australian commercial and industrial sites.
