Brava Metro EL Series Passage Lever Set – 70 mm Backset
The Brava Metro EL Series Passage Lever Set – 70 mm Backset is a commercial grade cylindrical passage lever set designed for internal doors where free access is required from both sides. Both levers operate freely at all times, making this set suitable for circulation spaces and non-locking doors.
Estimated Warehouse Dispatch: Usually same day dispatch (if ordered before 11am)
Key Features
- Passage function with free operation on both sides.
- No locking mechanism.
- Cylindrical fixing with straight lever design.
- Anti-rotation fixing points.
- Commercial grade construction.
- Supplied boxed and colour coded with mounting hardware.
Fire Rated
- Successfully tested up to 4 hours on fire door assemblies in accordance with AS 1905.1-2005, subject to doorset configuration.
Disability Act Compliance
- Lever design complies with AS1428.1 accessibility requirements.
- Suitable for accessible paths of travel when installed correctly.
- Final compliance must be confirmed by the project certifier.
Specifications
- Function: Passage
- Lock Type: Cylindrical
- Lock Grade: Commercial
- Backset: 70 mm
- Door Thickness: 35 mm to 45 mm
- Maximum Lever Projection: 63.7 mm
- Rose Diameter: 75 mm
- Latch Face Plate: 57 mm × 25 mm
- Strike: 70 mm × 27 mm × 1.2 mm
- Door Handing: Non-handed
- Clutching Levers: No
Brava Metro EL Series Lever Sets - 70 mm Backset (Item Code Family)
Suitable Uses
- Internal commercial doors.
- Hallways, corridors and circulation areas.
- Fire rated doors where locking is not required.
Available Colour Variants
-
Chrome Plated
EL6082BC70 -
Matt Black
EL6082MB70 -
Polished Brass
EL6182PB70 -
Satin Chrome
EL6082SC70
Download PDF Resources
|

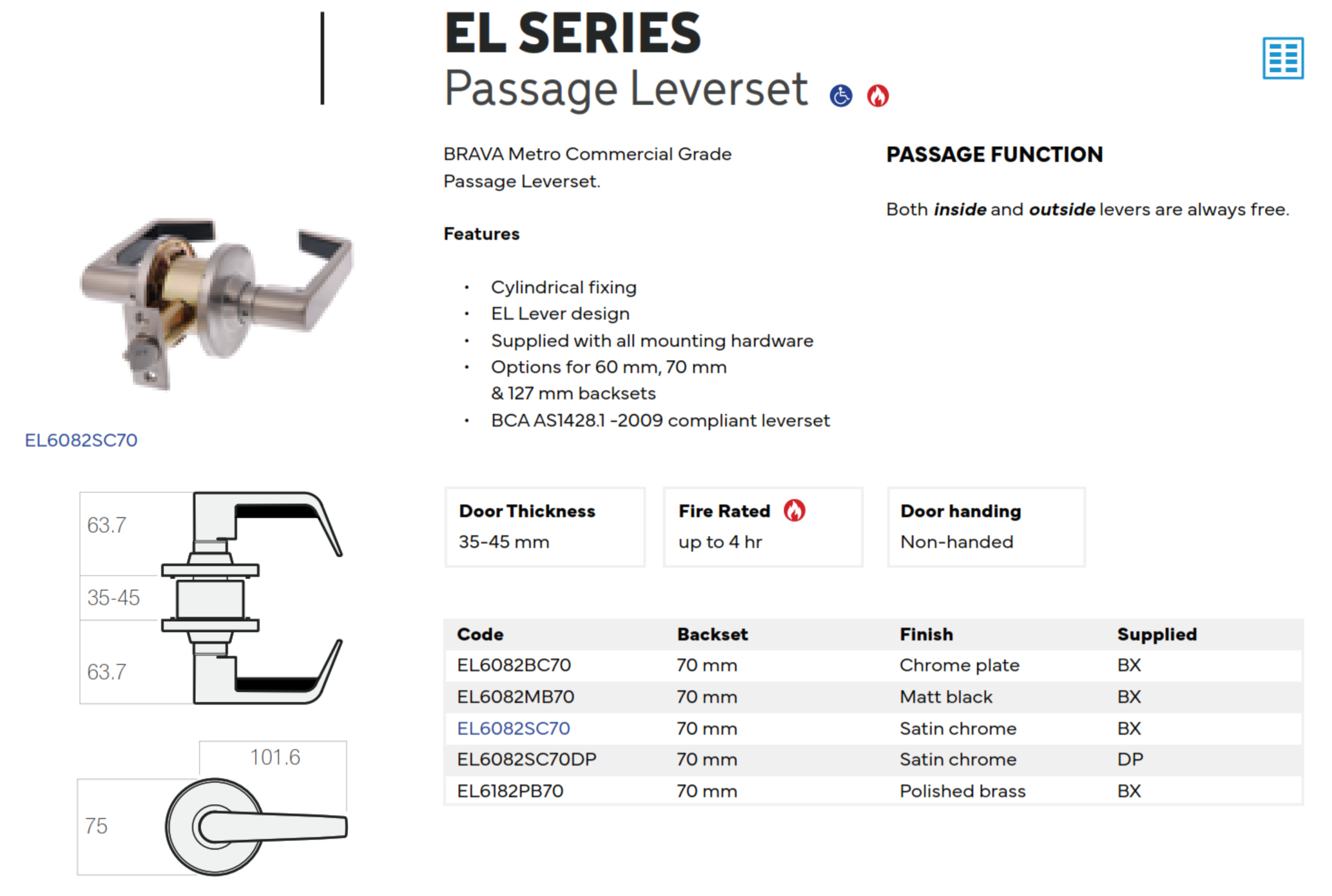

Brava Commercial Hardware Catalogue 2024 |
Frequently Asked Questions
Does this lever lock?
No. This is a passage function and both levers are always free.
Is this suitable for fire doors?
Yes, when installed as part of a compliant fire rated doorset tested to AS 1905.1.
Is this suitable for accessible paths of travel?
Yes. The lever design complies with AS1428.1 accessibility requirements.
Additional Information
- Passage function is commonly specified where locking is not required.
- Fire rating applies to the full doorset configuration.
- Frequently used in commercial corridors and shared spaces.
