ABUS Hasp and Staple 140/120 with 24IB/60 Diskus Padlock – Combo Pack
The ABUS 14012024IB60C is a high-security hasp and staple plus padlock combo pack, combining an ABUS 140/120 hasp and staple with an ABUS 24IB/60 stainless steel Diskus padlock.
This combination is designed for applications where improved resistance to shackle attack and tampering is required, using a protected staple geometry matched to a Diskus-style padlock.
Key Features
- Matched ABUS hasp and Diskus padlock supplied as a complete set.
- Special staple design to shield the padlock shackle.
- Stainless steel hasp and hinge pins with hardened staple.
- ABUS 24IB/60 stainless steel Diskus padlock with anti-cut plate.
- Supplied display packed with fixing hardware.
Specifications – Hasp and Staple
| Hasp Series | 140/120 |
| Overall Length | 120 mm |
| Height | 56 mm |
| Staple Hole Diameter | 12.5 mm |
| Construction | Stainless steel hasp with hardened steel staple |
| Fixing Type | Single hinge, concealed fixing |

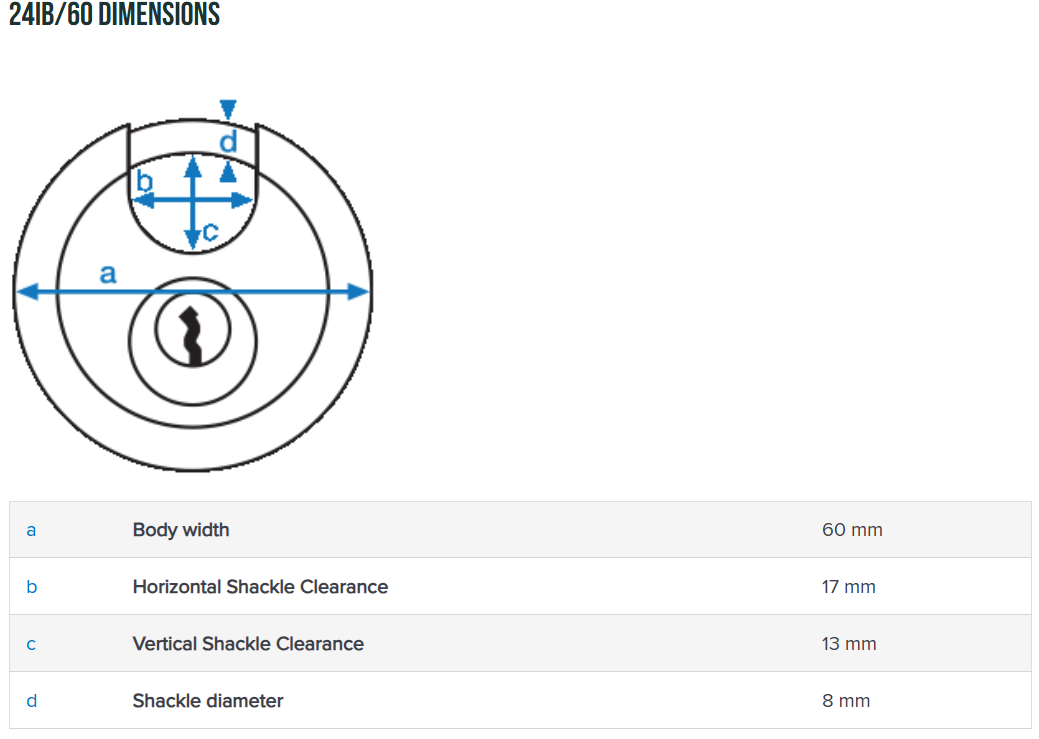

Specifications – Padlock
| Padlock Model | ABUS 24IB/60 Diskus |
| Body Width | 60 mm |
| Shackle Diameter | 8 mm |
| Horizontal Clearance | 17 mm |
| Vertical Clearance | 13 mm |
| Keying | Keyed to differ |
| Key Profile | AB2 |
What's In The Box
- ABUS 140/120 hasp and staple
- ABUS 24IB/60 stainless steel Diskus padlock (keyed to differ)
- Fixing screws and installation hardware
- Keys supplied with padlock
Suitable Uses
- Industrial sheds and plant rooms.
- Gates and external doors requiring higher security.
- Commercial storage areas.
- Applications where Diskus padlocks are preferred.
ABUS Hasp and Staple – Item Code Family
Frequently Asked Questions
What is the benefit of using a Diskus padlock with this hasp?
The protected shackle design reduces access for bolt cutters when correctly installed.
Is this supplied keyed alike?
No. The supplied Diskus padlock is keyed to differ.
Is this suitable for outdoor use?
Yes. The stainless steel construction is suitable for external environments.
Additional Information
- Diskus-style hasp and padlock combinations are commonly specified in higher-risk locations.
- Correct alignment during installation is essential to maintain shackle protection.
- For extreme environments, regular inspection of fixings is recommended.
