ABUS Hasp & Staple 140/190 – 190 mm – With Diskus Padlock (Display Pack)
The ABUS 140/190 is a Diskus-compatible hasp and staple locking set supplied as a complete solution with an ABUS Diskus padlock. Its extended 190 mm hasp length provides a wider fixing span, while the special staple design protects the padlock shackle so that, when combined with a Diskus padlock, shackle attack is virtually impossible.
Key Features
- Designed specifically for use with ABUS Diskus padlocks.
- Special staple design protects the padlock shackle from attack.
- Hasp and hinge pins made of stainless steel.
- Hardened steel staple.
- Sturdy steel hasp construction.
- Hinge pins with tear-off resistance.
- Supplied as a complete locking set with Diskus padlock.
- Supplied in retail display packaging.

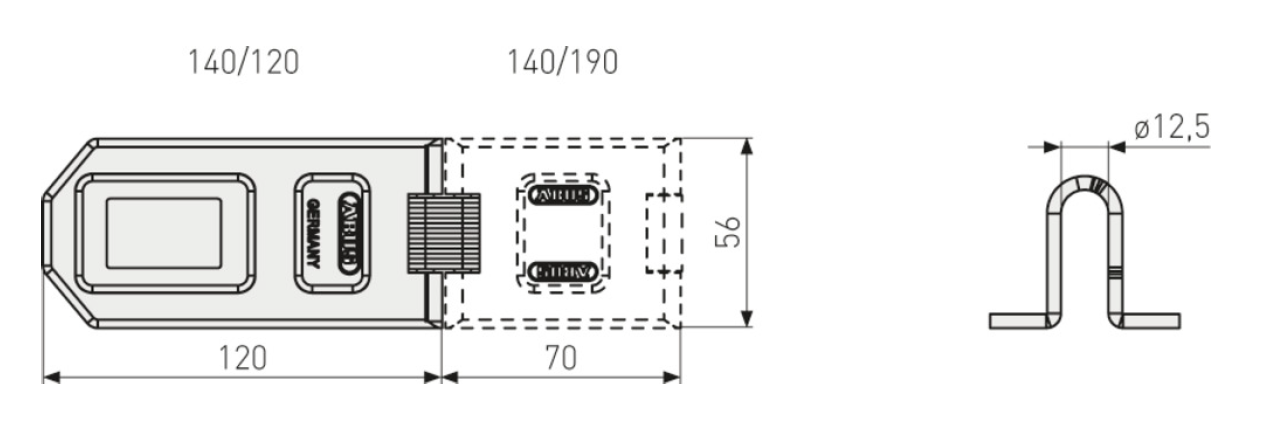

Specifications
- Item Code: 140190C
- Product Type: Padlockable hasp and staple – single hinge
- Overall Length: 190 mm
- Height: 56 mm
- Staple Hole Diameter (Eyelet): 12.5 mm
- Material: Hardened steel
- Hinge Pins: Stainless steel, tear-off resistant
- Compatibility: Designed for ABUS Diskus padlocks
- Padlock Supplied: Yes – ABUS Diskus padlock
- Packaging: Display pack
What's In The Box
- ABUS 140/190 hasp and staple assembly
- ABUS Diskus padlock
- Mounting screws and fitting accessories
Suitable Uses
- Sheds and storage doors
- Gates and utility enclosures
- Doors requiring extended fixing span
- Applications where shackle protection is critical
ABUS Diskus-Compatible Hasps – Item Code Family
Frequently Asked Questions
Does this set include a padlock?
Yes. This model is supplied as a complete set with an ABUS Diskus padlock.
Why is a Diskus padlock used with this hasp?
The hasp geometry is designed to protect the closed shackle of a Diskus padlock, greatly reducing cutting access.
Is mounting hardware included?
Yes. Screws and fitting accessories are supplied.
Additional Information
- Commonly specified in Australian residential and light commercial installations.
- The longer hasp length allows flexibility when mounting across door gaps or uneven surfaces.
- Correct alignment during installation is critical to ensure full shackle protection.
