ABUS 65CS/50 Concealed Shackle Brass Padlock
The ABUS 65CS/50 is a concealed shackle padlock with a 50 mm solid brass body and a hardened steel shackle recessed into the body to reduce exposure to cutting and levering attacks. This model is supplied keyed alike to KA6501 and is commonly selected where exposed shackles are a known attack point.
Key Features
- Concealed shackle design limits access for bolt cutters and saws.
- 50 mm solid brass body provides corrosion resistance and durability.
- Hardened steel shackle with Nano-Protect coating for improved cut resistance.
- Double locking mechanism increases resistance to prying and twisting.
- Precision pin tumbler cylinder for consistent key operation.
- Internal components manufactured from non-corrosive materials.
Specifications
- Item Code: 65CS50KA11
- Body Material: Solid brass

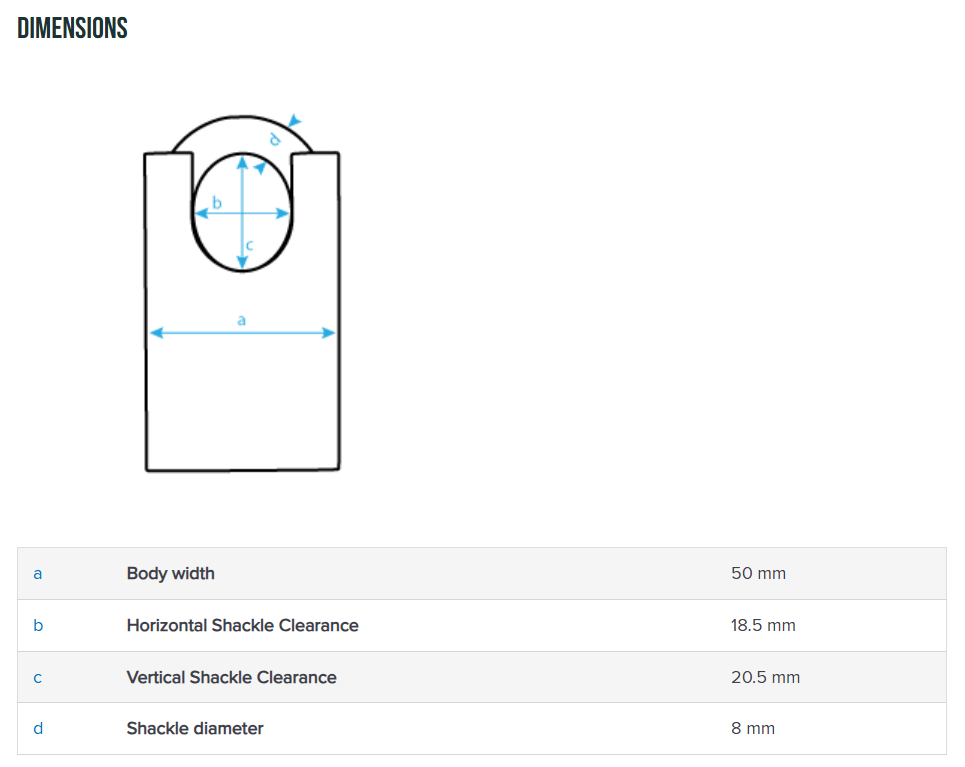

- Body Width: 50 mm
- Shackle Material: Hardened steel with Nano-Protect coating
- Shackle Diameter: 8 mm
- Horizontal Shackle Clearance: 18.5 mm
- Vertical Shackle Clearance: 20.5 mm
- Locking Mechanism: Double locking
- Keying: Keyed alike (KA6501)
- Key Blank: AB54
- Rekeyable: No
- Packaging: Boxed
What's In The Box
- 1 × ABUS 65CS/50 concealed shackle padlock
- Keys supplied keyed alike to KA6501
Suitable Uses
- Roller doors and commercial shutters.
- Industrial gates, cages, and storage units.
- Locations where shackle cutting is a known attack method.
Standard vs Long vs Concealed Shackle Chooser
| Shackle Type | Best For | Trade-Off |
|---|---|---|
| Standard Shackle | General-purpose locking | More exposed to cutting |
| Long Shackle | Extra reach or clearance | Higher leverage risk |
| Concealed Shackle (This model) | High-security, attack-prone locations | Reduced clearance flexibility |
ABUS 65 Series Concealed Shackle – Item Code Family
Download PDF Resources
|
ABUS Padlocks Catalogue |
Additional Information
- Concealed shackle padlocks significantly reduce cutting attacks but do not protect against prying if the hasp or staple is weak or poorly aligned.
- This model is commonly used by locksmiths on roller doors where exposed long shackles are repeatedly cut.
- Because clearance is limited, installers should confirm staple alignment before selecting a concealed shackle padlock.
- Brass bodies offer corrosion resistance but are softer than steel and rely on the concealed shackle design for attack resistance.
