ABUS 65CS/40 Premium Brass Padlock – Concealed Shackle – Keyed Alike
The ABUS 65CS/40 is a concealed shackle brass padlock designed to minimise exposure to cutting and levering attacks. The 40 mm solid brass body houses a hardened steel shackle with limited exposure, making this model suitable for higher-risk locker, cabinet, and light commercial applications. This version is supplied keyed alike to KA6402.
Key Features
- 40 mm solid brass body for durability and corrosion resistance.
- Concealed hardened steel shackle with Nano-Protect coating.
- Reduced shackle exposure to resist bolt-cutter and pry attacks.
- Precision pin tumbler cylinder.
- Internal components manufactured from non-corrosive materials.
- Supplied keyed alike to KA6402.
- Supplied boxed.
Specifications
- Item Code: 65CS40KA12
- Model: 65CS/40
- Keying: Keyed alike (KA6402)

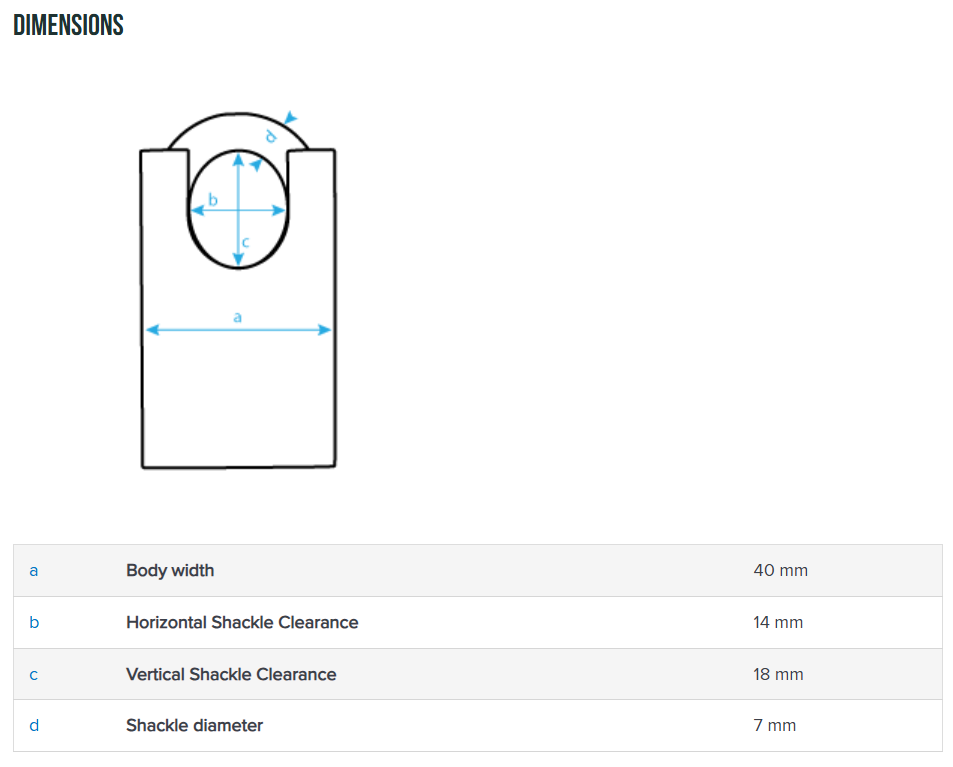

- Body Width: 40 mm
- Body Material: Brass
- Shackle Material: Hardened steel (Nano-Protect coating)
- Shackle Diameter: 7 mm
- Horizontal Shackle Clearance: 14 mm
- Vertical Shackle Clearance: 18 mm
- Key Blank: AB52
- Rekeyable: No
Choosing the Right Padlock Size
- 30 mm body – Compact size for general lockers and cabinets.
- 40 mm body (this model) – Increased strength and durability for higher-risk applications.
- 50 mm+ body – Larger padlocks for heavier commercial or industrial use.
Environment Suitability
- Indoor Use: Recommended.
- Sheltered Outdoor Use: Suitable.
- Fully Exposed Outdoor Use: Not recommended – consider stainless or weather-protected models.
Suitable Uses
- Lockers and cabinets in shared environments
- Toolboxes and storage boxes
- Light commercial access points
- Applications where reduced shackle exposure is desirable
ABUS 65 Series Padlocks – Shackle Type Comparison
Download PDF Resources
 |
ABUS Padlocks Catalogue |
Additional Information
- Concealed shackle padlocks significantly reduce vulnerability to bolt cutters.
- This design prioritises resistance to attack over shackle reach.
- Keyed alike configurations simplify access management across multiple locks.
