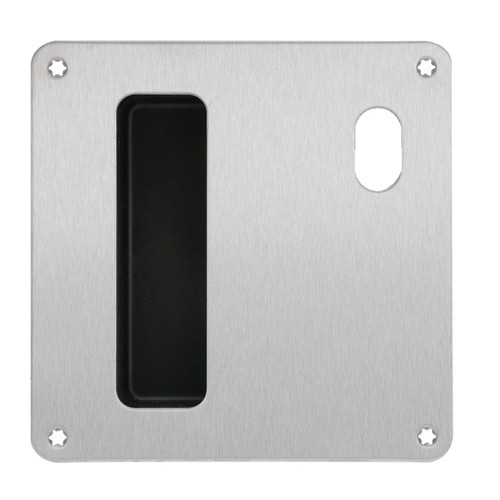

Lockwood 203 Interior Round Corner Plate - Flush Pull & Cylinder | Satin Stainless Steel
The Lockwood 203 Series Interior Plate with Flush Pull and Cylinder is part of the Artefact range of round corner plate door furniture. This interior plate combines a flush pull for gripping the door from the inside with a Lockwood 570 Series oval cylinder hole, providing both keyed interior access and a recessed flush grip without a projecting handle. The cylinder must be ordered separately.
Suited to fire doors, service doors and applications where a projecting handle is not desired on the interior face. Pairs with the 202 Series exterior plate (round corner). Supplied in Satin Stainless Steel, left and right hand.
Estimated Warehouse Dispatch
Usually ships in 11 business days
Usually ships in 11 business days
Special Order - Non-Returnable Item
Please confirm cylinder compatibility, handing and suitability before ordering.
Please confirm cylinder compatibility, handing and suitability before ordering.
Available Finish Options
Satin Stainless Steel
SS
Available in left and right hand.
Fire Rated
- Fire rated up to 4 hours - AS1905.1:2005. Fire performance is dependent on doorset type and configuration. Compliance is system-based and limited by the FRL of the complete doorset assembly.
Key Features
- Round corner 162 x 162mm interior plate with 10mm radius corners - Lockwood Artefact 203 Series
- Flush Pull and Cylinder (Function 32) - recessed flush pull with cylinder hole
- Flush pull - recessed grip, no projecting handle
- Accepts Lockwood 570 Series oval cylinder - 32mm (H) x 18mm (W). Cylinder not included - order separately.
- No lever. No engraving. Visible fixings at 4 points. Fixing screws not included. Supplied in trade pack.
- Tested to Level D8 (500,000 cycles) - AS4145.2-2008. Fire rated to 4 hours - AS1905.1:2005.
- Pairs with 202 Series exterior plate (round corner). 25-year mechanical warranty.
Full Specifications
Item Codes
Dimensions & Technical Drawings
Plate dimension drawing - 162 x 162mm round corner profile, 10mm radius corners and cross-section details.
Standards and compliance - fire rating, Level D8 cycling test and anti-corrosion.
Functions diagram - full range of 202/203 Series plate configurations.
Ordering procedure for the 200/202 Series - plate type, function, engraving, cylinder, lever, handing and finish codes.
Helpful Tips
- Cylinder not included: This plate accepts a Lockwood 570 Series oval cylinder (32mm H x 18mm W) but the cylinder is not supplied - order separately.
- Minimum door thickness for back-to-back flush pulls: 40mm minimum when two flush pull plates are fitted back to back.
- Fixing screws not supplied: The visible fixing screws for this interior plate are not included and must be ordered separately to suit the door thickness.
- Interior plate - pairs with 202 Series: This is the inside face plate. It must be paired with a 202 Series exterior plate (round corner). The interior plate uses visible fixings; the exterior 202 plate uses concealed fixings.
- Handing: Determined by which side the hinges are on when facing the door from outside. Left hand = hinges on the left. The interior plate handing must match the exterior plate.
- Thick doors: For doors 45-55mm, order long fixing screws SP2000-208 separately.
- Non-returnable: Confirm finish and handing before ordering - this item cannot be returned once purchased.
Lockwood Warranty (Australia)
Mechanical: 25 years. Electrical/electronic: 2 years (excl. batteries).
Mechanical: 25 years. Electrical/electronic: 2 years (excl. batteries).
Finish Warranty Guide:
- Everbrass: 25 years
- Stainless Steel, Chrome & Anodised: Up to 10 years
- PVD / VIVID: 10 years
- Symmetry: 5 years
- Decorative finishes (Bronze, Antique, Powdercoat): Typically 2 years
Cosmetic finishes, batteries, normal wear and tear, misuse, unauthorised modification, corrosion and labour or freight costs are excluded.
This warranty operates in addition to rights under the Australian Consumer Law.
