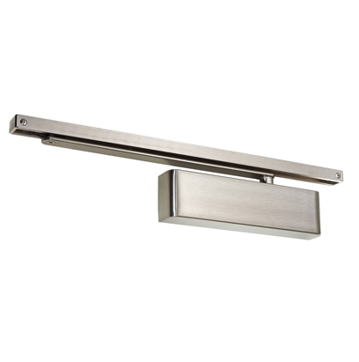

Zanda TS.9205.SRSA – Combined Slide Arm Unit, Includes Slide Armset, Semi-Radius Cover & Closer
The Zanda TS.9205.SRSA is a premium, high-efficiency mechanical door closer supplied as a combined unit with slide armset, semi-radius cover, and closer. Built for high-traffic commercial use, it offers smooth operation, long-term reliability, and an easy-opening design. With a 35-year guarantee, adjustable EN power size 2–5, and universal fitting options, it’s one of Zanda’s most specified closers. Successfully third-party tested to BS EN1154 and CE marked, it handles doors up to 1250 mm wide and 110 kg.
Key Features
- Variable EN power size 2–5 — suits doors up to 110 kg and 1250 mm wide
- Includes slide armset, semi-radius cover, and closer
- Universal application — Standard, Parallel arm, or Transom fitting positions
- Adjustable backcheck, closing speed, latch action, and delayed action
- 180° opening angle
- Optional hold open function
- Tested to BS EN1154 and CE marked
- 35-year mechanical guarantee
Specifications
- Item Code: TS.9205.SRSA
- Type: Mechanical Door Closer — Slide Arm with Semi-Radius Cover
- Power Size: EN 2–5 (adjustable)
- Max Door Width: 1250 mm
- Max Door Weight: 110 kg
- Adjustable Backcheck: Yes
- Adjustable Closing Speed: Yes
- Adjustable Latch Action: Yes
- Delayed Action: Yes
- Opening Angle: 180°
- Handing: Universal (non-handed)
- Fire Rating: Tested to BS EN1154
- Warranty: 35-Year Mechanical Guarantee
- Stocked Finishes & Codes: Antique Brass (TS.9205.SRSA.AB), Matt Black (TS.9205.SRSA.BLK), Electro/Polished Brass (TS.9205.SRSA.EB), Graphite Nickel (TS.9205.SRSA.GN), Polished Nickel / Chrome Plate (TS.9205.SRSA.PNP), Satin Brass (TS.9205.SRSA.SB), Silver (TS.9205.SRSA.SE), Satin Nickel Plate (TS.9205.SRSA.SNP), 316 Marine Grade Stainless Steel (TS.9205.SRSA.SSS), Weathered Bronze (TS.9205.SRSA.WB), Matt White (TS.9205.SRSA.WHT)
- Special Order Finishes (4–8 week lead time): Antique Copper, Light Bronze, Medium Bronze, Dark Bronze, Antique Pewter
What's In The Box
- 1 × TS.9205.SRSA Door Closer
- 1 × Slide Armset
- 1 × Semi-Radius Cover
- Fixings and installation instructions
Available Finish Options (Stocked)
-
Antique Brass
TS.9205.SRSA.AB -
Matt Black
TS.9205.SRSA.BLK -
Electro/Polished Brass
TS.9205.SRSA.EB -
Graphite Nickel
TS.9205.SRSA.GN -
Polished Nickel / Chrome Plate
TS.9205.SRSA.PNP -
Satin Brass
TS.9205.SRSA.SB -
Silver
TS.9205.SRSA.SE -
Satin Nickel Plate
TS.9205.SRSA.SNP -
316 Marine Grade Stainless Steel
TS.9205.SRSA.SSS -
Weathered Bronze
TS.9205.SRSA.WB -
Matt White
TS.9205.SRSA.WHT
Download PDF Resources
|
Zanda TS.9205 Door Closer – Spec Sheet |
|
Zanda Door Controls Catalogue |
|
Zanda Compact Catalogue |
|
Zanda Architectural Catalogue |
|
Zanda Commercial Hardware Brochure |
|
Zanda Warranty |
Zanda Warranty
Zanda Architectural products carry a limited warranty against defects in material or workmanship under normal use during the warranty period. During the warranty period, Zanda Architectural will repair or replace the product (or the defective parts) at no charge, using new or refurbished replacement parts. Warranty periods vary by product range and by component (mechanical and finish), so please check the row that matches your product below.
Warranty Summary
* Warranty periods run from the proven date of purchase and apply only when the product is properly installed and subjected to no more than fair wear and tear. See the exclusions and important notes below for full conditions.
How to Make a Claim
Zanda's warranty process starts with the reseller you purchased from. As your place of purchase, we handle the claim for you:
- Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries (the place of purchase) with your proof of purchase and the date the product was purchased.
- Provide a clear description of the fault, along with the product range and model.
- We complete the necessary claim forms and process the claim with Zanda Architectural on your behalf. You may be asked to return the product for assessment.
- If the product is found to be defective under the warranty terms, Zanda will repair or replace it at no charge, using new or refurbished parts.
Exclusions
A warranty claim cannot be accepted for damage unless it resulted from a defect in Zanda's materials and workmanship. The following are expressly excluded:
- Surface damage occurring after purchase and not caused by defects in materials and workmanship.
- Misuse, neglect or accidental damage.
- Failure to maintain and care for the product.
- Defects or damage caused by using the product for a purpose other than that for which it was designed, such as commercial use.
- Defects or damage caused by improper installation.
- Damage caused by batteries.
- Modification and/or alteration to the product.
- Discolouration and scratches to finishes through normal use and ageing.
- Replacement of batteries.
- Normal wear and tear.
This guarantee does not extend to labour costs, freight, personal loss, death or injury, or economic, consequential or property damage of any kind. The warranty also excludes extreme environments where heat, weather and salty conditions are prevalent, and does not cover products that have not been properly maintained.
Important Notes
The products covered by this warranty are designed for residential use only - any other use (including commercial use) voids the warranty. This is a parts-only warranty: it does not cover labour costs for product removal and reinstallation.
Proper maintenance, care, cleaning and polishing in accordance with Zanda's instructions are essential to retain a product's finish - particularly soft finishes or finishes that naturally age, such as Brushed Nickel, Satin Chrome, Polished Brass, Graphite Nickel, Matt Chrome, Unlacquered Brass, Matt Brass, Rumbled Brass, Roman Brass, Natural Bronze, Oil Rubbed, Satin Brass, Brushed Bronze, Antique Bronze, Buffed Bronze, Matt Antique Bronze, Venetian Bronze and Powdercoat. These finishes are subject to deterioration, corrosion and oxidation from conditions such as salt deposits, scratches from sharp objects, paint thinners and caustic agents. For care of stainless steel products, see the ASSDA guidance on preventing coastal corrosion and tea staining.
This is a limited, express warranty and is provided in addition to your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Nothing in this express warranty limits or restricts any other statutory right or remedy available to you.
