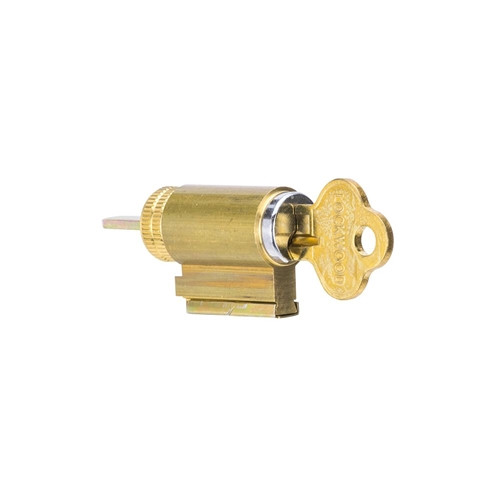

Lockwood Symmetry Series 1 Cylinder Assembly – 5-Pin Restricted Profile
The Lockwood Symmetry Series 1 Cylinder Assembly is a replacement cylinder component designed for use with Lockwood Symmetry knob and lever locksets. This cylinder accepts standard Lockwood C4 5-pin brass cylinders and supports 6-pin configurations, providing secure keying solutions for residential and commercial door hardware installations.
The cylinder assembly is compatible with the OneCyl interchangeable cylinder platform, allowing for simplified rekeying and master key system integration without replacing the entire lockset. This feature is particularly valuable for multi-door projects, building management applications, and situations where keying changes are anticipated over time.
Supplied in packs of 10 units, this cylinder assembly is suitable for bulk installations, trade projects, and facility maintenance operations where multiple locksets require cylinder replacement or upgrade. The horizontal mounting screw fixing method provides straightforward installation and is compatible with both left and right-handed door configurations.
Estimated Warehouse Dispatch
Usually ships in 4 business days
Usually ships in 4 business days
Non-Returnable Item
This product is non-returnable due to security and keying restrictions. Please confirm compatibility with your Lockwood Symmetry lockset before ordering.
This product is non-returnable due to security and keying restrictions. Please confirm compatibility with your Lockwood Symmetry lockset before ordering.
Available Finish Options
Chrome Plate
Polished Brass
Finish selection should match existing Lockwood Symmetry lockset trim. Finish does not affect cylinder function or keying compatibility.
Key Features
- Designed specifically for Lockwood Symmetry Series knob and lever locksets.
- Accepts standard Lockwood C4 5-pin brass cylinders with 6-pin capability.
- Compatible with OneCyl interchangeable cylinder platform for simplified rekeying.
- 5-pin restricted profile keying for enhanced key control and security.
- Supplied in packs of 10 units for efficient multi-door installations.
- Horizontal mounting screw fixings for straightforward installation.
- Suitable for both left-handed and right-handed door configurations.
- Replacement component for maintenance, upgrade, or keying system changes.
- Compatible with residential and commercial Lockwood Symmetry applications.
What's in the Box
- 10 x Lockwood Symmetry Series 1 Cylinder assemblies
- Mounting hardware (per cylinder)
Suitable Uses
- Replacement cylinders for existing Lockwood Symmetry locksets
- Multi-door residential projects requiring matched keying
- Commercial building fit-outs with Lockwood Symmetry hardware
- Rekeying projects using OneCyl interchangeable cylinder system
- Master key system installations and upgrades
- Building management cylinder replacement programs
- Trade and contractor bulk cylinder installations
- Facility maintenance spare parts inventory
Full Specifications
Frequently Asked Questions
- Will this cylinder fit my existing Lockwood lockset?
This cylinder is designed specifically for Lockwood Symmetry Series knob and lever locksets only. It is not compatible with other Lockwood series such as 001, 002, 3570, 3582, or non-Symmetry products. Verify your lockset is from the Symmetry range before ordering. - What does "restricted profile" mean for keying?
A restricted profile keying system limits key blank availability to authorised dealers and locksmiths, providing enhanced key control. Replacement keys cannot be cut at standard key cutting services and require authorisation from the registered key holder. This helps prevent unauthorised key duplication. - Can I rekey this cylinder myself or do I need a locksmith?
Rekeying Lockwood restricted profile cylinders requires specialised tools, pinning kits, and authorisation documentation. Professional locksmith service is required for rekeying operations. However, if your system uses OneCyl interchangeable cores, cylinder replacement can be performed by building maintenance staff with appropriate training. - What is the OneCyl system and how does it work?
OneCyl is Lockwood's interchangeable cylinder platform that allows cylinder cores to be removed and replaced without dismounting the entire lockset. This simplifies rekeying, reduces labour costs, and minimises building disruption during key system changes. A control key is required to remove and install OneCyl cores. - Why is this product sold in packs of 10?
Cylinder assemblies are typically required in quantity for multi-door installations, building fit-outs, or facility management operations where multiple locksets need cylinder replacement. The pack of 10 format provides cost efficiency for trade and bulk applications while ensuring finish and keying consistency across installations.
Additional Information
- Lockwood Symmetry Series Compatibility:
The Symmetry Series represents Lockwood's residential and light commercial door hardware range. This cylinder assembly is engineered specifically for Symmetry knob and lever locksets and is not cross-compatible with other Lockwood lock families. Attempting to fit this cylinder to non-Symmetry locksets will result in improper function and potential damage. - C4 Cylinder Platform:
The C4 designation refers to Lockwood's standard commercial cylinder format used across multiple product lines. C4 cylinders feature a 5-pin tumbler configuration as standard, with the mechanical capability to accept 6-pin configurations for enhanced security applications. The cylinder bore and spring chamber dimensions are standardised across the C4 platform. - Restricted Profile Key Control:
The 5-pin restricted profile (5RP) provides an additional layer of security through controlled key blank distribution. Key blanks are supplied only to registered dealers and locksmiths who maintain authorisation records. This system prevents casual key duplication but requires proper registration and documentation for legitimate key replacement needs. - Installation Considerations:
Installation requires removing the existing cylinder from the Symmetry lockset and installing the replacement cylinder using the horizontal mounting screws. Proper alignment of the cylinder tailpiece with the lockset mechanism is critical for correct operation. The cylinder must engage the bolt mechanism without binding or excessive play. - Master Keying and Keying Schedules:
These cylinders support master key system configurations where a hierarchy of key access is required. Master keying requires professional locksmith service to create appropriate pinning arrangements. For multi-building or complex facility applications, a formal keying schedule document should be maintained to track cylinder locations and key distribution. - OneCyl Interchangeable Core System:
The OneCyl system allows building operators to change locks without locksmith attendance by removing the cylinder core with a control key and installing a pre-keyed replacement core. This reduces rekeying costs and enables immediate response to security events such as lost keys or staff changes. The control key itself must be secured to prevent unauthorised cylinder removal. - Finish Matching:
Cylinder finish should match the existing Lockwood Symmetry lockset trim for aesthetic consistency. Chrome Plate finish is suitable for contemporary and commercial applications, while Polished Brass provides a traditional appearance. Finish does not affect mechanical function or security performance but may be subject to different warranty coverage periods. - Non-Returnable Policy Rationale:
Cylinder assemblies are non-returnable due to security protocols governing keyed components. Once a cylinder has left secure storage, it cannot be confirmed that key control has been maintained or that the cylinder has not been compromised. This policy protects both the end user and the distribution chain from potential security vulnerabilities. - Bulk Purchase and Project Pricing:
The pack of 10 format is designed for trade, contractor, and facility management applications. For larger projects requiring significant quantities, contact Gold Coast Hardware for project pricing and keying coordination services. Bulk orders can often be pre-keyed to a specific key code or master key system before dispatch.
Lockwood Warranty (Australia)
Lockwood branded products purchased new in Australia from authorised resellers are covered against defects in materials and workmanship for:
Lockwood branded products purchased new in Australia from authorised resellers are covered against defects in materials and workmanship for:
- Mechanical components: 25 years
- Chrome and Polished Brass finishes: Refer to Lockwood warranty schedule
Warranty excludes cosmetic finishes, normal wear and tear, misuse, unauthorised modification, and labour or freight costs. Cylinders must be installed by qualified personnel to maintain warranty validity.
This warranty operates in addition to rights available under the Australian Consumer Law.
Lockwood Warranty Overview
Lockwood branded products are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty periods vary depending on product type, mechanical components, electrical elements, and finish category.
This overview summarises the structure of Lockwood warranty coverage. Full terms, exclusions and claim procedures are set out in the official Lockwood Warranty document.
Warranty Periods Summary
Finish Coverage Guide
- Everbrass finishes: up to 25 years against corrosion, tarnishing and discolouration.
- Stainless steel, polished stainless steel, chrome plating and anodised finishes: typically up to 10 years.
- Decorative finishes including Antique Copper, Architectural Bronze, Oil Rubbed Bronze, Aged Brass, Polished Brass, Satin Brass and related variants: typically up to 2 years against corrosion.
- Unlacquered brass finishes will naturally age and change appearance over time. This is not considered a defect.
- Tea staining of stainless steel is not covered where cleaning and maintenance have not been followed.
What the Warranty Covers
- Defects in material and workmanship during the applicable warranty period.
- Assessment by ASSA ABLOY to determine repair, replacement with the same or closest equivalent product, or refund of purchase price.
Common Exclusions
- Normal wear and tear.
- Misuse, abuse, accidental damage or use outside published specifications.
- Improper maintenance or failure to follow care instructions.
- Unauthorised modification, repair or use of non-genuine parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or pollution.
- Removal, refitment or associated labour charges.
- Products not originally sold in Australia through authorised channels.
Warranty Claim Process
- Retain proof of original purchase.
- Return the product through the original place of purchase where applicable.
- If claiming directly, obtain a case number before returning goods.
- Products must be securely packed and clearly identified.
- Warranty assessment determines repair, replacement or refund.
Australian Consumer Law
Lockwood warranties operate in addition to rights available under the Australian Consumer Law. Goods come with guarantees that cannot be excluded. Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage.
Where a product fails to meet acceptable quality standards and the failure does not amount to a major failure, the customer is entitled to repair or replacement.
Official Warranty Document
