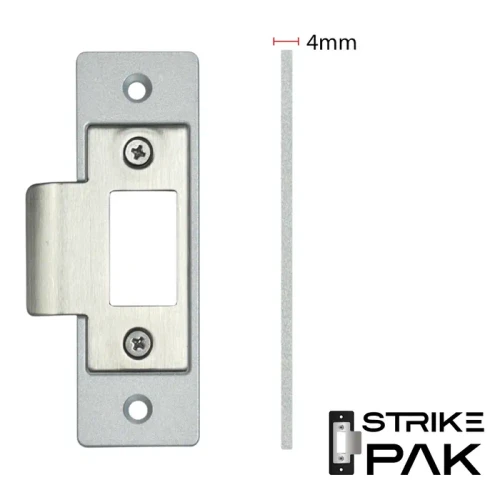

Lockton StrikePakā¢ Main Strike Plate Kit (4mm Thick) - Silver
The Lockton STPK-MP4-SIL StrikePakā¢ Main Strike Plate Kit in Silver is the core component of the StrikePak system - a modular, stackable packer arrangement that bridges oversized gaps between the door and frame so the latch engages the strike reliably.
The kit combines a 4mm anodised aluminium main packer plate with a matching satin stainless steel strike plate (STML60-STD) and a full screw pack covering both timber and metal frame installations. It is designed specifically for Australian mortice locks, including narrow-stile and 60mm body formats, and suits 23, 30, 60 and 95mm backset lock bodies.
Where the door-to-frame gap exceeds 4mm, StrikePakā¢ Extra Packers in 2mm, 4mm and 8mm thicknesses stack behind the main plate for precise on-site adjustment - see the item code family table below.
Key Features
- Complete main kit - packer plate, matching strike plate and full screw pack in one part number
- Modular stackable design - combine with StrikePakā¢ 2mm, 4mm and 8mm extra packers to match the measured gap
- Suits Australian mortice locks, including narrow-stile and 60mm body formats
- Screw pack covers both timber and metal door frames
- Anodised aluminium packer with a stainless steel strike plate for long service life
What's in the Box
- 1 x StrikePakā¢ Mainplate (4mm)
- 1 x STML60-STD Standard Strike Plate
- 2 x Strike Plate Fixing Screws
- 2 x Long Timber Screws (40mm)
- 2 x Short Timber Screws (30mm)
- 2 x Long Self-Tapping Metal Thread Screws (40mm)
- 2 x Short Self-Tapping Metal Thread Screws (30mm)
Suitable Uses
- Doors where the latch no longer reaches the strike after re-hanging, frame movement or seasonal timber shift
- Retrofits where planing, new weather seals or replacement hinges have widened the door-to-frame gap
- Timber and metal frame installations - the main kit screw pack covers both
- Residential and light commercial doors fitted with Australian mortice locks (23, 30, 60 and 95mm backsets)
Available Finish Options
Silver
(This Product)
STK STPK-MP4-SIL
Black
STK STPK-MP4-BLK
Finish selection does not affect functionality, compliance, or performance.
StrikePakā¢ Item Code Family
| Item Code | Product | Role in the StrikePakā¢ System |
|---|---|---|
| STK STPK-MP4-SIL | Lockton StrikePakā¢ Main Strike Plate Kit - Silver (This Product) | 4mm main packer, strike plate and full screw pack - the required base kit |
| STK STPK-PE2-SIL | Lockton StrikePakā¢ PE2 Extra Packer - Silver | 2mm packer plate - fine adjustment, stacks behind the main plate |
| STK STPK-PE4-SIL | Lockton StrikePakā¢ PE4 Extra Packer - Silver | 4mm packer plate - stacks behind the main plate |
| STK STPK-PE8-SIL | Lockton StrikePakā¢ PE8 Extra Packer - Silver | 8mm packer plate - largest single-plate offset, stacks behind the main plate |
All StrikePakā¢ parts listed above are shown in the Silver finish - each is also available in Black.
Full Specifications
| Strike Plate Material | Stainless Steel |
| Packer Plate Material | Anodised Aluminium |
| Strike Plate Finish | Satin Stainless Steel |
| Packer Finish | Silver |
| Dimensions (H x W x D) | 90.8 x 32.4 x 4mm |
| Suits | 23, 30, 60 and 95mm backset Australian mortice locks |
| Warranty | 10 years (see warranty callout below) |
Frequently Asked Questions
It is designed for Australian mortice locks with 23, 30, 60 and 95mm backsets, including narrow-stile and 60mm body formats. Check that your lock's strike footprint matches the 90.8 x 32.4mm plate before ordering.
Yes. The screw pack includes both timber screws and self-tapping metal thread screws, each in 30mm and 40mm lengths.
Close the door and measure the distance between the latch face and the strike on the frame. Choose the main kit plus extra packers that together come closest to that measurement without exceeding it.
Lockton does not publish a fire rating for the StrikePakā¢ range. On a fire-rated doorset, any change to the strike arrangement should be confirmed with your certifier before installation.
Additional Information
Measure before you order: with the door closed, the gap between the latch face and the existing strike tells you the total packing thickness required. A latch that only just catches the strike is a common source of callbacks - doors flex in service, so aim for full, positive engagement rather than a marginal fit.
Packers stack behind the main plate against the frame, with the strike plate outermost. After stacking, check that the screws still achieve solid purchase in the frame - the 40mm screws in the main kit are intended for deeper stacked assemblies. The anodised aluminium plates will not rust, which makes the system suitable for coastal Gold Coast conditions where plated steel packers commonly corrode.
Warranty
Lockton products carry tiered manufacturer warranties - up to 10 years on mechanical locks, 3 years on smart locks and PVD/chrome finishes, and 1 year on electronic door closers, mechanical digital locks, and key accessories. Batteries carry no warranty. Proof of purchase required for all claims. Returns & Warranty | Lockton Warranty Statement
What's in the Box - Lockton StrikePakā¢ Main Strike Plate Kit (4mm Thick) - Silver
- 1 x StrikePakā¢ Mainplate (4mm)
- 1 x STML60-STD Standard Strike Plate
- 2 x Strike Plate Fixing Screws
- 2 x Long Timber Screws (40mm)
- 2 x Short Timber Screws (30mm)
- 2 x Long Self-Tapping Metal Thread Screws (40mm)
- 2 x Short Self-Tapping Metal Thread Screws (30mm)
StrikePakā¢ Extra Packers in 2mm, 4mm and 8mm thicknesses are sold separately and stack behind this main plate - see the item code family table on the main description.
