Kaba Lock Escape Less Cylinder 37mm Bolt Includes SB312 – Satin Chrome Pearl
The dormakaba 950 Series swing bolt deadlock is designed for narrow stile hinged or pivoted doors, providing positive deadbolt action operated via a BCA compliant lever. It can also be used on sliding door applications where the lock is installed to the door jamb and the bolt engages a strike mounted in the face of the door.
This model provides a 37 mm bolt projection and is supplied less cylinder, with escutcheon and cam included, plus an AS1428 case fixed escape turn.
Key Features
- 950 Series swing bolt deadlock for narrow stile door frames.
- Suitable for hinged or pivoted doors, and selected sliding door jamb installs.
- 37 mm laminated bolt projection.

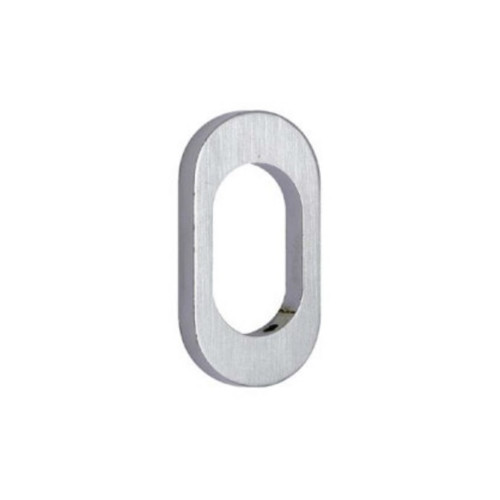

- Supplied less cylinder, with escutcheon and cam included.
- Supplied with AS1428 case fixed escape turn.
- Includes mounting hardware.
- Satin Chrome Pearl finish.
Specifications
- Item Code: BO950L37SC
- Brand: Dormakaba
- Product Type: Swing bolt deadlock (escape function)
- Handing: Non-handed
- Assembly Form: Less cylinder
- Backset: 23 mm
- Bolt Projection: 37 mm
- Case Size: 181 mm (H) x 36 mm (D)
- Face Plate: 155.5 mm (L) x 25 mm (W) aluminium fabricator face plate
- Includes Escutcheons: Yes
- Includes Escape Turn: Yes (AS1428 case fixed escape turn)
- Finish: Satin Chrome Pearl
What's In The Box
- 1 x dormakaba 950 Series swing bolt deadlock body (less cylinder)
- Escutcheon and cam (as supplied)
- AS1428 case fixed escape turn
- Mounting hardware
- SB312 (as specified)
Suitable Uses
- Narrow stile hinged or pivoted doors requiring a swing bolt deadlock.
- Sliding door jamb installations where the bolt engages a strike in the door face.
- Projects requiring an escape function with a case fixed escape turn.
Dimensions
Frequently Asked Questions
- Does this lock include a cylinder?
No. This model is supplied less cylinder. It includes an escutcheon and cam as supplied. - Can this be used on sliding doors?
Yes, it is suitable where the lock is installed to the door jamb and the bolt engages a strike mounted in the face of the door. - What is the bolt projection on this model?
This model provides a 37 mm bolt projection.
Additional Information
- When specifying the cylinder, confirm suitability for the lock configuration and key system requirements.
- For sliding door installs, verify the strike position and door face engagement depth before drilling.
- Narrow stile door applications typically require careful checking of backset and face plate clearance.
