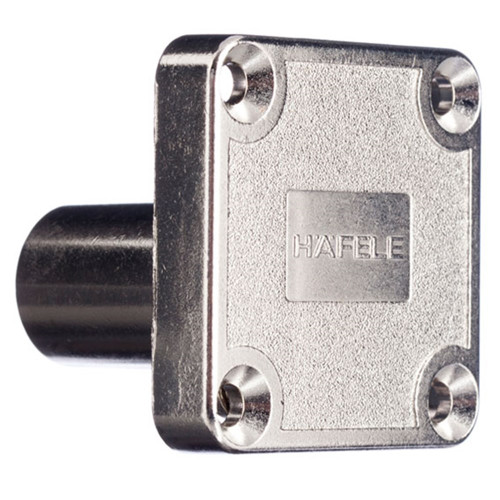

Häfele Symo Lock Body with Long Throw Bolt – Drawer Version – Nickel Plate
The Häfele Symo 3000 drawer lock body with long throw bolt is designed for applications requiring increased bolt projection for improved engagement. This model features a 25mm backset and an extended 25mm bolt travel.
Constructed from zinc diecast and finished in nickel plate, the lock body is supplied with a cylinder rose and is designed for use with compatible Symo 3000 interchangeable cores.
Key Features
- Symo 3000 drawer lock body with long throw bolt.
- 25mm backset with extended 25mm bolt travel.
- Left hand locking direction.
- 22mm cylinder housing length.
- Screw fix mounting.
- Zinc diecast body construction.
- Supplied with cylinder rose.
- Nickel Plate finish.
Specifications
- Item Code: HA23225621
- Häfele Catalogue Code: 232.25.621
- Product Type: Drawer lock body
- Series: Symo 3000
- Handing: Left hand
- Backset: 25mm
- Bolt Travel: 25mm
- Base Dimensions: 42mm × 42mm
- Cylinder Housing Length: 22mm
- Cylinder Housing Diameter: 18mm
- Material: Zinc diecast
- Mounting: Screw fix
- Barrel Exchange: Yes
- Finish: Nickel Plate
What's In The Box
- 1 × Symo 3000 lock body with long throw bolt
- 1 × cylinder rose
Suitable Uses
- Office drawers requiring deeper bolt engagement.
- Commercial furniture using Symo interchangeable cores.
- Replacement lock bodies where a longer bolt throw is required.
Dimensions
Frequently Asked Questions
- Does this include the lock core?
No. This is the lock body only. A compatible Symo 3000 core must be ordered separately. - Why choose a long throw bolt?
A longer bolt travel provides deeper engagement with the strike, which can improve security and alignment in some drawer applications. - Can the cylinder be replaced?
Yes. This lock body is designed for interchangeable Symo cores.
Additional Information
- Long throw drawer locks are often specified where there is a larger gap between the drawer front and cabinet frame.
- Always confirm cylinder housing length and handing before ordering replacement lock bodies.
- Symo interchangeable core systems allow quick re-keying without removing the lock body.
