Available Variants: Door Height -
DORMA PHB3000 exit device.

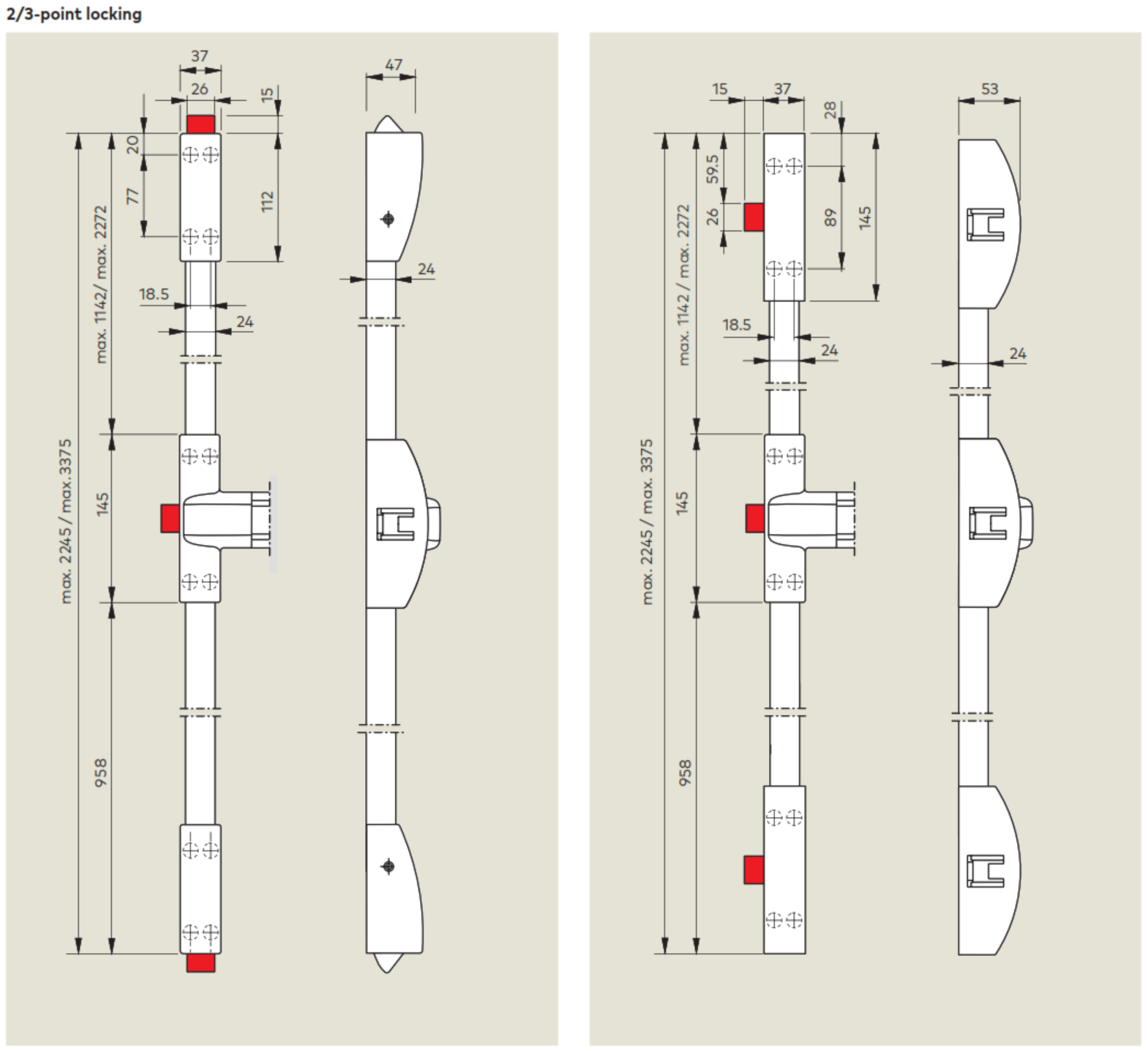

This model PHB306C is a 3 point modular set with steel latch, steel latch keeper & security anti thrust latch.

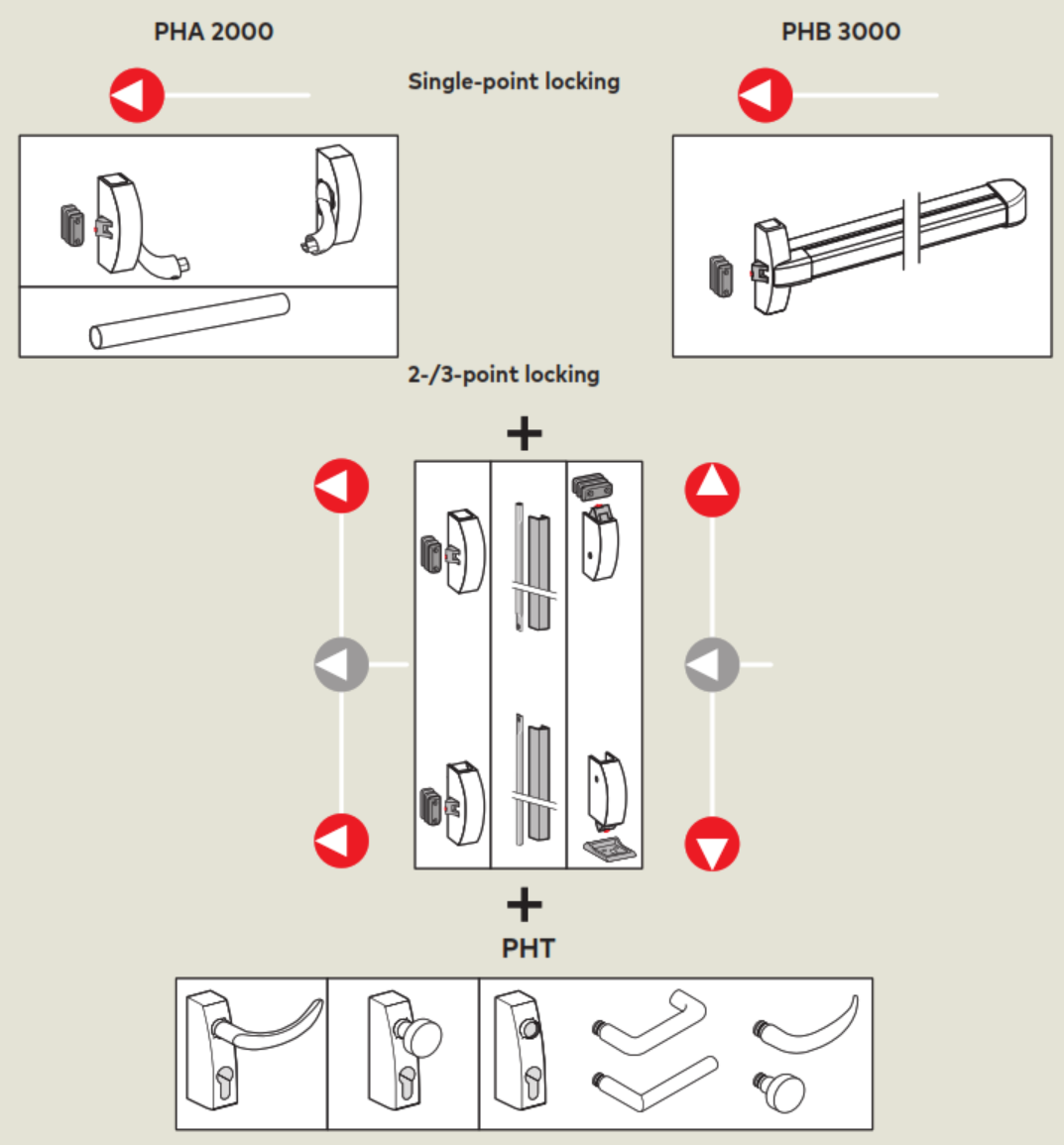

Crossbar combined with the universally applicable PHT external fittings, suiting not only narrow-stile doors but also timber and similar full-face doors.
The wide security latchbolt engages in a keeper that is normally mounted on the frame ensuring that the latch is extremely easy to mount and that the door is also securely locked.
Approved for use on single fire and smoke check doors.
Max. door leaf weight is 200kg, max. door width of 1000mm & max. door height of 2270mm.
It comprises of PHB3104, PHX03 & PHX04.
Installation example
TBA
Doors higher than 2500 mm lie outside the scope of EN 1125.
Fire Rated: Yes
Maximum Weight in kg: 200
Maximum Door Leaf Height in mm: 2270
Maximum Door Leaf Width in mm: 1000
