Dormakaba PHB 1 & 2 Point Modular Fire Rated Panic Exit Device - Double Door Set - Silver

Dormakaba PHB 1 & 2 Point Modular Fire Rated Panic Exit Device - Double Door Set - Silver

Dormakaba

$1,948.83 - $2,064.67
(No reviews yet) Write a Review
SKU:
STK PHB308C PHB308HC PHB308WC
UPC:
6676443157837
Availability:
Usually same day dispatch (if ordered before 11am)
Adding to cart… The item has been added
Dormakaba logo

Dormakaba PHB 1 & 2 Point Modular Fire Rated Panic Exit Device – Double Door Set

Dormakaba PHB 3000 series panic exit device configured as a modular 1-point (active leaf) and 2-point (inactive leaf) double door set. Designed for public buildings where panic situations may occur, this system complies with EN 1125 and is approved for use on fire and smoke check doors when installed as part of a certified doorset.

Key Features

  • EN 1125 compliant panic exit device with push bar operation.
  • Modular configuration for double doors with active and inactive leaves.
  • Steel latch, steel latch keeper and security anti-thrust latch.
  • Compatible with PHT external fittings for narrow-stile, timber and full-face doors.

Fire Rated

  • Approved for use on single fire and smoke check doors.
  • Fire performance is dependent on the complete certified doorset.
  • Dogging is not permitted on fire or smoke doors.

Specifications

System Dormakaba PHB 3000
Standard EN 1125 (panic exit)

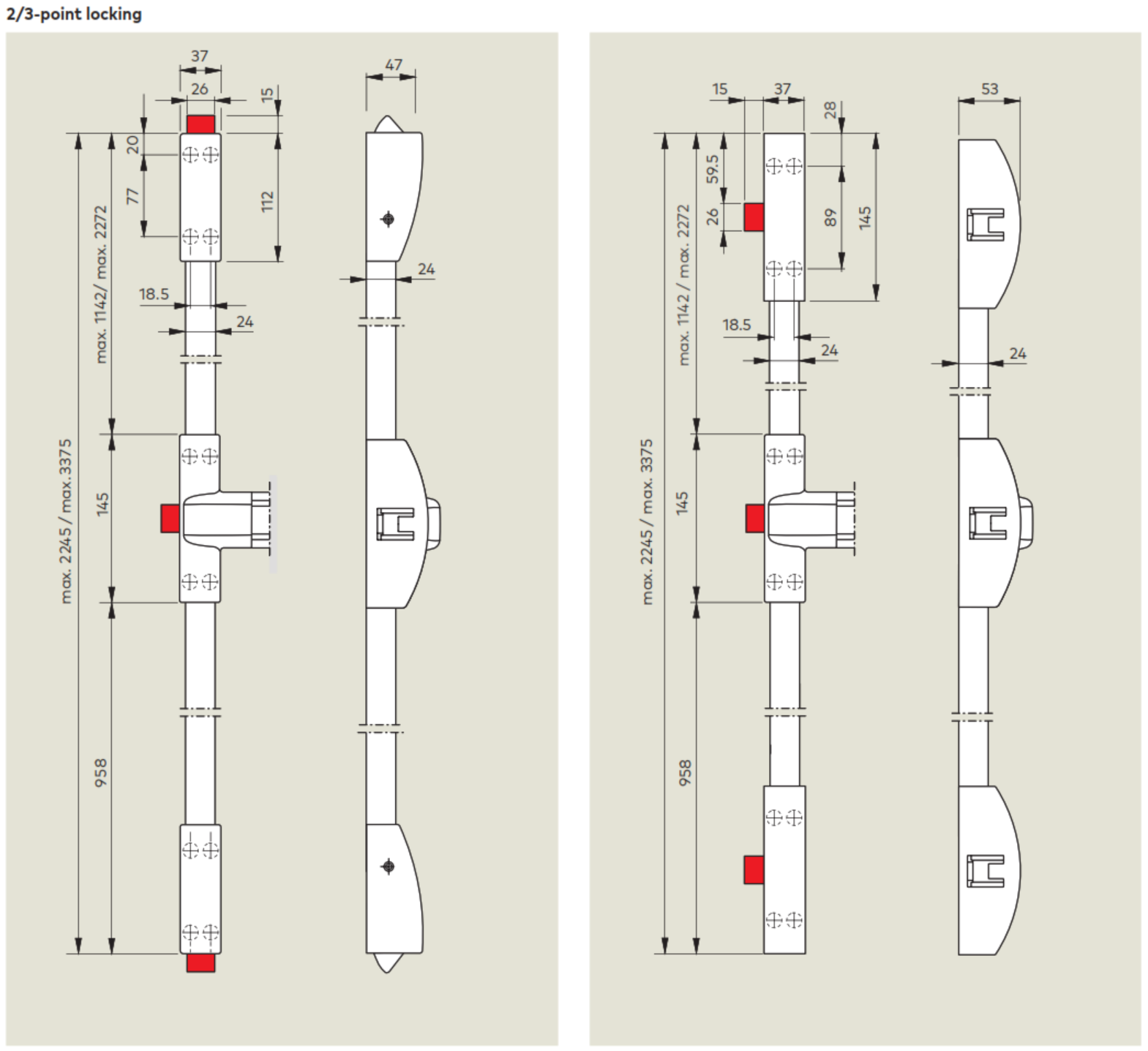

Locking Configuration 1-point (active leaf) / 2-point (inactive leaf)
Maximum Door Weight 200 kg
Door Leaf Width Up to 1000 mm or 1300 mm (variant dependent)
Door Leaf Height Up to 2270 mm or 3400 mm (variant dependent)

.

What's In The Box

  • PHB 3000 push bar assemblies
  • Steel latch and latch keeper
  • Security anti-thrust latch
  • PHX vertical locking components (variant dependent)

Suitable Uses

  • Public buildings with panic exit requirements
  • Fire and smoke compartment doors
  • Commercial and institutional facilities

Available Variants

Item Code Max Door Width Max Door Height
PHB308C 1000 mm 2270 mm
PHB308HC 1000 mm 3400 mm*
PHB308WC 1300 mm 2270 mm

*Door heights above 2500 mm fall outside the scope of EN 1125.

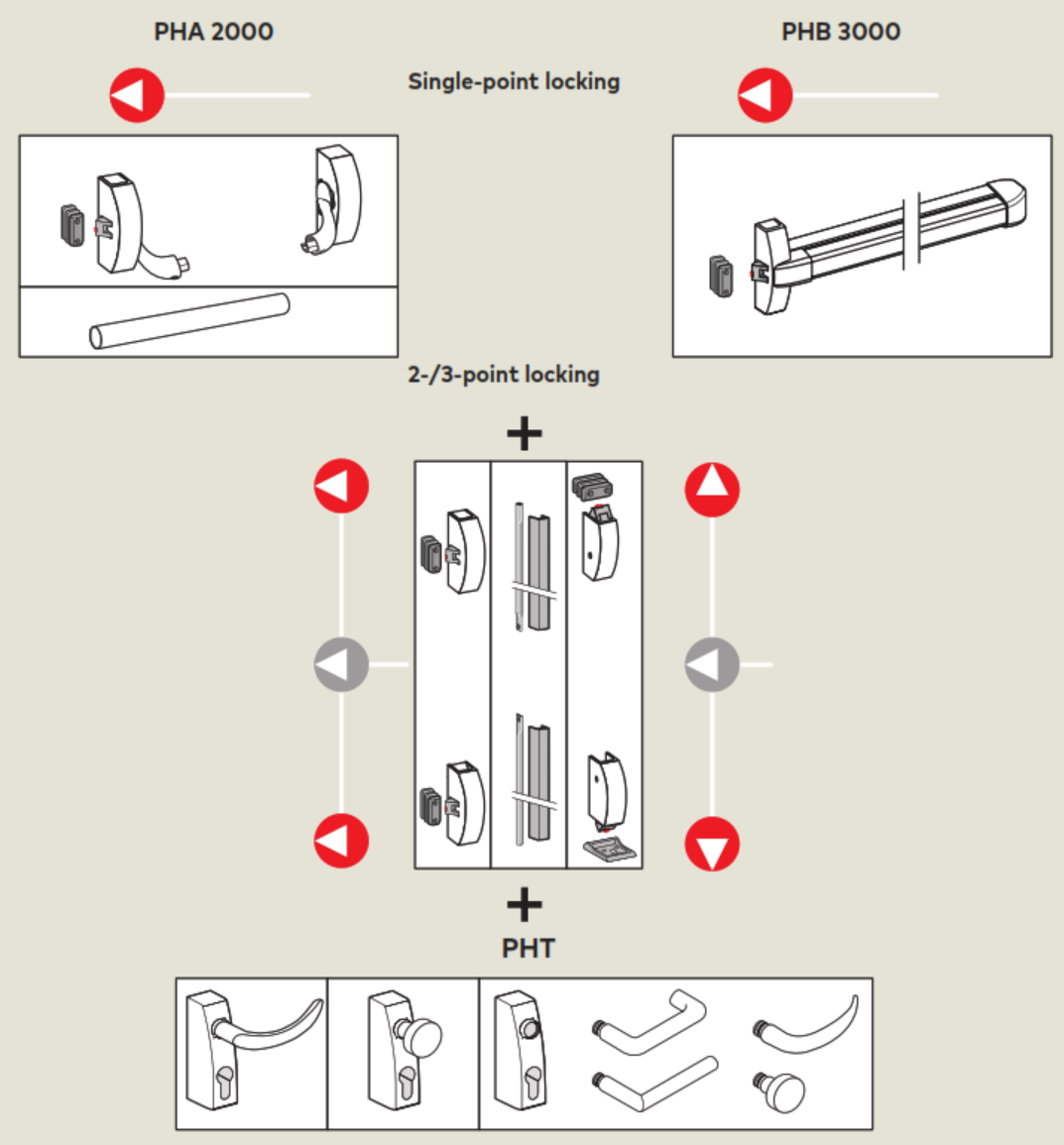

Item Code Family

System Exit Type Standard
PHB 3000 Panic push bar EN 1125
PHA 2000 Panic crossbar EN 1125
Exit Pad Emergency exit device EN 179

Download PDF Resources

Frequently Asked Questions

Is this suitable for panic situations?
Yes, this device complies with EN 1125 and is intended for use where panic may occur.

Can this be installed on fire doors?
Yes, when installed as part of a certified fire and smoke doorset.

Can door height exceed 2500 mm?
Yes, but doors above 2500 mm fall outside the scope of EN 1125.

Additional Information

  • External trims, microswitches and glass kits are selected separately.
  • Door coordinators are required for rebated double doors with closers.
  • Correct PHX configuration must be selected based on door height.

!
