Dormakaba Furniture Narrow Square End Plate Visible Fix with Noosa Lever - Satin Stainless Steel

Dormakaba

$99.51 - $155.73
(No reviews yet) Write a Review
SKU:
STK DO640130SSS DO640630SSS
UPC:
7738652435243
Availability:
Usually same day dispatch (if ordered before 11am)
Adding to cart… The item has been added
Dormakaba logo

Dormakaba 6400 Series Narrow Square End Plate – Visible Fix – Noosa Lever

Dormakaba 6400 series narrow square end plate door furniture designed for internal commercial applications. This visible fix plate is supplied with a Noosa series lever and is commonly specified for aluminium and narrow stile doors using compatible Dormakaba mortice locks.

Key Features

  • Narrow square end plate format suited to aluminium and narrow stile doors.
  • Visible fixing for straightforward installation and servicing.
  • Supplied with AS1428.1 compliant Noosa lever.
  • Manufactured from solid 316 grade stainless steel.

Disability Act Compliance

  • Supplied with AS1428.1 compliant lever suitable for accessible applications.

Fire Rated

  • 6400 series plate furniture is fire rated to AS1905.1 Part 1 when installed as part of a compliant doorset.

Specifications

Series Dormakaba 6400
Plate Type Narrow square end plate
Fixing Method Visible fixing
Material 316 grade stainless steel

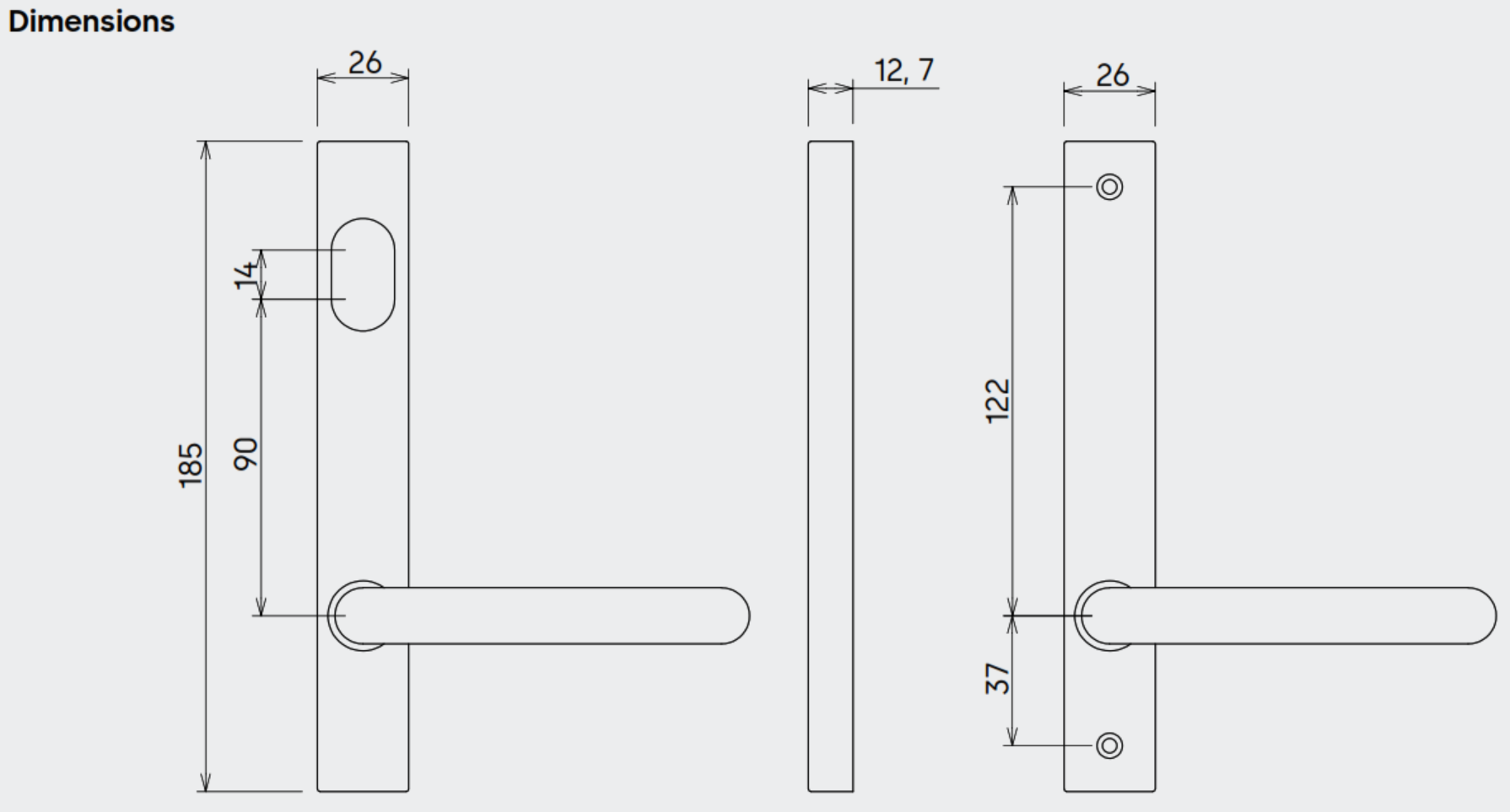

Plate Dimensions 185 x 26 x 12.7 mm
Door Thickness 32–50 mm
Fixing Centres 160 mm

What's In The Box

  • 1 x Internal narrow square end plate with Noosa lever
  • Fixing screws

Suitable Uses

  • Internal commercial doors
  • Aluminium and narrow stile door applications
  • Doors requiring compliant lever operation

Available Variants

Item Code Cylinder Hole
DO640130SSS With oval cylinder hole
DO640630SSS Without cylinder hole

Item Code Family

Plate Series Fixing Style Primary Application
6400 Series Visible fix narrow square end plate Short backset narrow stile mortice locks
6500 Series Visible fix narrow round end plate Architectural narrow stile applications
6600 Series Visible fix square end plate Standard backset commercial mortice locks
6700 Series Visible fix round end plate Architectural commercial door furniture

Download PDF Resources

Frequently Asked Questions

Is this plate suitable for external doors?
No, this product is intended for internal door applications only.

Is the lever handed?
Most 6400 series levers are non-handed. Some lever designs require handing to be specified at time of order.

Can this plate be used with other lock brands?
It is designed to suit compatible Dormakaba narrow stile mortice locks. Compatibility with other brands is not confirmed.

Additional Information

  • 6400 series visible fix plates are commonly specified where easy access to fixings is required.
  • Internal and external plates are typically paired back-to-back to suit the required door function.
  • Confirm lock backset compatibility before installation.

dormakaba Warranty

dormakaba Australia Pty Ltd (ABN 14 067 969 466) provides the following warranty on all dormakaba branded products sold in Australia. This warranty is in addition to, and does not limit, your rights under the Australian Consumer Law.

Warranty Summary

Warranty Provider dormakaba Australia Pty Ltd (ABN 14 067 969 466)
Coverage Region Australia
Warranty Starts Date of purchase
Registration Required No
Mechanical Products (general) 10 years
Digital Door Locks � electronic components 1 year
Electric Locks � electronic components 1 year
Electric Strikes 5 years
Hinges 2 years
Safe Locks 2 years
Entrance Control / Access Systems 2 years
Push Button Locks 2 years from date of manufacture
Interior Glass Systems � mechanical 2 years
Automatic Operators 2 years (labour: 1 year from installation by dormakaba technician or authorised representative)
EL301 & AL401 Automatic Operators � motor & gearbox 10 years when serviced in accordance with AS5007
Powder Coated Finishes 1 year (leading edges: no warranty)
Electroplated Finishes 1 year
PVD (Physical Vapour Deposition) Finishes 10 years
Plated Finishes (black chrome, satin chrome, polished chrome, oiled nickel, bronze, polished bronze) No warranty � deterioration is anticipated under some climatic conditions
Batteries (Electric Mortice Locks & Digital Door Locks) No warranty

How to Make a Claim

For full returns and warranty claim procedures, visit our Returns & Warranty page � this is kept up to date and is the authoritative reference for current claim steps.
  1. Report the defect promptly. Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries (including Gold Coast Smart Locks) as your point of sale in the first instance. Claims must be lodged no later than 1 month from the date the defect becomes obvious.
  2. Prepare your documentation. You will need proof of purchase (invoice or receipt), the date of delivery or installation, your name and address, and any maintenance records relevant to the product.
  3. Make the product available for inspection. dormakaba requires adequate access to the goods, fittings, and fixtures to assess any warranty claim and carry out repairs. If no fault is found, dormakaba's standard costs for inspection, service, and testing apply.
  4. Warranty work is conducted during normal business hours � 8:00am to 5:00pm, Monday to Friday.

Note: The expense of making a warranty claim (including transport and access costs) is borne by the purchaser.

Exclusions

This warranty does not cover:

  • Damage or defects caused by misuse, abuse, neglect, or failure to follow dormakaba's selection, installation, and maintenance instructions
  • Fair wear and tear
  • Damage arising from installation not carried out by dormakaba or its authorised agents
  • Damage caused to the structures the product is installed in, where installation was not by dormakaba or its authorised agents
  • Damage caused by circumstances beyond dormakaba's control
  • Defects within acceptable industry variances
  • Products used other than for their intended purpose
  • Damage from exposure to abnormal conditions, including but not limited to extreme temperature, water, fire, humidity, pressure, or stress
  • Products that have been modified, built on, or repaired by a third party
  • Products not maintained in accordance with dormakaba's care, cleaning, and maintenance instructions (as amended from time to time on the dormakaba website)
  • Routine maintenance items (the purchaser's responsibility)
  • Products installed, maintained, or operated other than in accordance with dormakaba's instructions
  • Overhaul, replacement, or repair work carried out prior to dormakaba's approval of a warranty claim

Important Notes

Australian Consumer Law
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure, and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure. Nothing in this warranty limits or excludes these statutory rights.
Replacement & Repair
dormakaba reserves the right to replace defective parts with components of similar quality, grade, and composition where an identical part is unavailable. Refurbished parts or goods of the same type may be used. For discontinued or unavailable products, dormakaba may substitute an equivalent current product. All products replaced under warranty become the property of dormakaba.
