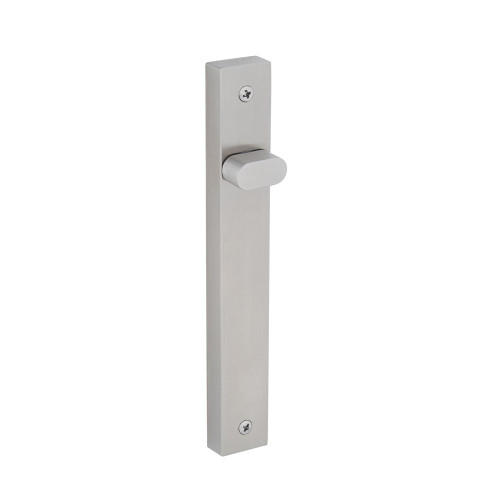

Dormakaba Furniture Narrow Square End Plate Visible Fix with Turnsnib and Noosa Lever – Satin Stainless Steel
Key Features
- Narrow internal square end plate with integrated Noosa lever and turnsnib.
- Designed for use with compatible dormakaba mortice locks.
- AS1428.1 compliant lever profile for accessible installations.
- Manufactured from solid 316 grade stainless steel.
- Visible fixing design for straightforward fitting and servicing access.
- Plates designed for back-to-back installation with a matching external plate.
Specifications
- Item Code: DO640330SSS
- Brand: Dormakaba
- Product Type: Internal narrow plate furniture with lever and turnsnib
- Plate Style: Narrow square end plate
- Lever: Noosa lever profile (30 series)
- Turnsnib: Standard turnsnib (not AS1428.1 compliant)
- Fixing: Visible fixing
- Material: Solid stainless steel
- Stainless Steel Grade: 316
- Door Thickness: 32–50 mm
- Fixing Centres: 160 mm
- Handing: Reversible
- Compliance: AS1428.1 compliant lever design
- Finish: Satin Stainless Steel
What's In The Box
- Internal narrow square end plate with Noosa lever and turnsnib
Suitable Uses
- Internal doors where a turnsnib is required for privacy function when used with a compatible mortice lock.
- Commercial and residential internal doors requiring stainless steel hardware.
- Accessible doorways where an AS1428.1 compliant lever profile is required.
- Projects using narrow stile or restricted plate width applications.
Dimensions
Frequently Asked Questions
- Is this suitable for external doors?
This is an internal plate. For external doors, use a matching external plate intended for outside exposure and security requirements. - Is the turnsnib AS1428.1 compliant?
No. The lever profile is AS1428.1 compliant, but the turnsnib is not listed as AS1428.1 compliant for this configuration. - What should I check before ordering?
Confirm the mortice lock model and fixing centres match your existing door preparation, and ensure you are pairing it with the correct external plate.
Additional Information
- This style is commonly specified where a narrow plate is needed on aluminium framed doors, but the internal side requires a turnsnib for privacy control.
- Visible fixing is often chosen on the internal side for easier servicing and faster replacement in high traffic sites.
- For compliant access doors, confirm the full door hardware set meets the project requirements, as compliance depends on the complete assembly.
dormakaba Warranty
dormakaba Australia Pty Ltd (ABN 14 067 969 466) provides the following warranty on all dormakaba branded products sold in Australia. This warranty is in addition to, and does not limit, your rights under the Australian Consumer Law.
Warranty Summary
How to Make a Claim
For full returns and warranty claim procedures, visit our
Returns & Warranty page
� this is kept up to date and is the authoritative reference for current claim steps.
- Report the defect promptly. Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries (including Gold Coast Smart Locks) as your point of sale in the first instance. Claims must be lodged no later than 1 month from the date the defect becomes obvious.
- Prepare your documentation. You will need proof of purchase (invoice or receipt), the date of delivery or installation, your name and address, and any maintenance records relevant to the product.
- Make the product available for inspection. dormakaba requires adequate access to the goods, fittings, and fixtures to assess any warranty claim and carry out repairs. If no fault is found, dormakaba's standard costs for inspection, service, and testing apply.
- Warranty work is conducted during normal business hours � 8:00am to 5:00pm, Monday to Friday.
Note: The expense of making a warranty claim (including transport and access costs) is borne by the purchaser.
Exclusions
This warranty does not cover:
- Damage or defects caused by misuse, abuse, neglect, or failure to follow dormakaba's selection, installation, and maintenance instructions
- Fair wear and tear
- Damage arising from installation not carried out by dormakaba or its authorised agents
- Damage caused to the structures the product is installed in, where installation was not by dormakaba or its authorised agents
- Damage caused by circumstances beyond dormakaba's control
- Defects within acceptable industry variances
- Products used other than for their intended purpose
- Damage from exposure to abnormal conditions, including but not limited to extreme temperature, water, fire, humidity, pressure, or stress
- Products that have been modified, built on, or repaired by a third party
- Products not maintained in accordance with dormakaba's care, cleaning, and maintenance instructions (as amended from time to time on the dormakaba website)
- Routine maintenance items (the purchaser's responsibility)
- Products installed, maintained, or operated other than in accordance with dormakaba's instructions
- Overhaul, replacement, or repair work carried out prior to dormakaba's approval of a warranty claim
Important Notes
Australian Consumer Law
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure, and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure. Nothing in this warranty limits or excludes these statutory rights.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure, and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure. Nothing in this warranty limits or excludes these statutory rights.
Replacement & Repair
dormakaba reserves the right to replace defective parts with components of similar quality, grade, and composition where an identical part is unavailable. Refurbished parts or goods of the same type may be used. For discontinued or unavailable products, dormakaba may substitute an equivalent current product. All products replaced under warranty become the property of dormakaba.
dormakaba reserves the right to replace defective parts with components of similar quality, grade, and composition where an identical part is unavailable. Refurbished parts or goods of the same type may be used. For discontinued or unavailable products, dormakaba may substitute an equivalent current product. All products replaced under warranty become the property of dormakaba.
Further Information
