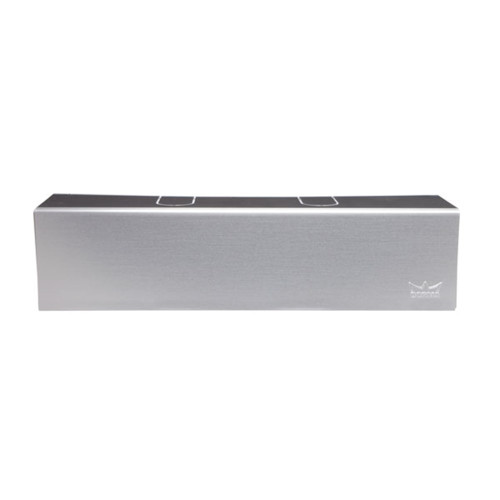

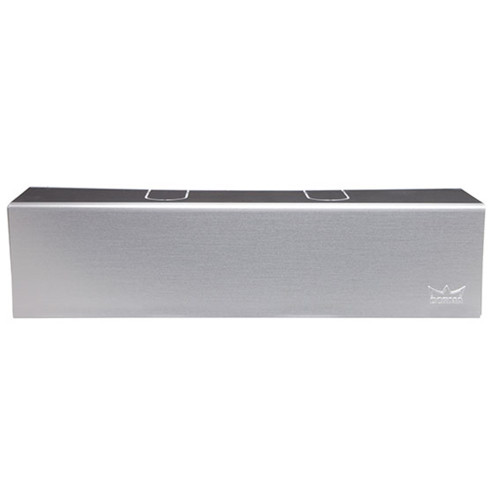

Dormakaba TS93B Door Closer Body Only - Pull Side EN1-5 Cam Action - Silver
The Dormakaba DOTS93B TS93B EN1-5 door closer body only is a non-handed modular system featuring a heart-shaped cam, suitable for a variety of door designs and fixing positions. Closing force is adjustable via screw, and closing speed, latching speed, backcheck, and delayed action are all adjustable via valve. Includes slide channel arm assembly for reliable performance.
Standard model for pull-side door leaf fixing/push-side transom fixing. Suitable for fire and smoke check doors with cushioned limit stay and single or double doors up to 1250mm (W). Finished in silver.
Key Features
- Non-handed modular door closer body only.
- Heart-shaped cam (Contur design) for smooth closing action.
- Adjustable closing force (EN1-5) and speed via valves.
- Independent adjustment for latching speed, backcheck, and delayed action.
- Slide channel arm assembly included.
- Pull-side leaf fixing / push-side transom fixing.
- Suitable for single and double doors up to 1250 mm wide.
- Fire rated when used with cushioned limit stay on approved doors.
- Finished in silver for commercial and interior applications.
Specifications
- Item Code: DOTS93B
- Brand: Dormakaba
- Finish: Silver
- Handing: Non-handed
- Spring Strength: EN1-5
- Suitable Doors: Single & Double up to 1250 mm wide
- Fire Rated: Yes, when installed with approved cushioned limit stay
- Has Slide Arm: Yes
- Dimensions (mm): 275 (L) x 53 (W) x 60 (H)
- Weight: 3.5 kg
Suitable Uses
- Replacement TS93B door closer body for commercial and internal doors.
- Fire-rated doors when installed with appropriate cushioned limit stay.
- Pull-side leaf or push-side transom fixing applications.
Additional Information
- Modular design allows for quick replacement without removing slide channel or arm assembly.
- Ensure installation aligns with door type for fire-rated compliance.
.
