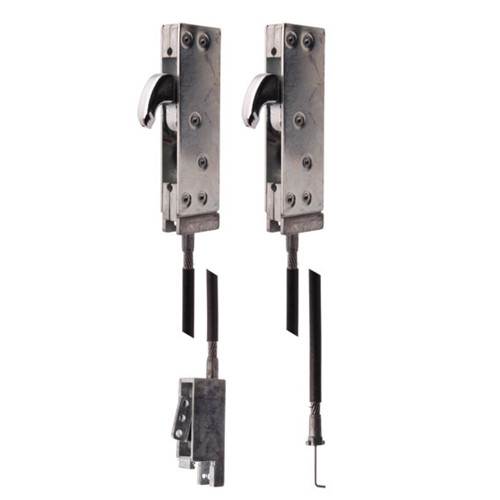

Austral 3 Point Locking Kit - HD16PLUS/H

The Austral HD16PLUS/H is a cable driven three point locking kit designed for use with the Austral Ultimate security door lockset. It converts a standard single point lock into a three deadbolt locking system, increasing resistance to jemmying and forced entry.

Delivery icon
Estimated Warehouse Dispatch
Usually same day if ordered before 11am AEST (excluding weekends and Qld public holidays)

Key features icon Key Features

  • Cable operated three point locking system.
  • Upgrades Austral Ultimate locksets to three deadbolt locking.
  • All three deadbolts engage simultaneously via key or internal snib.
  • Deadbolts locate into jemmy resistant deformable strike plates.
  • Stainless steel wire cables with galvanised steel, plastic coated conduit.
  • Quiet, smooth and corrosion resistant operation.
  • Suits left hand and right hand hinged doors.
  • Designed and manufactured in Australia.

Specifications icon Specifications

  • Item Code: ALHD16H
  • Product Type: Three point locking kit
  • Operation: Cable driven
  • Suits: Hinged security doors
  • Compatible Lockset: Austral Ultimate security door lock
  • Handing: Left hand and right hand
  • Country of Manufacture: Australia

Dimensions icon Dimensions

Austral HD16PLUS/H dimension diagram
Upper Bolt Centre Offset 75 mm
Lower Bolt Centre Offset 75 mm
Strike Engagement Length 46 mm
Fixing Hole Offset 10 mm
Vertical Adjustment Tolerance ±2 mm

Suitable uses icon Suitable Uses

  • Hinged residential and commercial security doors.
  • Applications requiring increased resistance to jemmying.
  • Upgrading Austral Ultimate single point locks to three point locking.

PDF icon Download PDF Resources

FAQ icon Frequently Asked Questions

  • Does this kit work on its own?
    No. This kit must be installed with the Austral Ultimate security door lockset.
  • Are the top and bottom bolts operated separately?
    No. All three deadbolts are activated simultaneously.
  • Is this suitable for left and right hand doors?
    Yes. The kit suits both left hand and right hand hinged doors.

Additional information icon Additional Information

  • Cable driven systems are commonly specified where quiet operation and corrosion resistance are required.
  • Correct alignment of strike plates is critical for smooth multi-point engagement.
  • Deformable strike plates are designed to reduce pry leverage during attack.

Technical Drawing

Austral HD16PLUS/H technical drawing
Warranty icon
Austral Lock Warranty
Austral Lock products are covered by the manufacturer's Terms of Guarantee against defects in materials and workmanship when installed and used correctly. Warranty coverage is subject to installation, maintenance and usage conditions.
This warranty operates in addition to rights available under the Australian Consumer Law.

Austral Lock – Warranty & Terms of Guarantee (Summary)

Austral Lock products are supplied under the manufacturer's Terms of Guarantee issued by Austral Lock Pty Ltd (part of the Allegion group). These terms define warranty coverage, defect reporting requirements, liability limitations and return conditions for goods supplied through authorised distributors and retailers.

The information below summarises the key provisions of the guarantee. For the full legal wording refer to the official manufacturer document.

Warranty icon
Warranty Overview
Austral Lock products may include manufacturer warranties covering defects in materials and workmanship where the product has been installed correctly and used under normal operating conditions.

Inspection icon Inspection & Defect Reporting

  • Products must be inspected upon delivery.
  • Visible damage, shortages or incorrect items should be reported within 14 days of delivery.
  • If defects are discovered later they should be reported as soon as reasonably possible.
  • The supplier must be given the opportunity to inspect the goods before a claim is processed.

Limitations icon Warranty Limitations

  • The supplier does not provide additional warranties beyond those required by law unless explicitly stated.
  • Where the product is manufactured by a third party, the warranty may be limited to the original manufacturer’s warranty.
  • Remedies may include repair, replacement or refund where permitted by law.
  • Warranty coverage may not extend to labour costs or consequential losses.

Exclusions icon Common Warranty Exclusions

  • Improper installation or failure to follow installation instructions.
  • Failure to maintain the product correctly.
  • Use outside intended applications.
  • Damage caused by environmental exposure or misuse.
  • Fair wear and tear through normal use.
  • Continuing to use a product after a defect becomes evident.

Returns icon Returns Policy

  • Returns may only be accepted once the supplier confirms the product is defective.
  • Goods should be returned within a reasonable period after delivery.
  • Returned items should be in the same condition as delivered where possible.
  • Freight costs for returns may be the responsibility of the buyer.
  • Custom or special-order products may not be eligible for return or credit.

Legal icon Liability Conditions

  • Risk of loss or damage transfers to the buyer once goods are delivered.
  • Ownership of goods may remain with the supplier until payment is received in full.
  • The supplier may not be liable for indirect or consequential losses resulting from delays or defects.

ACL icon Australian Consumer Law

Nothing in the Austral Lock Terms of Guarantee excludes rights available under the Australian Consumer Law. Customers may be entitled to repairs, replacement or refund where goods fail to meet consumer guarantees.

Document icon
Official Terms of Guarantee
For the complete legal wording refer to the manufacturer's official document:
https://ausloc.com/terms-of-guarantee/
