ABUS Oval Cylinder – Nickel Plate – Keyed to Differ
The ABUS AB570UCYLNPKD is a standard-length oval cylinder from the ABUS 570 series, supplied keyed to differ and finished in nickel plate. It is designed for use with oval cylinder mortice locks in commercial and residential applications where individual key control is required.
Key Features
- ABUS 570 series precision oval cylinder.
- Supplied keyed to differ.
- 6 pin cylinder configuration.
- LW5 key profile.
- X cam fitted as standard.
- Z cam supplied separately.
Specifications
- Brand: ABUS
- Item Code: AB570UCYLNPKD
- Series: ABUS 570
- Cylinder Type: Oval cylinder
- Pin Configuration: 6 pin
- Key Profile: LW5
- Keying: Keyed to differ
- Keys Supplied: 2
- Finish: Nickel Plate
- Cam Configuration: X cam fitted, Z cam included
What's In The Box
- 1 × ABUS oval cylinder (X cam fitted)
- 1 × Z cam
- 2 × keys
Suitable Uses
- Commercial and residential mortice lock installations.
- Replacement of existing ABUS 570 series oval cylinders.
- Applications requiring keyed to differ security.
ABUS 570 Oval Cylinders – Item Code Family
| Item Code | Cylinder Type | Length | Keying / Function | Finish | Notes |
|---|---|---|---|---|---|
| AB570UCYLNPKD | Standard oval cylinder | Standard | Keyed to differ | Nickel Plate | This product |
| AB570UCYLPBKD | Standard oval cylinder | Standard | Keyed to differ | Polished Brass | X cam fitted, Z cam included |
| AB570UCYLSCKA1 | Standard oval cylinder | Standard | Keyed alike (KA4301) | Satin Chrome | Keyed alike group |

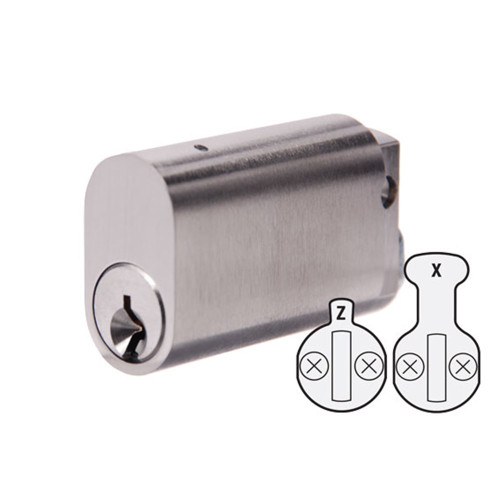

| AB570UEXCYL50SCKD | Extended oval cylinder | 50 mm | Keyed to differ | Satin Chrome | Extended body |

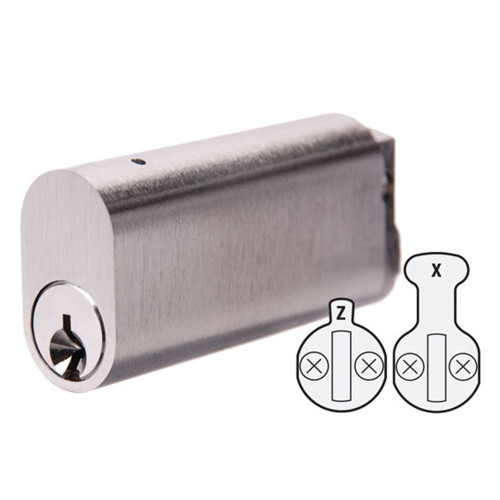

| AB570UEXCYL62SCKD | Extended oval cylinder | 62 mm | Keyed to differ | Satin Chrome | Extended body |
| 8360CYLSCLP | Oval cylinder body (less plug) | 83/60 format | Less plug | Satin Chrome | Rear retaining screw |
| AB570CYLSCD | Dummy oval cylinder | Standard | Dummy | Satin Chrome | Non-operational |
Frequently Asked Questions
What does keyed to differ mean?
Each cylinder is supplied with its own unique key that does not operate other cylinders.
Are both cams supplied?
Yes. An X cam is fitted and a Z cam is supplied separately.
Is nickel plate suitable for indoor use?
Yes. Nickel plate is commonly specified for internal applications.
Additional Information
- Nickel plate is a finish option only and does not alter cylinder performance.
- Cam compatibility must always be confirmed against the mortice lock body.
- Standard-length cylinders should not be used where extended projection is required.
