ABUS Hasp and Staple 100/80DG with 65/30 Padlock – Combo Pack
The ABUS 10080DG6530C is a matched hasp and staple plus padlock combo pack, combining an ABUS 100/80DG flexible (double-hinge) hasp and staple with a 65/30 solid brass padlock.
The double-hinge (DG) hasp design allows greater tolerance for door and frame misalignment compared with single-hinge hasps, while still maintaining concealed fixings and hardened components.
Key Features
- Matched ABUS hasp and staple with compatible padlock supplied.
- Flexible double-hinge (DG) hasp design for uneven or misaligned doors.
- Concealed fixing to reduce screw attack.
- Hardened staple and hinge pins with 9 mm padlock eyelet.
- 65/30 solid brass padlock keyed to differ.
Specifications – Hasp and Staple
| Hasp Series | 100/80DG |
| Overall Length | 125 mm |
| Width | 27 mm |
| Staple Hole Diameter | 9 mm |
| Fixing Type | Concealed fixing, double hinge |

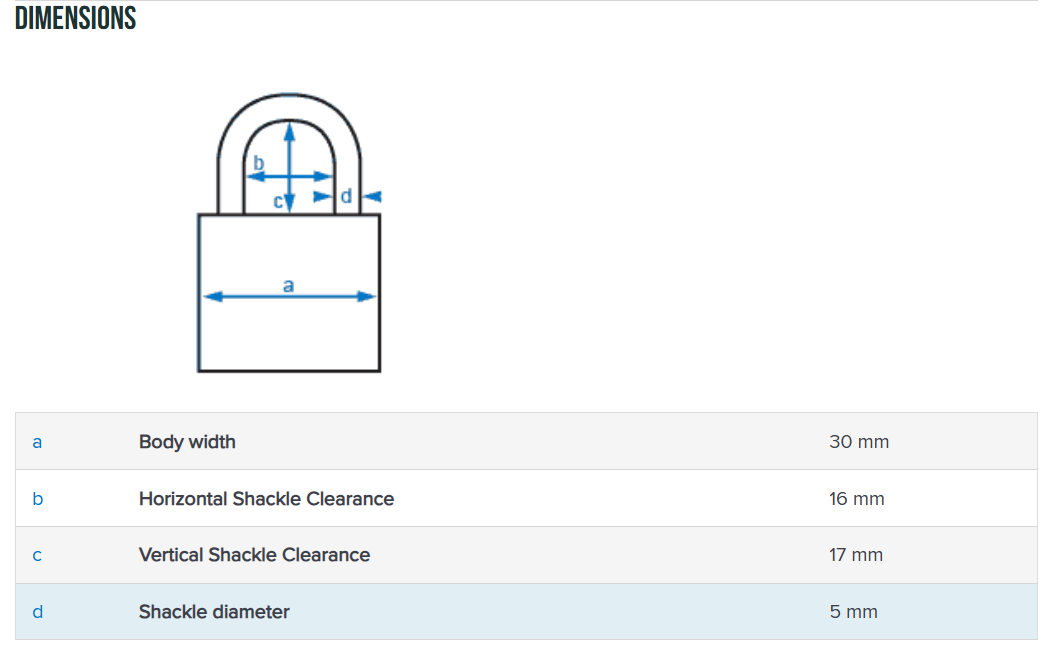

Specifications – Padlock
| Padlock Model | ABUS 65/30 |
| Body Width | 30 mm |
| Shackle Diameter | 5 mm |
| Horizontal Clearance | 16 mm |
| Vertical Clearance | 17 mm |
| Keying | Keyed to differ |
| Key Profile | AB53 |
What's In The Box
- ABUS 100/80DG hasp and staple (double hinge)
- ABUS 65/30 solid brass padlock (keyed to differ)
- Keys supplied with padlock
Suitable Uses
- Timber gates and shed doors with uneven alignment.
- Doors where movement or flex is expected.
- Residential and light commercial security.
- Applications where a rigid single-hinge hasp may bind.
ABUS Hasp and Staple – Item Code Family
Frequently Asked Questions
What is the advantage of the double-hinge hasp?
The double-hinge design allows better tolerance for misaligned doors and frames.
Is this supplied keyed alike?
No. The supplied padlock is keyed to differ.
Can a different padlock be used?
Yes, provided the shackle diameter does not exceed 9 mm.
Additional Information
- Double-hinge hasps are commonly selected for timber structures that move with weather changes.
- Correct alignment during installation is still important to ensure smooth padlock operation.
- For higher-risk environments, heavier-duty hasp series should be considered.
