Lockwood 200 Series Exterior Plate with Cylinder Hole – P1 Pull Handle
The Lockwood 200 Series Artefact exterior plate measures 162mm x 162mm and features square corners with concealed fixing. This configuration includes a cylinder hole and P1 pull handle, suitable for use on push/pull and mortice lock applications.
Concealed fixed plates incorporate internal threaded studs at each corner. Plates are fixed back-to-back through the door when paired with the corresponding internal plate.
Estimated Warehouse Dispatch: 11 Days
Key Features
- 162mm x 162mm square corner exterior plate.
- Concealed fixing configuration.
- Includes P1 pull handle.
- Cylinder hole preparation for oval cylinder.
- Suitable for Lockwood 3770 and 3570 Series mortice locks, latches and push/pull applications.
- Designed, assembled and customised in Australia.
Fire Rated
- Successfully tested up to 4 hours when installed with an approved Lockwood mortice lock on fire door assemblies.
- Tested in accordance with AS1905.1:2005 – Fire Resistant Doorsets.
- Fire performance dependent on full door assembly and installation method.
Specifications
- Series: 200 Series Artefact
- Plate Size: 162mm x 162mm
- Plate Thickness: 2mm (stainless/brass variants)
- Configuration: Exterior Plate – Cylinder Hole & P1 Pull Handle
- Door Thickness: 35–45mm standard
- Fixing: Concealed (stud fixing)
- Handing: Left or Right (pull handle configuration)
- Materials: Stainless steel / Marine Grade stainless

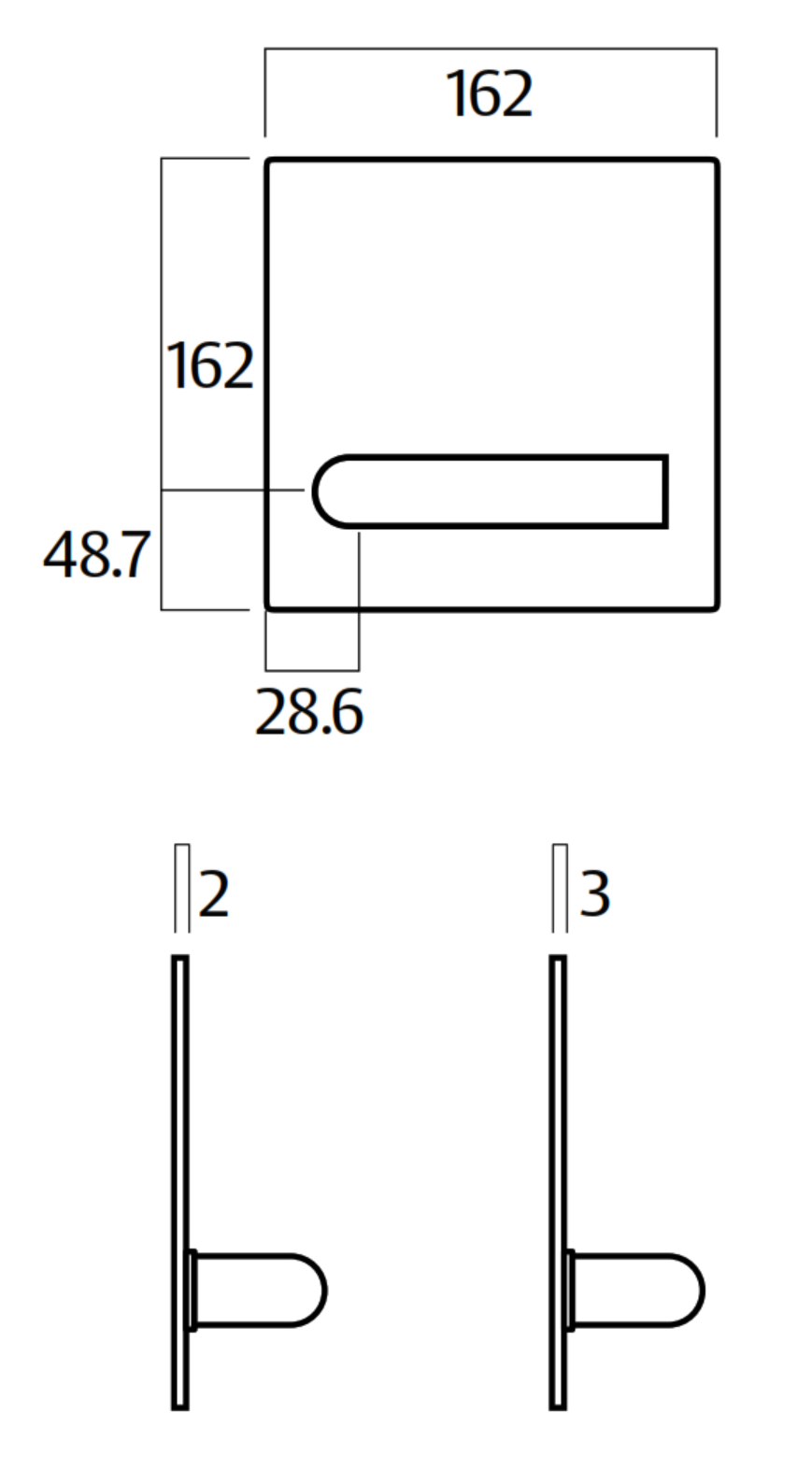

Dimensions
Available Finish Options
Satin Stainless Steel
SS-
316 Marine Grade Stainless Steel
MG
Oil Rubbed Bronze
ORB
Warranty
- General Warranty: 25 years on mechanical parts and workmanship
- Keys: 12 months
- Finishes: Everbrass 25 yrs; Stainless/Chrome/Anodised 10 yrs; PVD incl. VIVID 10 yrs; Symmetry range 5 yrs; Decorative finishes (Bronze, Antique, Powdercoat) 2 yrs; natural brass ageing excluded
- Stainless Steel: Warranty excludes natural tea staining if not cleaned per care instructions
Download PDF Resources
|

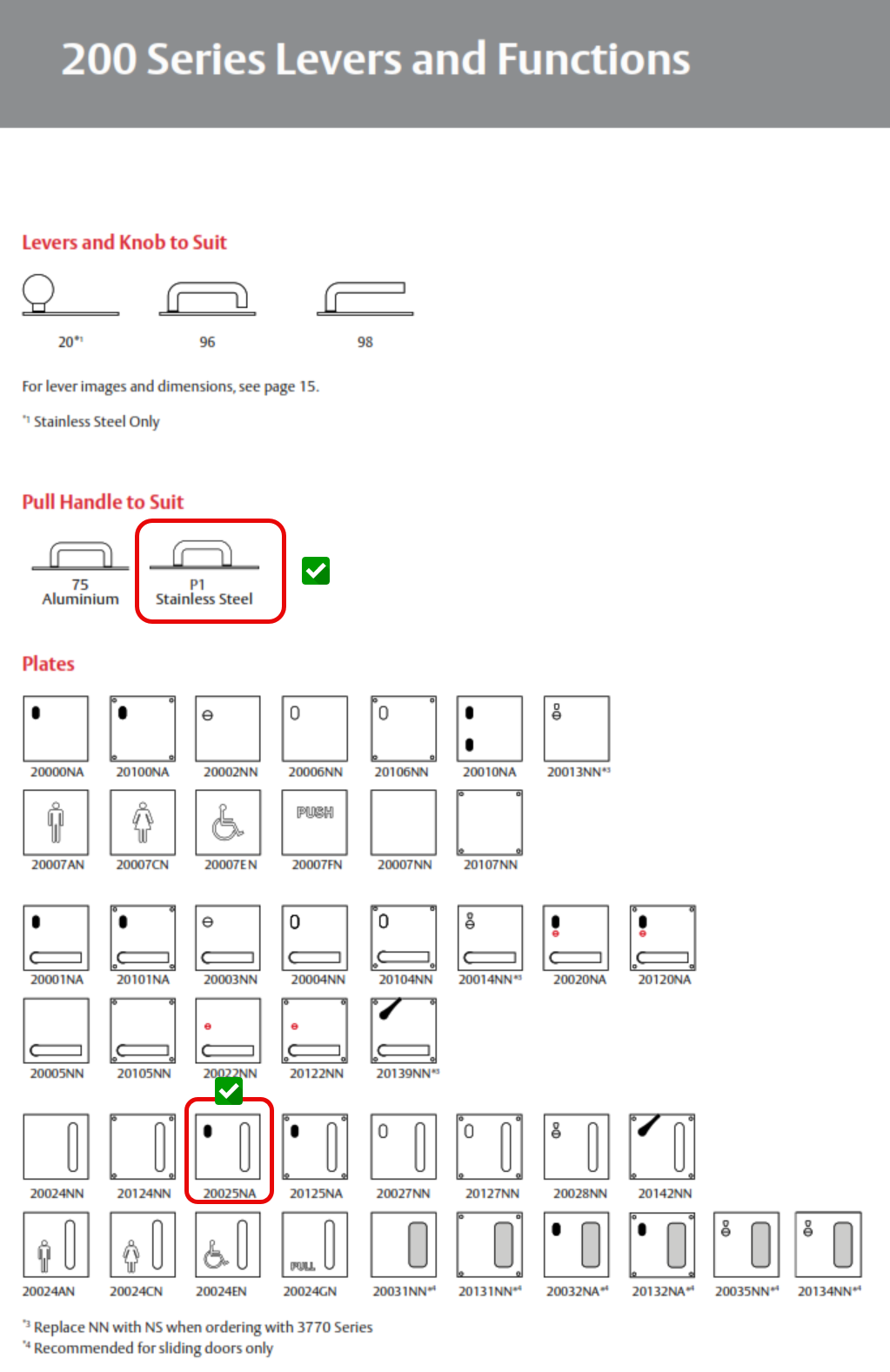

Lockwood Plate Door Handles Catalogue |
Additional Information
For doors thicker than 45mm, extended fixing screws may be required. When specifying Marine Grade (MG) finish, suitability for coastal environments should be considered.
Frequently Asked Questions
Is the Lockwood 200 Series exterior plate fire rated?
Yes. The Artefact 200 Series has been successfully tested up to 4 hours when installed with an approved Lockwood mortice lock on fire door assemblies, in accordance with AS1905.1:2005. Fire performance is dependent on the full door assembly.
What door thickness does this plate suit?
Standard fixing screws suit doors 35mm to 45mm thick. For doors 45mm to 55mm thick, longer fixing screws (SP2000-208) must be specified.
Is the P1 pull handle handed?
Yes. Plates incorporating pull handles are handed. Left-hand and right-hand variants must be selected when ordering.
What cylinder type does this exterior plate accept?
This configuration is prepared for a Lockwood 570 series oval cylinder. Guarded oval cylinder options are available depending on specification.
Is Marine Grade stainless suitable for coastal environments?
The MG (316 Marine Grade Stainless Steel) option is recommended for coastal or high-corrosion environments. Regular cleaning and maintenance is still required to prevent tea staining.
Are cylinders and internal plates included?
No. This listing is for the exterior plate only. Cylinders, mortice locks and matching internal plates are ordered separately.
