Lockwood FLUID FE200 2 Point Exit Device - Horizontal Latch
The Lockwood FLUID FE200 Series is a two point panic exit device providing dual horizontal latching for controlled egress in commercial and public buildings. It delivers reliable escape function by means of a horizontal push bar while maintaining secure dual point engagement.
This device is part of the Lockwood FLUID panic hardware platform and is designed for use on single or double leaf doors requiring compliant emergency exit hardware.
Estimated Warehouse Dispatch: 2 Days
Key Features
- Two point horizontal latching panic exit device.
- Provides immediate egress by pushing the horizontal operating bar.
- Brushed stainless steel bolt.
- Up to 500kg resistance at each latching point.
- Tested to 1,000,000 cycles.
- Auxiliary bolt activation from 1mm.
- Opening force less than 20N.
- Bar can be cut down to 350mm.
- Rod covers supplied as standard.
- Cylinder dogging available as optional accessory.
- 25 Year Mechanical Warranty.
Fire Rated
- Successfully tested on fire door assemblies in accordance with AS1905.1-2005 - Fire Resistant Doorsets.
- For certain fire door assemblies, through fix bolts (FE0060) may be required.
- Fire performance is dependent on the complete door assembly and installation method.
Standards and Compliance
- Conforms to CE EN1125-2008.
- Designed to provide compliant emergency egress in commercial environments.
Specifications
- Series: FLUID FE200 Series
- Configuration: 2 Point Exit Device - Horizontal Latch
- Door Width Options: 900mm (FE209/0HSIL), 1200mm (FE212/0HSIL)
- Door Type: Single or double leaf doors
- Maximum Door Height: 2300mm (standard)
- Vertical Rod Extension Option: Up to 3000mm door height (FE0050SIL)
- Finish: Silver (SIL)
- Latch Type: Horizontal dual point
- Cylinder Dogging: Optional (Euro Profile Half Cylinder required, sold separately)
- External Access: Compatible with FE5000 Series External Trim or FENL201 Nightlatch Assembly Kit (ordered separately)

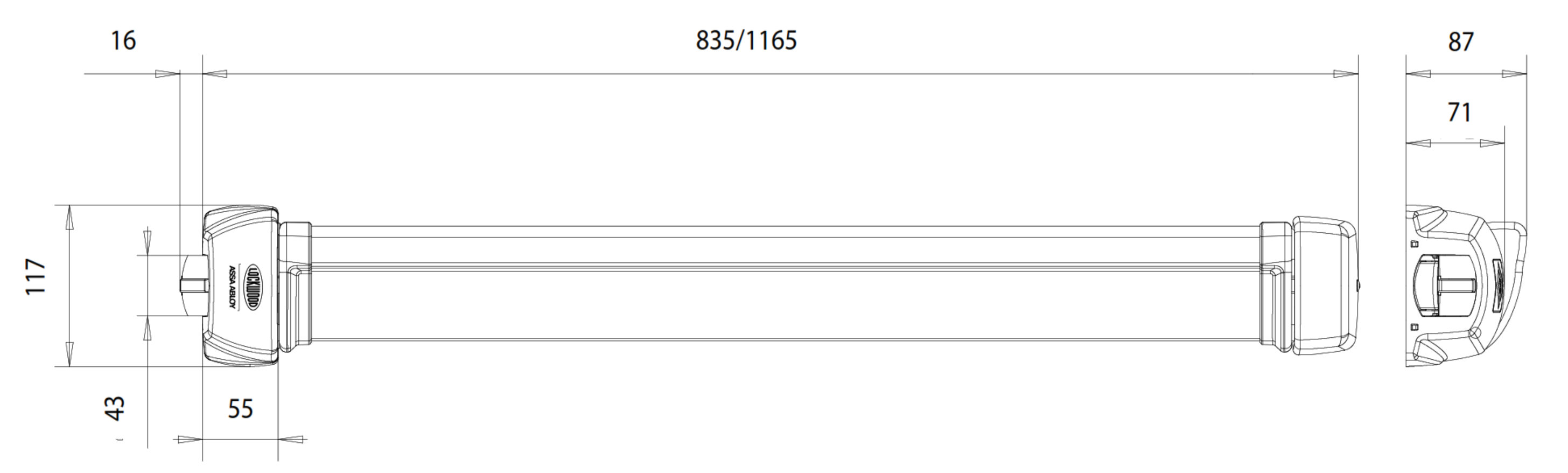

Dimensions

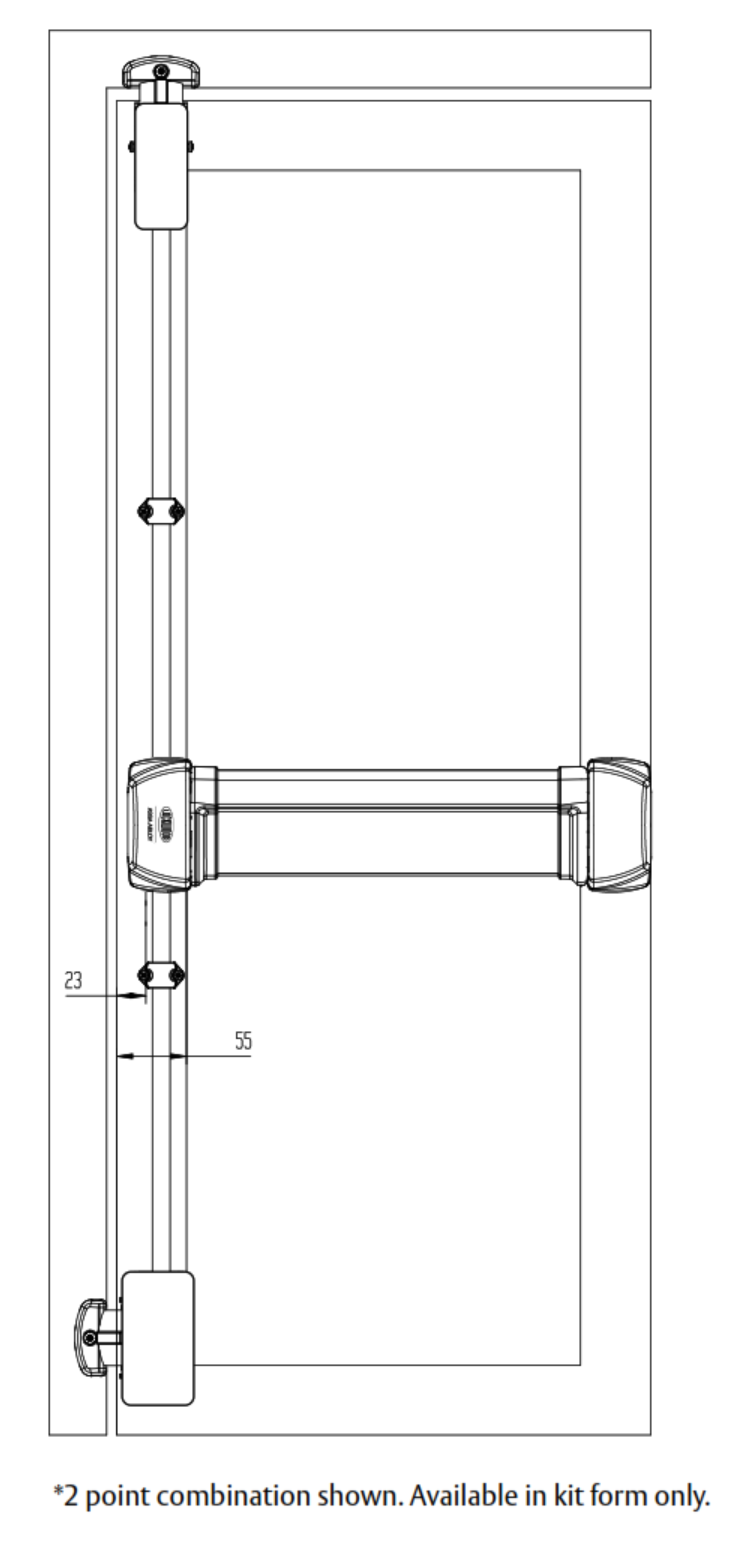

Dimensions
Available Variants
- FE209/0HSIL - 2 Point Horizontal Latch - 900mm
- FE212/0HSIL - 2 Point Horizontal Latch - 1200mm
- FE209/1HSIL - 2 Point Horizontal Latch - Cylinder Dogging - 900mm
- FE212/1HSIL - 2 Point Horizontal Latch - Cylinder Dogging - 1200mm
Warranty
- General Warranty: 25 years on mechanical parts and workmanship
- Keys: 12 months
- Finishes: Everbrass 25 yrs; Stainless/Chrome/Anodised 10 yrs; PVD incl. VIVID 10 yrs; Symmetry range 5 yrs; Decorative finishes (Bronze, Antique, Powdercoat) 2 yrs; natural brass ageing excluded
- Stainless Steel: Warranty excludes natural tea staining if not cleaned per care instructions
Download PDF Resources
|
Lockwood Panic Exit Devices Catalogue |
|
Lockwood Panic Exit Instructions |
|
FE0010SIL Cylinder Dogging Kit Instructions |
|
FE0050SIL Extension Rod Instructions |
|
FE5000SIL External Trim Instructions |
Frequently Asked Questions
Is this device suitable for fire doors?
Yes, when installed on approved fire door assemblies in accordance with AS1905.1-2005.
Does this include a cylinder?
No. Euro profile half cylinder is sold separately for dogging or external access configurations.
Can this be used on doors over 2300mm?
Yes, when paired with the FE0050SIL Vertical Rod Extension Kit for doors up to 3000mm high.
Additional Information
The FE200 two point horizontal latch configuration is commonly specified for commercial egress doors requiring dual point engagement without vertical rods. For vertical latch configurations or combination systems, refer to the FE200 and FE300 ordering guide.
Lockwood Warranty
Lockwood branded products are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty periods vary by product type, with separate cover for mechanical components, electrical and electronic parts, keys, and finishes.
The summary below sets out the standard warranty structure. All warranty claims are handled by Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries. Full terms and exclusions are set out in the official Lockwood warranty document linked at the base of this page.
Warranty Summary
Finish Coverage Guide
- Everbrass finishes: up to 25 years against corrosion, tarnishing and discolouration.
- Stainless steel, polished stainless steel, chrome plating and anodised finishes: typically up to 10 years.
- PVD and VIVID finishes: typically up to 10 years.
- Symmetry range finishes: typically up to 5 years.
- Decorative finishes (Antique Copper, Architectural Bronze, Oil Rubbed Bronze, Aged Brass, Polished Brass, Satin Brass and related variants): typically up to 2 years against corrosion.
- Unlacquered brass finishes naturally age and change appearance over time. This is not considered a defect.
- Tea staining of stainless steel is not covered where the required cleaning and maintenance have not been followed.
How to Make a Claim
- Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries with your proof of original purchase.
- Keep the product securely packed and clearly identified, ready for assessment.
- Where a claim is escalated to the manufacturer, ASSA ABLOY may issue a case number before goods are returned.
- ASSA ABLOY assesses the claim and determines repair, replacement with the same or closest equivalent product, or refund of the purchase price.
Exclusions
- Normal wear and tear.
- Misuse, abuse, accidental damage or use outside published specifications.
- Improper maintenance or failure to follow care instructions.
- Unauthorised modification, repair or use of non-genuine parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or pollution.
- Removal, refitment or associated labour charges.
- Products not originally sold in Australia through authorised channels.
These manufacturer warranties apply in addition to your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. Where a failure does not amount to a major failure, you are entitled to have the goods repaired or replaced.
