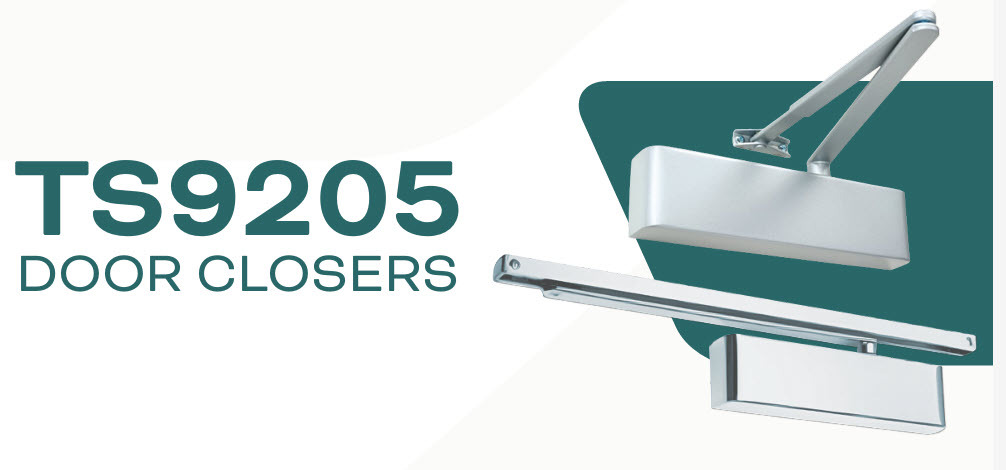

Zanda TS.9205.SA – Standard Slide Arm Unit, Includes Slide Armset & Closer
The Zanda TS.9205.SA is a premium, high-efficiency mechanical door closer offering exceptional reliability, ease of opening, and long service life. With a 35-year guarantee, variable EN power size 2–5, and multiple fitting options, it is one of Zanda’s most specified closers. Successfully third-party tested to BS EN1154 and CE marked, the TS.9205.SA is suited for heavy-duty commercial use, handling doors up to 1250 mm wide and 110 kg. Supplied as a standard slide arm unit, including slide armset and closer.
Key Features
- Variable EN power size 2–5 — suits doors up to 110 kg and 1250 mm wide
- Universal application — Standard, Parallel arm, or Transom fitting positions
- Adjustable backcheck, closing speed, latch action, and delayed action
- 180° opening angle
- Slide arm configuration for a lower profile appearance
- Optional hold open function
- Tested to BS EN1154 and CE marked
- 35-year mechanical guarantee
Specifications
- Item Code: TS.9205.SA
- Type: Mechanical Door Closer — Slide Arm
- Power Size: EN 2–5 (adjustable)
- Max Door Width: 1250 mm
- Max Door Weight: 110 kg
- Adjustable Backcheck: Yes
- Adjustable Closing Speed: Yes
- Adjustable Latch Action: Yes
- Delayed Action: Yes
- Opening Angle: 180°
- Handing: Universal (non-handed)
- Fire Rating: Tested to BS EN1154
- Finishes: Antique Brass (AB), Matt Black (BLK), Electro/Polished Brass (EB), Graphite Nickel (GN), Oil Rubbed Bronze (ORB), Polished Nickel / Chrome Plate (PNP), Satin Brass (SB), Silver (SE), 316 Marine Grade Stainless Steel (SS), Weathered Bronze (WB), Matt White (WH); Special order finishes available with lead time
- Warranty: 35-Year Mechanical Guarantee
What's In The Box
- 1 × TS.9205.SA Door Closer
- 1 × Slide Armset
- Fixings and installation instructions
Available Finish Options (Stocked)
-
Matt Black
TS.9205.SA.BLK -
Silver
TS.9205.SA.SE
Item Code Family – Zanda Door Closer Series
Download PDF Resources
|
Zanda TS.9205 Door Closer – Spec Sheet |
|
Zanda Door Controls Catalogue |
|
Zanda Compact Catalogue |
|
Zanda Architectural Catalogue |
|
Zanda Commercial Hardware Brochure |
|
Zanda Warranty |
