Lockwood RF916 Square End Plate with Privacy Indicator Turn & 70 Lever – Satin Chrome
The Lockwood RF916 Square End Plate with Privacy Indicator Turn and 70 Lever is part of the RF800 Series door furniture range, designed for use with Lockwood mortice locks and latches in privacy and bathroom applications.
This configuration combines a square end plate featuring an oval turn snib with privacy indicator and the 70 lever design in Satin Chrome finish. The square end plate design makes it particularly suitable for retrofit installations in commercial and institutional environments, offering both functional privacy control and compliance with accessibility standards.
Estimated Warehouse Dispatch
Usually ships in 7 business days
Usually ships in 7 business days
Non-Returnable Item
This product is non-returnable. Please confirm suitability and compatibility before ordering.
This product is non-returnable. Please confirm suitability and compatibility before ordering.

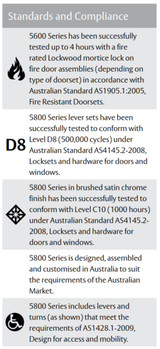

Disability Act Compliance (DDA)
- DDA compliant lever design to assist users with limited grip strength or dexterity
- Suitable for applications requiring compliance with BCA AS 1428.1-2009
- Lever compliance relates to handle design only and does not imply full building compliance
Key Features
- Square end plate design suitable for retrofit installations
- Privacy function with oval turn snib and external indicator
- 70 lever design for ergonomic operation and DDA compliance
- Non-handed configuration: levers can be reversed by removing stop screw
- Compatible with Lockwood mortice locks and latches
- Internal plate with visible fixing for secure mounting
- Back-to-back through fixing using M4 screws
- Fixing centres: 158mm
- Part of RF800 Series door furniture range
- Satin Chrome finish provides durable corrosion-resistant surface
Suitable Uses
- Commercial bathroom and toilet facilities
- Institutional washroom applications
- Privacy rooms and changing facilities
- Hotel and accommodation bathroom doors
- Healthcare facility patient rooms and bathrooms
- Educational facility restroom doors
- Retrofit applications requiring square end plate mounting
- DDA compliant accessibility applications
Compatible With
- Lockwood mortice locks with privacy function
- Lockwood mortice latches suitable for privacy applications
- RF800 Series door furniture components
Full Specifications
Dimensions
70 Lever Dimensions
70 lever profile view showing overall length and projection measurements.
70 lever side elevation showing diameter and height specifications.
70 lever end view showing cross-sectional profile and mounting detail.
Frequently Asked Questions
- What is a privacy indicator and how does it work?
The privacy indicator is an external visible feature that shows when the door is locked from the inside using the turn snib. This allows people outside to see occupied/vacant status without attempting to open the door. - Can the levers be installed on either side of the door?
Yes. This is a non-handed configuration, meaning the levers can be reversed by removing the stop screw. This provides installation flexibility for both left-hand and right-hand door applications. - What makes square end plates suitable for retrofit?
Square end plates cover a larger area than round roses, making them ideal for retrofit installations where previous hardware may have left marks or damage on the door surface that needs to be concealed. - Is this a complete privacy lockset or just the door furniture?
This is door furniture only (lever and end plate assembly with privacy turn). It does not include the mortice lock or latch mechanism that provides the actual locking function. - Why is this item non-returnable?
Door furniture components are non-returnable due to compatibility requirements and the need to ensure proper fit with specific lock mechanisms and installation configurations.
Additional Information
- RF800 Series Integration:
Part of the comprehensive RF800 Series door furniture range, allowing coordinated aesthetic appearance across multiple door types and functions within the same building or facility. - Privacy Turn Function:
The oval turn snib allows interior occupants to lock the door for privacy. The external indicator provides visual confirmation of occupied status, essential for bathroom and changing room applications. - DDA Compliance Application:
The 70 lever design meets DDA requirements for accessible door hardware, assisting users with limited grip strength or dexterity. This makes it suitable for public and commercial facilities requiring compliance with accessibility standards. - Non-Handed Installation Advantage:
The ability to reverse lever orientation by removing the stop screw simplifies inventory management and provides installation flexibility without requiring separate left-hand and right-hand versions. - Through-Fixing Security:
Back-to-back through fixing with M4 screws provides secure mounting that resists tampering and ensures long-term stability in high-traffic commercial and institutional environments. - Retrofit Suitability:
Square end plate design is particularly effective in retrofit situations where existing door preparation or previous hardware installation has left visible marks requiring larger coverage area. - Finish Maintenance:
Satin Chrome finish provides corrosion resistance and durability. Clean with soft cloth and mild detergent. Avoid abrasive cleaners that may damage the finish surface.
