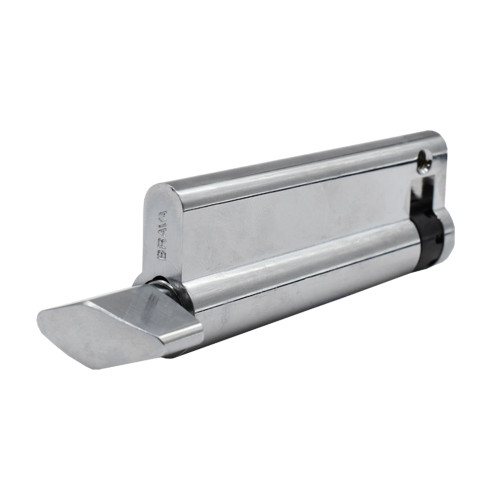

Protector Euro Half Cylinder Non Keyed Turnsnib Only 35mm - Chrome Plated
The Protector PRPT35CP is a euro half cylinder featuring a non keyed turnsnib for internal operation only. It uses a fixed cam configuration and provides a 35 mm body length with internal turn. Finished in chrome plated, it is suited to residential and light commercial doors requiring internal thumbturn operation without an external key.
Key Features
- Euro half cylinder with internal turnsnib.
- Non keyed internal operation.
- Fixed cam configuration.
- 35 mm body length with internal turn.
- Compact design for internal privacy or utility doors.
- Chrome plated finish.
Specifications
- Item Code: PRPT35CP
- Brand: Protector
- Cylinder Type: Euro half cylinder with turnsnib
- Operation: Non keyed turnsnib only
- Cam Type: Fixed cam
- Body Size: 35 mm / 10 mm plus 21 mm turn
- Overall Length: 45 mm (excluding turnsnib)
- Retaining Screw: Not supplied
- Finish: Chrome Plated
- Packaging: Supplied boxed
What's In The Box
- 1 × Euro half cylinder with turnsnib
Suitable Uses
- Internal doors requiring thumbturn operation only.
- Utility rooms, storage rooms, or service cupboards.
- Residential or light commercial euro cylinder lock installations.
Dimensions
Frequently Asked Questions
- Does this cylinder allow key access from outside?
No. This is a non keyed half cylinder with an internal turnsnib only. - Does it include the retaining screw?
No. The retaining screw is not supplied and must be provided with the lock or separately. - How do I confirm the correct cylinder length?
Measure from the centre fixing screw position to the outer face of the door hardware. This model provides a 35 mm primary side.
Additional Information
- Half cylinders with turnsnibs are commonly used where external key access is not required.
- Always confirm the door thickness and hardware projection before selecting cylinder length.
- Incorrect cylinder sizing is a common cause of installation issues, especially on retrofit jobs.
