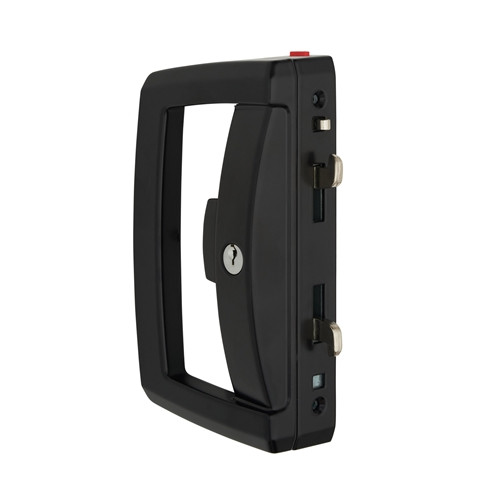

Lockwood Onyx D Handle/Slim Pull Extra Width Strike 5 Pin Cylinder - Black
The Lockwood Onyx D Handle/Slim Pull Extra Width Strike 5 Pin Cylinder is a surface mounted sliding door lockset from the Lockwood Onyx range. It is designed for sliding patio door applications where secure locking, easy operation and clear lock status indication are required.
This model includes D handle and slim pull furniture, an extra width strike and a 5 pin cylinder. The Onyx range combines twin locking beaks, LockAlert status indication, DualSelect two stage key locking and a Safety Release function for practical residential sliding door security.
The surface mounted chassis is suitable for most aluminium and timber sliding doors. Its flexible, non-handed design supports straightforward installation in new and many retrofit applications.
Typically ships in 5 Days
Non-Returnable Item: This product is a special order and is not returnable.
Key Features
- Surface mounted lockset for sliding patio door applications
- D handle and slim pull furniture configuration
- Supplied with extra width strike
- Includes 5 pin cylinder locking
- Twin locking beaks for added security
- Door Close Detect button anti-slam feature helps protect the locking beaks from accidental damage
- LockAlert indicator shows the lockset status at a glance
- DualSelect enables two stage key locking
- Safety Release function minimises the risk of being locked in
- Ergonomic sliding snib with intuitive downward motion to unlock
- Non-handed design for easier installation
Suitable Uses
- Sliding patio doors
- Most aluminium sliding doors
- Most timber sliding doors
- Residential sliding door lock upgrades
- New installations and many retrofit applications
- Applications requiring an extra width strike configuration
Full Specifications
Frequently Asked Questions
Does this model include a cylinder?
Yes. This configuration is supplied with a 5 pin cylinder.
What is the extra width strike used for?
The extra width strike is used where the sliding door frame or installation detail requires a wider strike option than a standard strike configuration.
What is a common installation issue to avoid?
The lock body and extra width strike must be aligned correctly. Poor alignment can affect the twin locking beaks, closing action and Door Close Detect anti-slam function.
Additional Information
- Commonly specified in Australian residential sliding patio door applications where a surface mounted lockset is required.
- The extra width strike configuration can be useful for retrofit work where the frame or meeting stile requires a broader strike footprint.
- The LockAlert indicator is useful where users want a quick visual check of the lock status before leaving the home.
- For retrofit installations, confirm the existing strike position, door preparation and cylinder requirements before ordering.
Lockwood branded products purchased new in Australia from authorised resellers are covered against defects in materials and workmanship for:
- Mechanical components: 25 years
- Electrical and electronic components: 2 years (excluding batteries)
Lockwood Sliding Door Hardware Catalogue
Lockwood Sliding Door Hardware Catalogue
.
Lockwood Warranty
Lockwood branded products are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty periods vary by product type, with separate cover for mechanical components, electrical and electronic parts, keys, and finishes.
The summary below sets out the standard warranty structure. All warranty claims are handled by Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries. Full terms and exclusions are set out in the official Lockwood warranty document linked at the base of this page.
Warranty Summary
Finish Coverage Guide
- Everbrass finishes: up to 25 years against corrosion, tarnishing and discolouration.
- Stainless steel, polished stainless steel, chrome plating and anodised finishes: typically up to 10 years.
- PVD and VIVID finishes: typically up to 10 years.
- Symmetry range finishes: typically up to 5 years.
- Decorative finishes (Antique Copper, Architectural Bronze, Oil Rubbed Bronze, Aged Brass, Polished Brass, Satin Brass and related variants): typically up to 2 years against corrosion.
- Unlacquered brass finishes naturally age and change appearance over time. This is not considered a defect.
- Tea staining of stainless steel is not covered where the required cleaning and maintenance have not been followed.
How to Make a Claim
- Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries with your proof of original purchase.
- Keep the product securely packed and clearly identified, ready for assessment.
- Where a claim is escalated to the manufacturer, ASSA ABLOY may issue a case number before goods are returned.
- ASSA ABLOY assesses the claim and determines repair, replacement with the same or closest equivalent product, or refund of the purchase price.
Exclusions
- Normal wear and tear.
- Misuse, abuse, accidental damage or use outside published specifications.
- Improper maintenance or failure to follow care instructions.
- Unauthorised modification, repair or use of non-genuine parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or pollution.
- Removal, refitment or associated labour charges.
- Products not originally sold in Australia through authorised channels.
These manufacturer warranties apply in addition to your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. Where a failure does not amount to a major failure, you are entitled to have the goods repaired or replaced.
