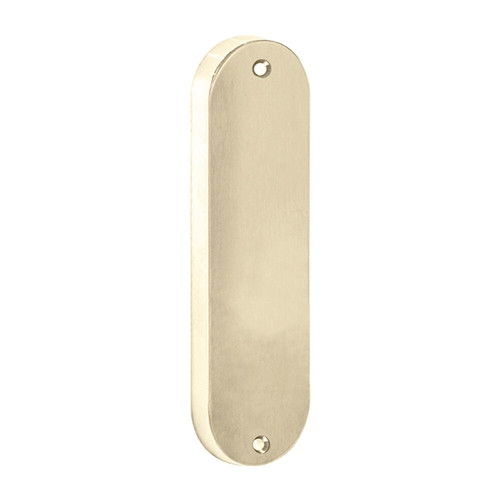

LOX Drop Bolt 25mm Round End Face Plate
Key Features
- LOX electric drop bolt designed for narrow frame swing doors and glass door mounting.
- Available in Power to Lock (PTL) or Power to Open (PTO) configurations.
- Slimline body suitable for narrow door frames.
- 14.5 mm bolt throw with 14.7 mm bolt diameter.
- Integrated door monitoring reed switch.
- Holding strength up to 300 kg.
- Auto lock function with time delay options of 0, 3, 6 or 10 seconds.
- Low power consumption with surge protection.
- Anodised aluminium body case.
- Internal IC circuits protect drop bolt head from damage.
- 4 hour fire rated design.
Compatibility
- Designed for narrow frame swing doors.
- Suitable for aluminium framed doors.
- Suitable for glass door installations using strike housing.
- Commonly used for double door access control systems.
- Ideal for commercial security door installations.
Full Specifications
Fire Rated
- Fire rated up to 4 hours when installed correctly.
Whats In The Box
- LOX electric drop bolt.
- Strike plate housing.
- Mounting hardware.
- Installation instructions.
Dimension
Download PDF Resources
|
LOX DB1260 Drop Bolt Datasheet |
|
LOX DB1260 Installation Manual |
Frequently Asked Questions (FAQ)
- What is the difference between PTL and PTO models?
PTL means Power to Lock while PTO means Power to Open. - Can the drop bolt be installed on glass doors?
Yes. It is suitable for glass doors using the appropriate strike housing. - What is the holding force of this drop bolt?
The drop bolt provides up to 300 kg holding strength.
Additional Information
- Designed for access control security doors.
- Slimline body fits narrow aluminium door frames.
- Commonly used with maglocks for double door security systems.
