Lockwood 1220 Symphony Through Fix Escutcheon Kit - Privacy Indicating Emergency Turn and Oval Turnknob - Satin Chrome
The Lockwood 1228P/7NSC is a through fix escutcheon kit from the 1220 Symphony Series in Satin Chrome Brushed finish, combining a Privacy Indicating Emergency Turn escutcheon on the exterior with a non-indicating Oval Turnknob escutcheon on the interior.
The exterior Privacy Indicating Emergency Turn displays a red/green occupied/vacant signal and allows emergency outside access without tools. The interior Oval Turnknob is non-indicating - it does not display a privacy indicator on the interior face. This combination is appropriate where external occupancy display is required but an interior indicator is not.
Compatible with Lockwood Selector 3770 Series Mortice Locks, PT Mortice Locks, and the Lockwood 6260 Privacy Bolt. Non-handed. Suits 32-45mm doors as standard.
Usually ships in 6 business days
This product is a special order item and is not returnable. Please confirm suitability before ordering.
Finish
Satin Chrome Brushed
This product is supplied in Satin Chrome Brushed finish only.
Key Features
- Through fix kit - secured with two M4 x 64mm stainless steel screws through the door face.
- Exterior Privacy Indicating Emergency Turn displays red/green occupied/vacant signal from outside.
- Emergency Turn allows outside access without a key when operated with sufficient force.
- Interior Oval Turnknob is non-indicating - no privacy indicator on the interior face.
- Non-handed design - suitable for left-hand and right-hand doors without modification.
- 53mm rose diameter with 12mm projection.
- Compatible with Selector 3770 Series Mortice Locks, PT Mortice Locks, and 6260 Privacy Bolt.
- Suits door thicknesses from 32mm to 45mm as standard.
- Satin Chrome Brushed finish.
- Solid brass construction throughout the 1220 Symphony Series.
- 25-year Lockwood mechanical warranty.
What's in the Box
- 1 x Privacy Indicating Emergency Turn Escutcheon (exterior)
- 1 x Oval Turnknob Escutcheon - Non-indicating (interior)
- 2 x M4 x 64mm stainless steel through-fix screws
Suitable Uses
- Accessible toilet and amenity doors requiring privacy indicator on exterior only
- Commercial applications requiring emergency override and external occupancy display
- Applications with the Lockwood 6260 Privacy Bolt
Full Specifications

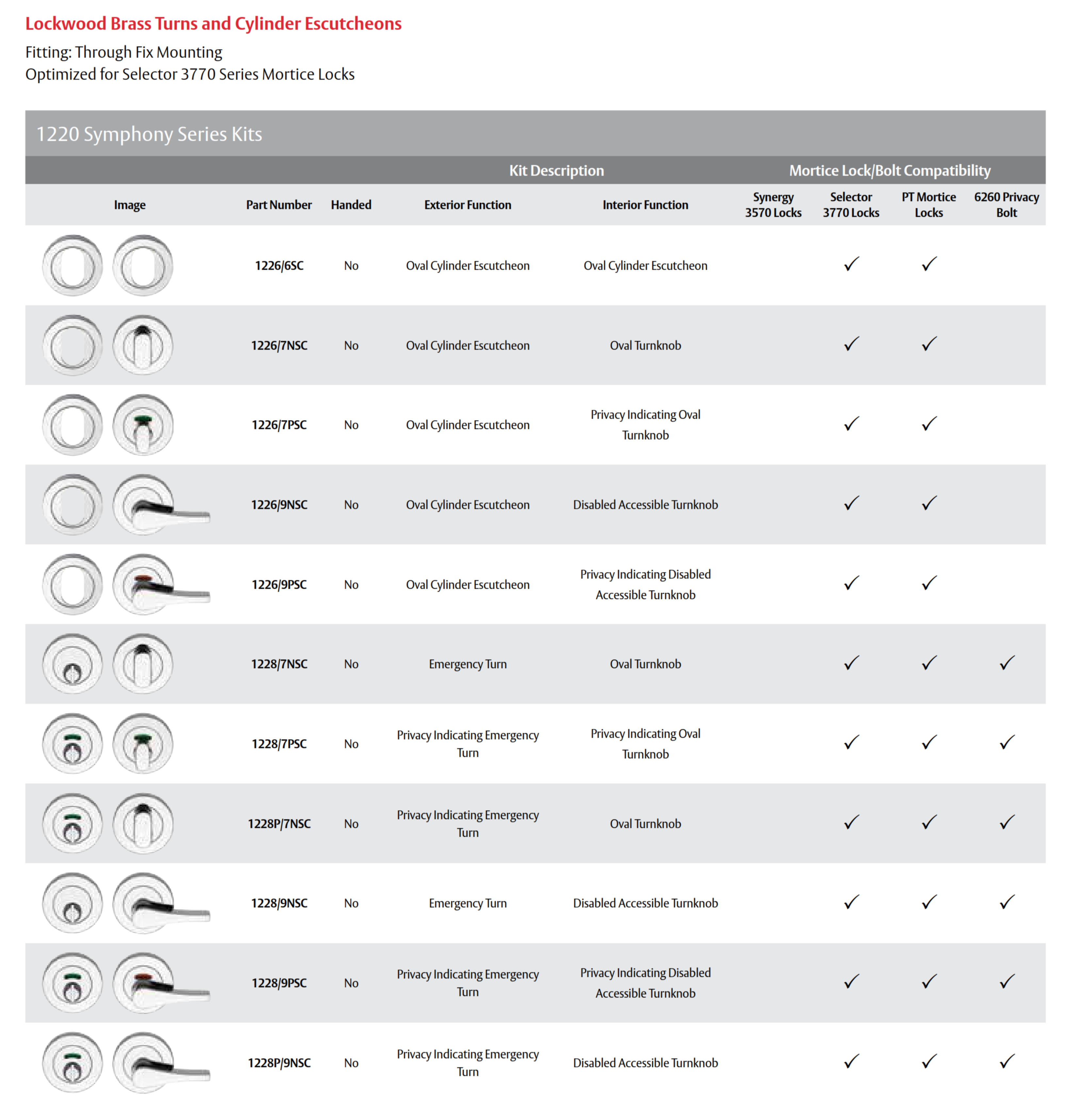

1220 Symphony Through Fix Escutcheon Kit Range
Common through fix kit combinations in the 1220 Symphony Series. All kits are non-handed and supplied with two M4 x 64mm stainless steel screws. Finish suffix omitted.
Frequently Asked Questions
- What is the difference between 1228P/7NSC and 1228/7PSC?
The 1228P/7NSC has a privacy indicator on the exterior Emergency Turn only - the interior Oval Turnknob is non-indicating. The 1228/7PSC has privacy indicators on both sides. Choose 1228/7PSC if an interior indicator is also required. - Is this compatible with the 6260 Privacy Bolt?
Yes. The 1228P/7NSC is confirmed compatible with the Lockwood 6260 Privacy Bolt. - Is this product available in other finishes?
This SKU is Satin Chrome Brushed only. Contact your Lockwood distributor for alternate finish availability. - Can this kit be used on doors thicker than 45mm?
Extended tail bars are available separately for doors thicker than 45mm.
Additional Information
- Exterior Privacy Indicator Only:
The privacy indicator is fitted to the exterior Emergency Turn escutcheon only. The interior Oval Turnknob is a standard non-indicating turnknob. The red/green signal is triggered by operation of the interior turnknob. - Single Finish SKU:
Supplied in Satin Chrome Brushed only. No colour variants available under this part number.
Lockwood branded products purchased new in Australia from authorised resellers are covered against defects in materials and workmanship for:
- Mechanical components: 25 years
1220 Symphony Series - Escutcheon Range Overview
Through Fix Mounting
Through fix kits are optimised for use with Lockwood Selector 3770 Series Mortice Locks. Supplied with two M4 x 64mm stainless steel screws for through fix installation.

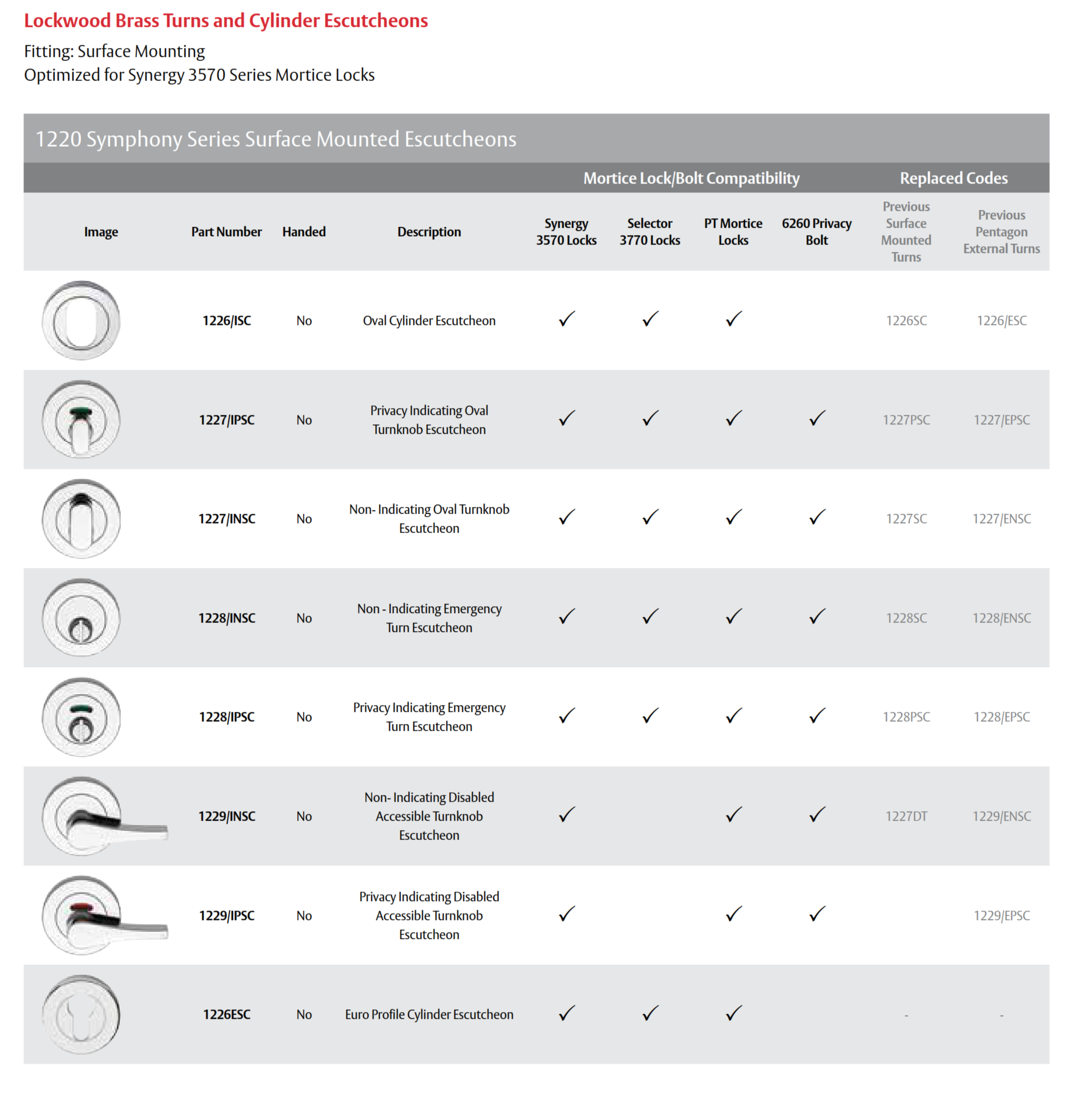

Surface Mounting
Surface mounted escutcheons are optimised for use with Lockwood Synergy 3570 Series Mortice Locks. Supplied with wood screws for surface fixing on either side of the door.
Lockwood Warranty Overview
Lockwood branded products are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty periods vary depending on product type, mechanical components, electrical elements, and finish category.
This overview summarises the structure of Lockwood warranty coverage. Full terms, exclusions and claim procedures are set out in the official Lockwood Warranty document.
Warranty Periods Summary
Finish Coverage Guide
- Everbrass finishes: up to 25 years against corrosion, tarnishing and discolouration.
- Stainless steel, polished stainless steel, chrome plating and anodised finishes: typically up to 10 years.
- Decorative finishes including Antique Copper, Architectural Bronze, Oil Rubbed Bronze, Aged Brass, Polished Brass, Satin Brass and related variants: typically up to 2 years against corrosion.
- Unlacquered brass finishes will naturally age and change appearance over time. This is not considered a defect.
- Tea staining of stainless steel is not covered where cleaning and maintenance have not been followed.
What the Warranty Covers
- Defects in material and workmanship during the applicable warranty period.
- Assessment by ASSA ABLOY to determine repair, replacement with the same or closest equivalent product, or refund of purchase price.
Common Exclusions
- Normal wear and tear.
- Misuse, abuse, accidental damage or use outside published specifications.
- Improper maintenance or failure to follow care instructions.
- Unauthorised modification, repair or use of non-genuine parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or pollution.
- Removal, refitment or associated labour charges.
- Products not originally sold in Australia through authorised channels.
Warranty Claim Process
- Retain proof of original purchase.
- Return the product through the original place of purchase where applicable.
- If claiming directly, obtain a case number before returning goods.
- Products must be securely packed and clearly identified.
- Warranty assessment determines repair, replacement or refund.
Australian Consumer Law
Lockwood warranties operate in addition to rights available under the Australian Consumer Law. Goods come with guarantees that cannot be excluded. Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage.
Where a product fails to meet acceptable quality standards and the failure does not amount to a major failure, the customer is entitled to repair or replacement.
