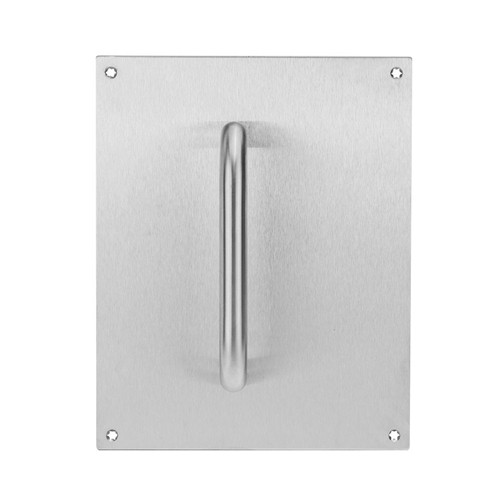

Lockwood P2 Back to Back Pull Handle – Satin Stainless Steel
The Lockwood P2 Back to Back Pull Handle is a commercial-grade door handle manufactured from 304 grade stainless steel with a satin finish. This handle is designed for concealed back-to-back installation on hinged and sliding doors where a clean aesthetic and accessibility compliance are required.
The handle features a 19mm diameter tubular grip with 41mm finger clearance, providing comfortable operation for all users including those with reduced grip strength or dexterity. The handle is AS1428.1 compliant, making it suitable for applications requiring compliance with Australian disability access regulations.
Supplied with optional fixing washers for sliding door installations, the P2 handle provides mechanical stability and secure mounting across a range of door types and thicknesses. The concealed fixing method eliminates visible screws on the door face, maintaining a professional appearance in commercial and residential settings.
Estimated Warehouse Dispatch
Usually ships in 3 business days
Usually ships in 3 business days
Disability Act Compliance (DDA)
- AS1428.1 compliant handle design to assist users with limited grip strength or dexterity.
- 41mm finger clearance meets accessibility requirements for comfortable operation.
- Suitable for applications requiring compliance with BCA and AS1428.1-2009.
- Compliance relates to handle design only and does not imply full building compliance.
Available Finish Options
Satin Stainless Steel
Finish selection does not affect functionality, compliance, or performance.
Key Features
- Back-to-back concealed fixing eliminates visible screws on door face.
- Manufactured from 304 grade stainless steel for corrosion resistance and durability.
- AS1428.1 compliant design for accessibility and disability access requirements.
- 41mm finger clearance provides comfortable grip for all users.
- 19mm diameter tubular handle with ergonomic rounded profile.
- Optional fixing washers supplied for enhanced stability on sliding doors.
- Satin finish provides low-maintenance surface suitable for high-traffic areas.
- Suitable for both hinged and sliding door applications.
- Commercial-grade construction for long-term reliability.
What's in the Box
- P2 pull handle (back-to-back pair)
- Concealed fixing hardware
- Optional fixing washers for sliding door applications
- Installation instructions
Suitable Uses
- Commercial entry and exit doors
- Office partition doors and meeting room doors
- Retail shop fronts and display areas
- Accessible toilet facilities and DDA-compliant areas
- Sliding door installations requiring pull handles
- Residential front and rear entry doors
- Apartment building common area doors
- Educational facilities and healthcare environments
Full Specifications
Frequently Asked Questions
- What is the difference between back-to-back and through-bolt fixing?
Back-to-back fixing uses concealed threaded rods that pass through the door, connecting the two handles without visible screws on the door face. Through-bolt fixing uses visible screws or bolts that pass completely through the door and handle. Back-to-back provides a cleaner aesthetic but requires accurate drilling alignment. - Can this handle be used on glass doors?
Yes, this handle can be fitted to glass doors provided the glass is toughened and pre-drilled with appropriate clearance holes for the fixing hardware. The optional fixing washers help distribute load on glass surfaces. Professional installation by a glazier or experienced fitter is recommended for glass door applications. - What does AS1428.1 compliance mean for this handle?
AS1428.1 is the Australian Standard for design for access and mobility. The P2 handle meets the requirements for finger clearance (41mm), grip diameter (19mm), and operational force, making it suitable for use by people with limited hand function or reduced grip strength. Compliance applies to the handle design only. - Why are fixing washers included for sliding doors?
Sliding doors experience lateral forces during opening and closing that can stress handle fixings. The optional fixing washers distribute load across a larger area and provide additional mechanical stability. They are particularly important on lightweight aluminium sliding doors where standard fixings may work loose over time. - Will the satin finish stain or require special maintenance?
Stainless steel develops tea staining when exposed to environmental contaminants and salt spray, particularly in coastal areas. This is a natural oxidation process and not a manufacturing defect. Regular cleaning with mild detergent and water prevents buildup. Tea staining is excluded from warranty coverage as it relates to maintenance rather than material failure.
Additional Information
- 304 Grade Stainless Steel:
304 stainless steel is the standard grade for architectural hardware in non-marine environments. It provides good corrosion resistance in typical urban and suburban conditions. For coastal installations within 1km of salt water, 316 marine-grade stainless steel handles should be considered to reduce tea staining and corrosion risk. - Installation Requirements:
Installation requires drilling through the door to accommodate the threaded fixing rods. Holes must be accurately aligned between both faces of the door. Door thickness must allow sufficient thread engagement for secure fixing. Typical installation requires a 25mm hole through the door and clearance holes in the handle mounting points. - Finger Clearance and Accessibility:
The 41mm finger clearance dimension is measured from the door face to the inside surface of the handle grip. This dimension is critical for AS1428.1 compliance and allows users to grip the handle without knuckles contacting the door surface. Insufficient clearance makes the handle difficult to operate for users with reduced dexterity. - Sliding Door Applications:
When fitted to sliding doors, the handle experiences higher lateral forces than on hinged doors. The optional fixing washers distribute these forces and prevent the fixing from working loose. Sliding door installations should use all supplied fixing washers and check fixing tightness periodically as part of routine maintenance. - Commercial vs Residential Use:
This handle is rated for commercial applications including high-traffic public buildings. The 304 stainless steel construction and concealed fixing method provide durability suitable for locations where handles are operated frequently throughout the day. Residential applications will typically exceed expected service life. - Satin Finish Characteristics:
The satin finish is achieved through abrasive brushing that creates directional grain lines on the stainless steel surface. This finish hides minor scratches and fingerprints better than polished finishes, making it suitable for high-touch applications. The grain direction is consistent along the handle length for aesthetic uniformity. - Maintenance and Cleaning:
Clean the handle regularly with mild detergent and water, wiping in the direction of the grain. Avoid abrasive cleaners, chlorine-based products, and steel wool which can damage the finish and compromise corrosion resistance. In coastal or industrial environments, increase cleaning frequency to prevent contaminant buildup. - Tea Staining on Stainless Steel:
Tea staining appears as brown discolouration on stainless steel and results from iron particles deposited on the surface from environmental sources. It does not indicate corrosion of the stainless steel itself and can usually be removed with proprietary stainless steel cleaners. Regular maintenance as per Lockwood care instructions prevents tea staining development.
Lockwood Warranty (Australia)
Lockwood branded products purchased new in Australia from authorised resellers are covered against defects in materials and workmanship for:
Lockwood branded products purchased new in Australia from authorised resellers are covered against defects in materials and workmanship for:
- Mechanical components: 25 years
- Stainless Steel and Chrome finishes: 10 years
Warranty excludes cosmetic finishes, normal wear and tear, misuse, unauthorised modification, corrosion from environmental exposure (including tea staining unless cleaned as per Lockwood care guide), and labour or freight costs.
This warranty operates in addition to rights available under the Australian Consumer Law.
Lockwood Warranty Overview
Lockwood branded products are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty periods vary depending on product type, mechanical components, electrical elements, and finish category.
This overview summarises the structure of Lockwood warranty coverage. Full terms, exclusions and claim procedures are set out in the official Lockwood Warranty document.
Warranty Periods Summary
Finish Coverage Guide
- Everbrass finishes: up to 25 years against corrosion, tarnishing and discolouration.
- Stainless steel, polished stainless steel, chrome plating and anodised finishes: typically up to 10 years.
- Decorative finishes including Antique Copper, Architectural Bronze, Oil Rubbed Bronze, Aged Brass, Polished Brass, Satin Brass and related variants: typically up to 2 years against corrosion.
- Unlacquered brass finishes will naturally age and change appearance over time. This is not considered a defect.
- Tea staining of stainless steel is not covered where cleaning and maintenance have not been followed.
What the Warranty Covers
- Defects in material and workmanship during the applicable warranty period.
- Assessment by ASSA ABLOY to determine repair, replacement with the same or closest equivalent product, or refund of purchase price.
Common Exclusions
- Normal wear and tear.
- Misuse, abuse, accidental damage or use outside published specifications.
- Improper maintenance or failure to follow care instructions.
- Unauthorised modification, repair or use of non-genuine parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or pollution.
- Removal, refitment or associated labour charges.
- Products not originally sold in Australia through authorised channels.
Warranty Claim Process
- Retain proof of original purchase.
- Return the product through the original place of purchase where applicable.
- If claiming directly, obtain a case number before returning goods.
- Products must be securely packed and clearly identified.
- Warranty assessment determines repair, replacement or refund.
Australian Consumer Law
Lockwood warranties operate in addition to rights available under the Australian Consumer Law. Goods come with guarantees that cannot be excluded. Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage.
Where a product fails to meet acceptable quality standards and the failure does not amount to a major failure, the customer is entitled to repair or replacement.
