Lockwood Nexion Vision Mechanical Entrance Lockset – Hakea Lever (28)
The Lockwood Nexion Vision Mechanical Entrance Lockset with Hakea lever (28) combines Australian-inspired design with the premium security and functionality of the Nexion Vision range.
The Hakea lever features a distinctive angular profile inspired by Australian native flora, offering a contemporary architectural statement while maintaining ergonomic comfort and operational ease. This Australian-designed lever reflects the unique character of native botanical forms, paired with the Vision plate styling for a cohesive modern entrance solution that celebrates local design heritage.
This lockset includes three security modes (Secure, Safety, Passage), SafetyRelease automatic unlocking, Lockout Release for convenient egress, LockAlert color-coded status indicator, and Kinetic Defence bump and pick resistance for comprehensive entrance security and convenience.
Estimated Warehouse Dispatch
Usually ships in 2-3 business days
Usually ships in 2-3 business days
Available Finish Options
Satin Chrome
Satin Chrome Pearl
Chrome Plate
Finish selection does not affect functionality, compliance, or performance.
Key Features
- Hakea (28) lever with Australian-inspired angular design and botanical influence
- Three security modes: Secure (locked both sides), Safety (locked outside, free exit inside), Passage (free both ways)
- SafetyRelease automatically unlocks inside handle upon entry to minimize lockout risk
- Lockout Release automatically unlocks outside handle when inside handle or snib is operated
- LockAlert color-coded status indicator: red (secure), yellow (safety), green (passage)
- Kinetic Defence bump and pick resistant cylinder technology
- High security cut-resistant 13mm brass deadlatch bolt
- Box strike with concealed crossgrain door frame strengthening screw
- Field-selectable handing: factory set for left-hand doors, easily converted to right-hand
- Can be keyed alike with other Lockwood door locks for single-key convenience
- Retrofits majority of doors with 54mm hole preparation
- 78,000 key combinations with 5-pin tumbler mechanism (6-pin upgradeable)
- Fire rated up to 1 hour when installed with optional fire rated kit (NXVFRKIT)
What's in the Box
- Nexion Vision lockset assembly with Hakea (28) lever and Vision plate
- Keys (quantity varies by keying specification)
- Box strike with concealed crossgrain strengthening screw
- Mounting hardware and screws
- Installation template
Suitable Uses
- Contemporary residential entrance doors requiring Australian-inspired design aesthetics
- New construction and renovation projects with native botanical design themes
- Multi-residential developments requiring distinctive modern architectural styling
- Light commercial applications where unique lever design enhances brand identity
- Properties coordinating with broader Lockwood Nero Collection hardware selections
- Fire-rated door applications when installed with optional NXVFRKIT fire rated kit
Full Specifications
Available Variants
Dimensions

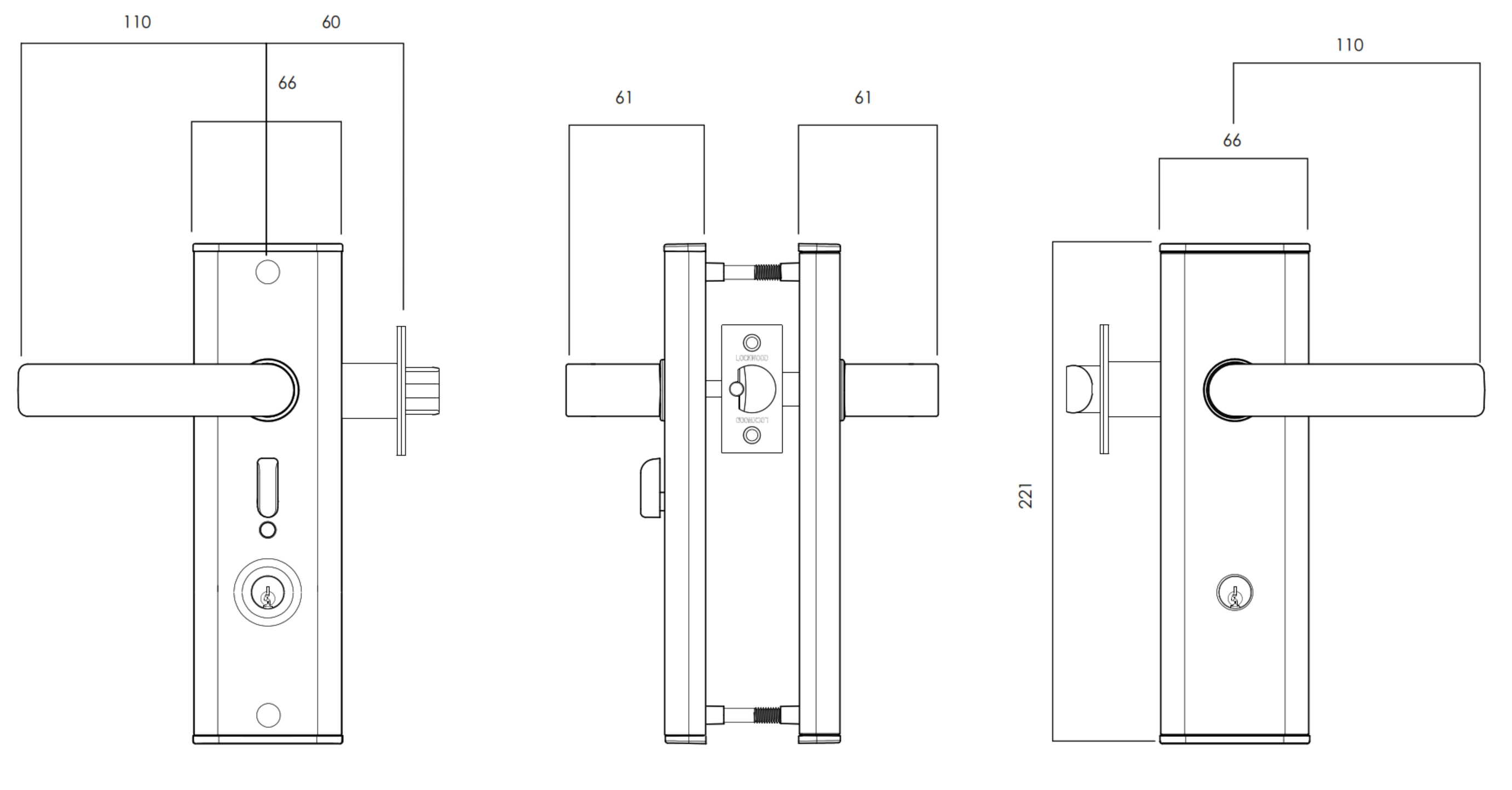

Nexion Vision entrance lockset showing Vision plate dimensions, lever position and overall assembly measurements.
Hakea lever (28) profile view showing overall length and projection measurements.
Hakea lever side elevation showing diameter and height specifications.
Hakea lever end view showing cross-sectional profile and mounting detail.
Frequently Asked Questions
- What makes the Hakea lever design distinctive?
The Hakea lever features an Australian-inspired angular profile reflecting the unique character of native botanical forms. This contemporary design offers modern architectural aesthetics while maintaining ergonomic comfort and operational reliability. - Can I mix different lever designs on the same project?
Yes. Nexion Vision locksets are available with multiple lever designs that can be coordinated across different door functions. All use the same Vision plate styling for visual consistency while offering design flexibility. - Is the Hakea lever suitable for fire rated doors?
Yes. When installed with the optional NXVFRKIT fire rated kit, Nexion Vision locksets with Hakea levers can be used on fire rated doors up to 1 hour rating. The fire rated kit is Vision plate compatible. - Can this lockset be keyed alike with other Lockwood products?
Yes. Nexion Vision locksets can be keyed alike with other Generation 6 Lockwood products including passage sets, privacy locks, and deadbolts for convenient single-key operation across multiple locks. - What is included in the Nero Collection?
The Lockwood Nero Collection includes the Hakea lever along with other Australian-inspired designs (Acacia, Saltbush) and contemporary levers (Summit, Spire, Element, Glide), offering coordinating passage sets, privacy locks, dummy sets, and complementary hardware across multiple product ranges.
Additional Information
- Australian Design Heritage:
The Hakea lever is part of Lockwood's Australian-inspired design collection, reflecting native botanical forms through contemporary architectural hardware. This design philosophy celebrates local flora while providing modern functionality and ergonomic performance. - Nero Collection Integration:
The Hakea lever is part of the Lockwood Nero Collection, which offers coordinating passage sets, privacy locks, dummy sets, and complementary hardware across multiple product ranges for comprehensive design coordination throughout your property. - Three Security Modes Explained:
Secure mode locks both inside and outside handles requiring key operation for total security. Safety mode locks the outside handle while allowing free exit from inside with lockout release to prevent accidental lockout. Passage mode provides free operation both ways without requiring a key. - Installation Planning:
Standard 60mm backset suits most door preparations. For doors requiring 70mm backset, order optional extended latch (part 530-222SC) separately. Verify door thickness is within 35-45mm range before ordering. - Finish Coordination:
All three finish options (Satin Chrome, Satin Chrome Pearl, Chrome Plate) are available across the Nexion Vision range, enabling consistent finish selection across different lever designs and door functions throughout your project.
Lockwood Warranty (Australia)
Lockwood branded products purchased new in Australia from authorised resellers are covered against defects in materials and workmanship for:
Lockwood branded products purchased new in Australia from authorised resellers are covered against defects in materials and workmanship for:
- Mechanical components: 25 years
Cosmetic finishes, normal wear and tear, misuse, unauthorised modification, corrosion and labour or freight costs are excluded.
This warranty operates in addition to rights available under the Australian Consumer Law.
