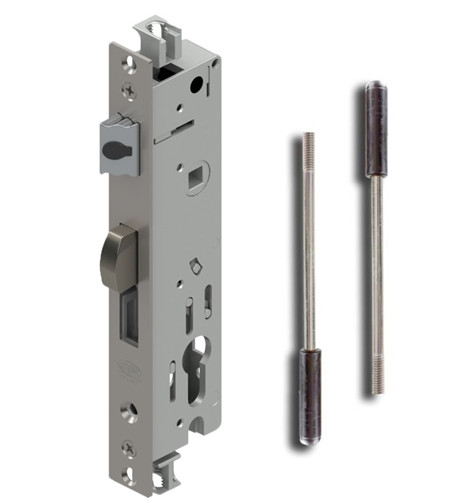

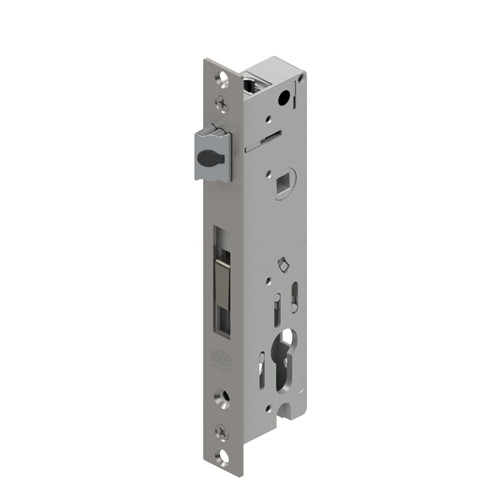

Lockwood Induro 4-Point Hinged Door Mortice Locks — LW7230L
The Lockwood Induro 4-Point Mortice Lock delivers higher security and better door sealing on hinged residential aluminium and large panel doors. A lift-bolt throws into the strike to compress the door for improved air/water performance, with optional shootbolts (rods kits) enabling true multi-point locking. The Induro range retains the Optimum installation footprint for straightforward retrofits.
Key Features
- Four locking points: latch + lift-bolt + top/bottom shootbolts (with rods kits).
- Lift-bolt compression improves sealing vs projection-bolt predecessors.
- Sequence-agnostic locking — can lock with or without shootbolts thrown.
- Reversible latch for field-selectable handing.
- Stainless steel faceplate; durable internal mechanism.
- Accepts 7.6 mm or 8 mm spindle; latch can be deadlocked by key.
- Backsets: 30 mm and 40 mm.
- Door thickness: 32–45 mm.
- Tested to AS4145.2 — Security S7 / Durability D7.
Operation & Lock Status
- Single-point (Latch): Handle-down retracts latch; door self-latches on close.
- 4-Point / Multi-point: Lift handle to throw lift-bolt and (if fitted) shootbolts; handle-down retracts all.
- Passage: Free access both sides.
- Safety: Snib from inside; key required from outside.
- Secure: Locked both sides; key required either side.
Specifications
- Item Code Family: LW72 Series
- Backsets: 30 mm (short or long throw), 40 mm (short throw)
- Deadbolt projection: Short 13 mm (30/40 mm BS), Long 23 mm (30 mm BS only)
- Furniture: Suits Palladium & Palladium Xtra Snib long plates (Xtra required for snib-lock)
- Keying: 5-pin or 6-pin fixed cam Euro profile cylinders (ordered separately)
- Finish supplied: Brushed stainless steel faceplate
Estimated Warehouse Dispatch
3 Days
Item Code Family — Lockwood Induro 4-Point Mortice Locks
Accessories & Spares
Additional Information
- Retrofit notes: Same door-side footprint as Optimum; strikes/jamb cut-outs may differ due to lift-bolt vs projection-bolt.
- Furniture: Palladium Xtra Snib required to use the snib-lock function.
- Shootbolts: Use rods kits (LW7230S/A10 or LW7240S/A10) or order P33096/P84017 as needed.
- Strikes: Select strike kits to tune seal compression and performance; strike plates are not included with the lock pack.
- Keying: Suits 5-pin/6-pin fixed cam Euro cylinders (ordered separately).
Warranty
- General Warranty: 25 years on mechanical parts and workmanship
- Electrical/Electronic Components: 3 years (excludes PADDE, electric mortice locks & batteries)
- PADDE & Electric Mortice Locks: 5 years
- Keys: 12 months
- Finishes: Everbrass 25 yrs; Stainless/Chrome/Anodised 10 yrs; PVD incl. VIVID 10 yrs; Symmetry 5 yrs; Decorative finishes 2 yrs; natural brass ageing excluded
- Stainless Steel Care: Warranty excludes tea staining if not maintained per care instructions
