Lockwood 002-1L1SP Single Cylinder Deadlatch — Lever, Timber Frame Strike, Satin Chrome Pearl
The Lockwood 002-1L1SP is a single cylinder deadlatch with lever handle and timber frame strike, finished in Satin Chrome Pearl. Designed and manufactured in Australia, the Lockwood 002 Series combines market-leading performance, Safety Release, and LockAlert features with robust construction. This model is suitable for inward opening timber framed doors and can be retrofitted to replace an existing 001 deadlatch.
Warranty
Key Features
- Single cylinder deadlatch with lever and timber frame strike
- Finish: Satin Chrome Pearl (SP)
- High-security stainless steel bolt (18mm projection)
- 11 concealed anchorage points and reinforced frame strengthener
- Bolt hold-back function (activated by external key or internal lever)
- Supplied individually keyed with 2 keys
- 78,000 keying combinations
- Compatible with restricted & master key systems
- Handing: Reversible
- Retrofits existing 001 Deadlatch installations
Fire Door Approval Context
Lockwood 002 deadlatches appear on some fire door manufacturers’ approved hardware schedules, including public E-Core documentation and a Firecore hardware list. That gives the 002 range genuine fire door relevance when it is matched to an approved doorset.
The key point is that approval is doorset-specific. Fire door suitability must be confirmed against the exact fire door manufacturer’s current hardware schedule, the tested door type, frame, strike preparation, handing and installation method before specification or installation.
In practical terms, a Lockwood 002 deadlatch being accepted on one approved fire door assembly does not automatically mean every 002 variation is approved on every fire door. The exact lock, door and certification path still need to match.
Learn more in Terry’s guide here: Apartment Fire Doors on the Gold Coast - What Locks & Smart Locks Are Actually Compliant?
Important: If you are not sure whether your selected Lockwood 002 deadlatch is approved for a particular fire door, Contact Us before ordering.
Standards & Compliance
- Tested in accordance with AS4145.2-1993
- Door thickness range: 30–45 mm
- Backset: 60mm
- Case: High purity zinc alloy
- Cylinder: Brass barrel, 5 pin tumbler mechanism
Specifications
- Item Code: 002-1L1SP
- Series: Lockwood 002 Single Cylinder Deadlatch
- Function: Lever with timber frame strike
- Finish: Satin Chrome Pearl (SP)
- Pack Type: Trade Pack
- Keys: Supplied with 2 keys
- Key Blank: KB2015P

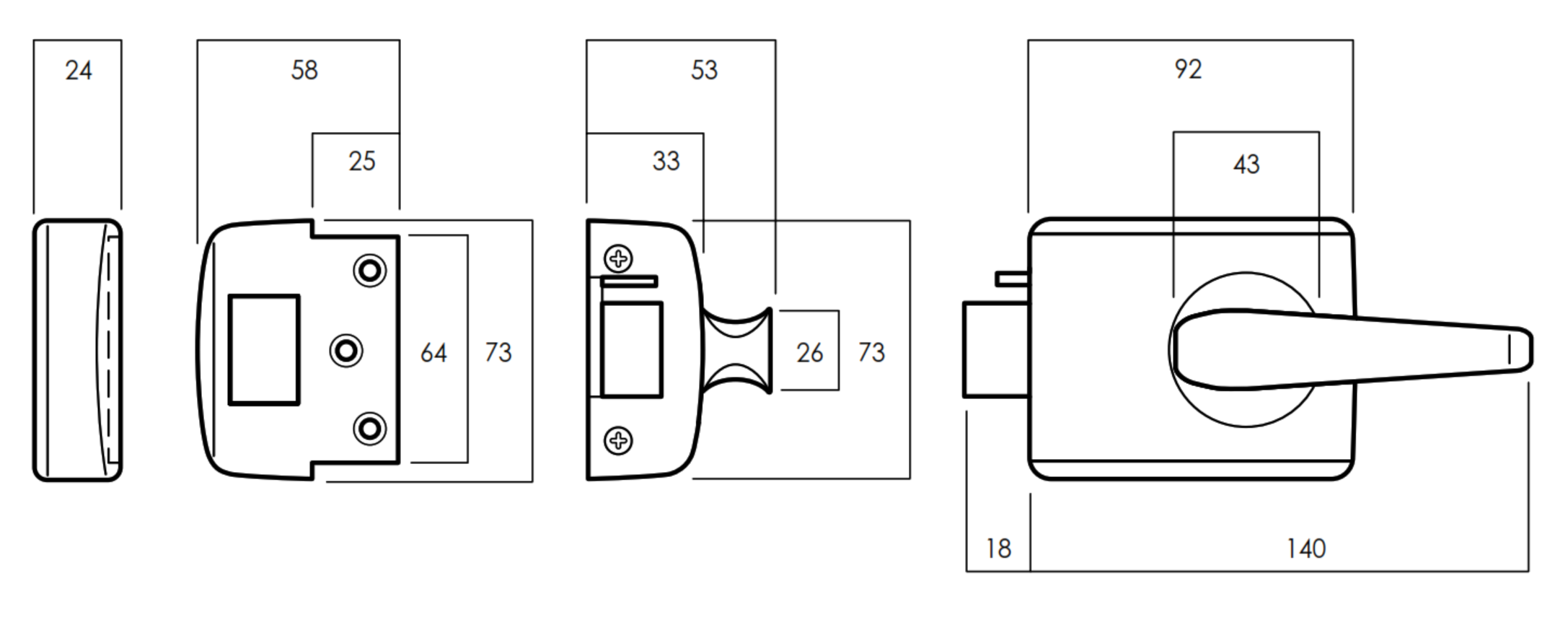

Dimensions
Suitable Uses
- Inward opening timber framed doors
- Residential security applications
- Situations where lever handle operation is preferred
- Compatible with Lockwood keying systems
Dispatch & Returns
- Estimated Warehouse Dispatch: 2 business days
Download PDF Resources
|
Lockwood Rimlocks Catalogue |
|
Lockwood 25 Year Mechanical Warranty (Conditions Apply) |
Additional Information
The Lockwood 002-1L1SP Deadlatch lever variant is designed for inward opening timber framed doors, providing the convenience of lever operation with the strength and durability of the Lockwood 002 Series. With a stainless steel bolt, concealed anchorage, holdback function, and compatibility with restricted keying, it is a trusted solution for Australian homes.
Item Code Family - Lockwood 002 Single Cylinder Deadlatch Range
This table shows the Lockwood 002 single cylinder deadlatch range across knob and lever formats, with timber frame, metal frame and open-out strike configurations. Select the correct model to suit the door frame type and door opening direction.
