Interlock Flush Bolt - Recess Mounted - No Rod - Satin Chrome
The Interlock Flush Bolt Recess Mounted model is designed to be installed into a routed recess in an aluminium door stile to provide a smooth, flush appearance.
Model P3513VSC is supplied in Satin Chrome finish and is supplied without rod. Compatible flush bolt rods must be purchased separately.
This model forms part of the Interlock Flush Bolt range used for bolting aluminium doors and windows.
20 Days
This product is a special order and is not returnable.
Available Finish Options
Satin Chrome
Finish selection does not affect functionality, compliance, or performance.
Key Features
- Recess mounted flush bolt body.
- Sixteen millimetre bolt throw.
- Die-cast zinc body construction.
- Compatible with seven millimetre diameter plated steel rods.
- Designed for aluminium doors and windows.
- Rod not included.
Specifications
Dimensions

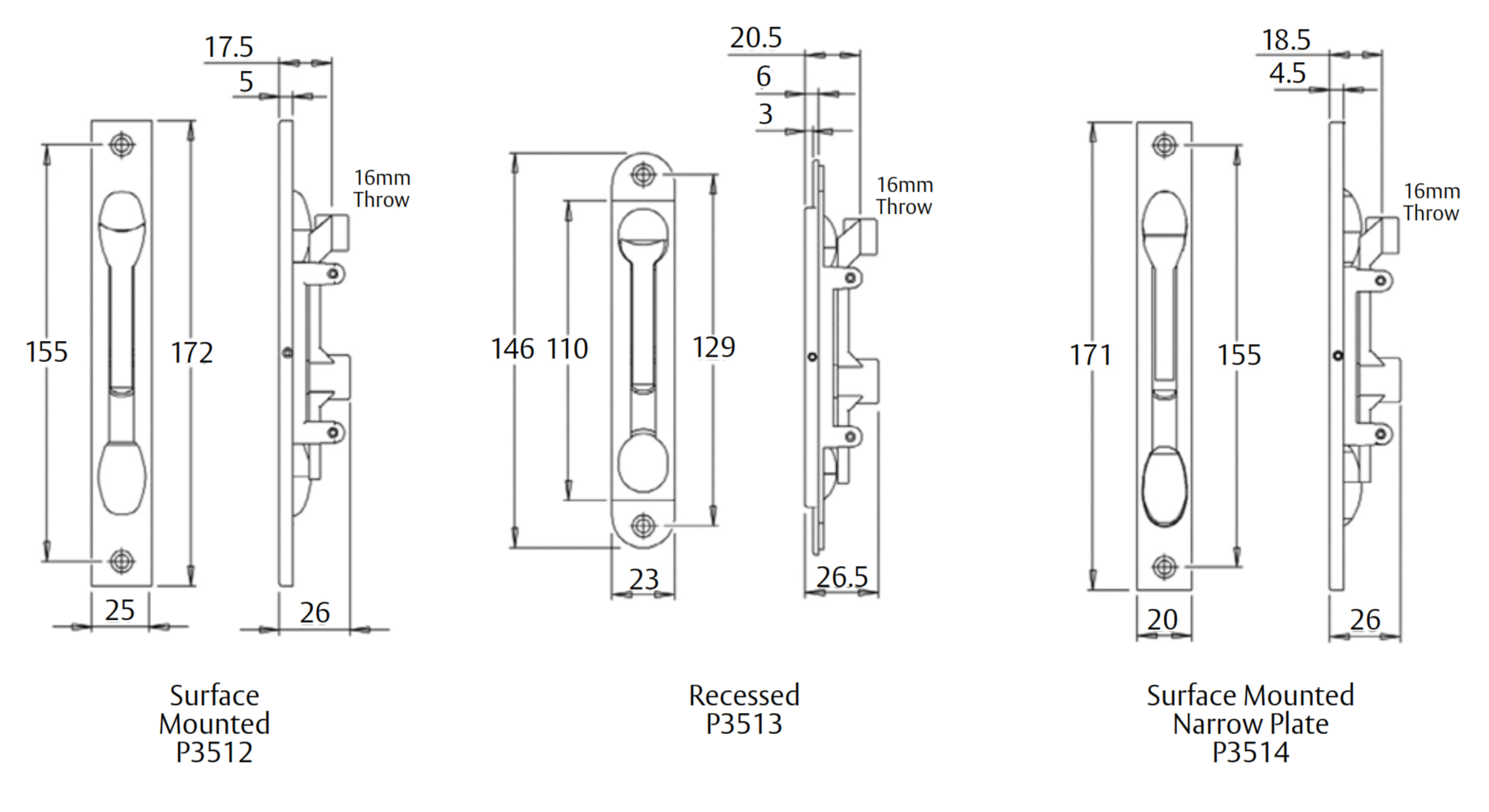

All dimensions shown are in millimetres. Refer to the manufacturer drawing for recess depth, plate height, bolt throw and fixing hole positions.
Flush Bolt Range Comparison
Frequently Asked Questions
Does this include the bolt rod?
No. This model is supplied without rod.
What bolt throw does this model provide?
Sixteen millimetres.
Is this suitable for timber doors?
Suitability for timber is not stated in the manufacturer documentation. This model is specified for aluminium doors and windows.
Additional Information
- No fire rating stated in manufacturer documentation.
- Rod and tip must be selected separately to suit installation height.
- Ensure correct recess depth before installation.
ASSA ABLOY branded products are covered by a 10 Year manufacturer warranty against defects in materials and workmanship, subject to limitations.
ASSA ABLOY Warranty Overview
ASSA ABLOY branded products sold in Australia are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty coverage varies depending on mechanical components, electronic components, cylinders and finish categories.
This overview summarises the structure of ASSA ABLOY warranty coverage. Full terms, exclusions and claim procedures are set out in the official ASSA ABLOY Warranty document.
Warranty Periods Summary
Finish & Material Notes
- Stainless steel does not mean stain-free. Tea staining is not covered where cleaning and maintenance guidelines have not been followed.
- Cosmetic, decorative and appearance damage is not covered.
- Battery failure or battery leakage damage is not covered.
What the Warranty Covers
- Defects in material and workmanship within the applicable period.
- Assessment by ASSA ABLOY to determine repair, replacement with the same or closest equivalent product, or refund of purchase price.
- Remedy determined at ASSA ABLOY’s discretion.
Common Exclusions
- Normal wear and tear.
- Misuse, abuse or installation outside published technical specifications.
- Improper maintenance or neglect.
- Unauthorised modification or repair.
- Use of non-genuine ASSA ABLOY parts or substitute components.
- Exposure to corrosive environments including coastal air, salt spray, chemicals, contamination or high humidity.
- Removal, refitment, freight or labour charges.
- Second-hand or imported products not sold through authorised Australian channels.
Warranty Claim Process
- Retain proof of original purchase.
- Return the product to the original authorised retailer where applicable.
- If claiming directly, obtain a case number before returning goods.
- Securely package returned goods and clearly reference the case number.
- Warranty assessment determines repair, replacement or refund.
Australian Consumer Law
ASSA ABLOY warranties operate in addition to rights available under the Australian Consumer Law. Goods come with guarantees that cannot be excluded. Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage.
Where a product fails to meet acceptable quality standards and the failure does not amount to a major failure, the customer is entitled to repair or replacement.
