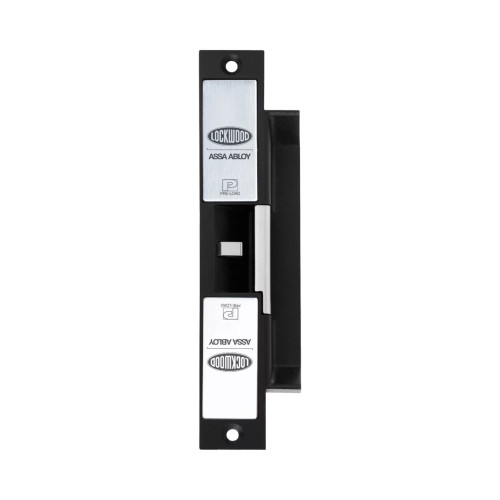

Lockwood ES9100 Pre-Load Electric Strike with Door Position Monitoring — 10-30V DC, Fully Monitored
The ES9100 is a premium pre-load capable electric strike that adds integrated Door Position Monitoring (DPS) to the proven ES9000 platform. It runs on 10-30 V DC, delivers 1300 kg static strength, and operates reliably with up to 25 kg of side-load (pre-load) caused by seals, air pressure, or early pull on the door. The body is pre-drilled for 25 mm, 50 mm or 75 mm extension lips for jamb alignment.
Warranty
- 5-Year Tricare Warranty (Padde Series)
- Lockwood 25-Year Mechanical Warranty
Key Features
- Integrated DPS reed switch (door position)
- Pre-load operation up to 25 kg — works under door pressure/seals
- 1300 kg static holding force; quiet keeper
- Multi-voltage 10-30 V DC; continuously rated solenoid
- Fully monitored: solenoid, latch/lock status + door position
- Non-handed; stainless steel construction; IP54 weather resistance
- Tested in excess of 2,000,000 cycles
- Body pre-drilled for 25/50/75 mm extension lips
Specifications
- Item Code: ES9100
- Voltage: 10-30 V DC
- Typical Current: ~250 mA @12 V / ~130 mA @24 V
- Holding Force: 1300 kg
- Monitoring: Door Position (reed), Latch/Lock status, Solenoid (NO/NC)
- Endurance: >2,000,000 cycles (laboratory tested)
- Environment: IP54; -20 °C to +60 °C
- Body: Stainless steel; non-handed; quiet keeper
- Lip Provision: Pre-drilled for 25/50/75 mm extension lips
What's In The Box
- Lockwood ES9100 strike body
- Mounting tabs and fixing screws
- Installation instructions
Suitable Uses
- High-traffic commercial entrances with seals or HVAC pressure
- Monitored access doors requiring DPS feedback
- Fire-rated door sets (see Fire Rating & Testing)
Fire Rating & Testing
- Fire-rated up to 4 hours when installed on approved fire-door assemblies with compatible hardware.
- Engineered to operate under pre-load conditions typical of fire and smoke doors where seals and pressure create side load on the keeper.
- Durability tested beyond 2 million operations to support life-safety door cycles.
- Follow the door manufacturer’s certification and use specified fixings to maintain the rating.
Dispatch & Returns
- Estimated Warehouse Dispatch: Usually ships in 4 business days
Download PDF Resources
|
Lockwood Electromechanical Door Solutions Catalogue |
|
Lockwood 25-Year Mechanical Warranty |
Item Code Family
Accessories (Optional)
Additional Information
Following on from the extremely popular ES9000 Pre-Load Electric Strike, the ES9100 delivers all of the ES9000's core performance and adds integrated Door Position Monitoring (DPS) via a reed switch. The ES9100 body is pre-drilled for 25 mm, 50 mm or 75 mm extension lips if required. Designed for harsh commercial environments, it will operate with up to 25 kg of pre-load on the keeper — whether from pulling on the door before it unlocks, warped or drooping doors, fire-door seals, or differential air pressure created by HVAC systems. Standard features include multi-voltage 10-30 V DC and field-changeable settings from fail safe to fail secure. Built to last, the ES9100 has been tested in excess of 2 million cycles and offers a premium locking solution with unique capabilities.
