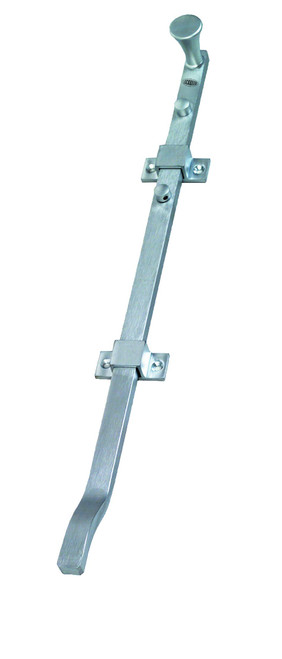

Dorma Visible Fix Offset Panic Bolt 2790 x 600 mm – Satin Nickel Pearl
Key Features
- Surface mounted visible fix offset panic bolt.
- Designed for the inactive leaf of double door installations requiring a robust bolt.
- 20 mm offset bolt design.
- 600 mm bolt length.
- 50 mm bolt throw.
- Visible fixing.
- Commercial grade construction.
- Includes floor plates.
- Satin nickel pearl finish.
Specifications
- Item Code: DO2790X600OFFSNP
- Product Type: Visible fix offset panic bolt
- Application: Inactive leaf of double doors
- Bolt Length: 600 mm
- Bolt Throw: 50 mm
- Offset: 20 mm
- Fixing Type: Visible
- Grade: Commercial
- Finish: Satin Nickel Pearl
What's In The Box
- 1 × 600 mm offset panic bolt (visible fix)
- Floor plates
Suitable Uses
- Inactive leaf of commercial double door sets.
- Installations requiring a stronger bolt than standard flush bolts.
- Situations where visible fasteners are acceptable and fast servicing access is preferred.
Dimensions
Frequently Asked Questions
- What door is this panic bolt designed for?
It is intended for the inactive leaf of double doors where a strong surface mounted bolt is required. - What does the 20 mm offset mean?
The bolt is necked so the throw line is offset by 20 mm, helping alignment on certain door and frame geometries. - What is the difference between visible fix and concealed fix?
Visible fix bolts have exposed fasteners, which can make installation and servicing simpler, while concealed fix bolts hide fasteners for a cleaner appearance.
Additional Information
- Visible fix panic bolts are commonly chosen where quick installation and easier maintenance access are priorities.
- On double doors, the inactive leaf is typically secured top and bottom, allowing the active leaf to latch into it.
- Correct floor plate placement is important so the bolt engages cleanly without binding.
dormakaba Warranty
dormakaba Australia Pty Ltd (ABN 14 067 969 466) provides the following warranty on all dormakaba branded products sold in Australia. This warranty is in addition to, and does not limit, your rights under the Australian Consumer Law.
Warranty Summary
How to Make a Claim
For full returns and warranty claim procedures, visit our
Returns & Warranty page
� this is kept up to date and is the authoritative reference for current claim steps.
- Report the defect promptly. Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries (including Gold Coast Smart Locks) as your point of sale in the first instance. Claims must be lodged no later than 1 month from the date the defect becomes obvious.
- Prepare your documentation. You will need proof of purchase (invoice or receipt), the date of delivery or installation, your name and address, and any maintenance records relevant to the product.
- Make the product available for inspection. dormakaba requires adequate access to the goods, fittings, and fixtures to assess any warranty claim and carry out repairs. If no fault is found, dormakaba's standard costs for inspection, service, and testing apply.
- Warranty work is conducted during normal business hours � 8:00am to 5:00pm, Monday to Friday.
Note: The expense of making a warranty claim (including transport and access costs) is borne by the purchaser.
Exclusions
This warranty does not cover:
- Damage or defects caused by misuse, abuse, neglect, or failure to follow dormakaba's selection, installation, and maintenance instructions
- Fair wear and tear
- Damage arising from installation not carried out by dormakaba or its authorised agents
- Damage caused to the structures the product is installed in, where installation was not by dormakaba or its authorised agents
- Damage caused by circumstances beyond dormakaba's control
- Defects within acceptable industry variances
- Products used other than for their intended purpose
- Damage from exposure to abnormal conditions, including but not limited to extreme temperature, water, fire, humidity, pressure, or stress
- Products that have been modified, built on, or repaired by a third party
- Products not maintained in accordance with dormakaba's care, cleaning, and maintenance instructions (as amended from time to time on the dormakaba website)
- Routine maintenance items (the purchaser's responsibility)
- Products installed, maintained, or operated other than in accordance with dormakaba's instructions
- Overhaul, replacement, or repair work carried out prior to dormakaba's approval of a warranty claim
Important Notes
Australian Consumer Law
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure, and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure. Nothing in this warranty limits or excludes these statutory rights.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure, and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure. Nothing in this warranty limits or excludes these statutory rights.
Replacement & Repair
dormakaba reserves the right to replace defective parts with components of similar quality, grade, and composition where an identical part is unavailable. Refurbished parts or goods of the same type may be used. For discontinued or unavailable products, dormakaba may substitute an equivalent current product. All products replaced under warranty become the property of dormakaba.
dormakaba reserves the right to replace defective parts with components of similar quality, grade, and composition where an identical part is unavailable. Refurbished parts or goods of the same type may be used. For discontinued or unavailable products, dormakaba may substitute an equivalent current product. All products replaced under warranty become the property of dormakaba.
