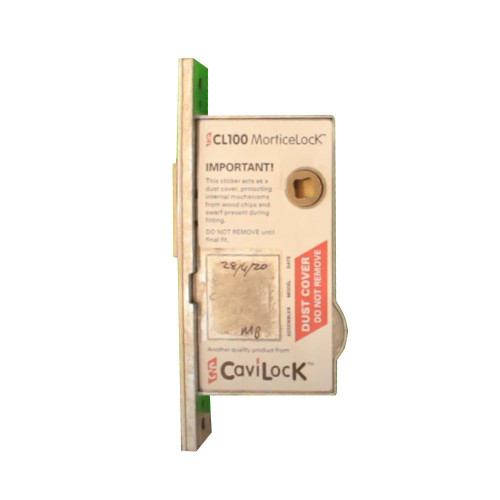

Cavilock CL100 Sliding Door Lock Latching Only with Edge Pull and Flush Turn – Satin Chrome
The Cavilock CL100 is a latching only sliding door lock designed for cavity slider doors in both residential and commercial applications. It features an integrated edge pull and internal flush turn, allowing the door to be retrieved when fully recessed into the cavity.
The lock accepts 7.6 mm square spindles (single or split), has a non-handed lock case, and comes in a satin chrome finish.
Key Features
- Latching only sliding door lock for cavity applications.
- Integrated edge pull allows door retrieval when fully slid in.
- Internal flush turn for simple latch control.
- Accepts 7.6 mm square spindle (single or split).
- Non-handed lock case for flexible installation.
- Satin chrome finish for corrosion resistance and aesthetic match to hardware.
Dimensions
| Backset | 56 mm |
| Lock Pitch | 93.5 mm |
| Face Plate Length | 176 mm |
| Face Plate Width | 25 mm |
| Face Plate Thickness | 7 mm |
Specifications
- Item Code: CL100A9006SC
- Brand: Cavilock
- Lock Type: Sliding door latching lock
- Spindle Type: 7.6 mm square
- Handing: Non handed
- Turnsnib: Yes
- Passage Function: Yes
- Finish: Satin Chrome
What's In The Box
- Cavilock CL100 latching lock body
- Integrated edge pull
- Internal flush turn
Suitable Uses
- Residential cavity sliding doors.
- Commercial internal sliding door applications.
Cavilock CL100 Sliding Door Locks – Item Code Family
Download PDF Resources
Cavilock CL100 Lock Configurations
Frequently Asked Questions
- Is this suitable for cavity sliding doors?
Yes, it is designed for that application. - Does it include a key cylinder?
No, this is a latching only lock with flush turn. - Is the lock handed?
No, the lock case is non handed.
Additional Information
- Edge pull allows doors to be retrieved when fully recessed into cavities.
- Commonly specified for internal sliding doors without keyed locking.
- All CL100 variants share the same lock body dimensions.
