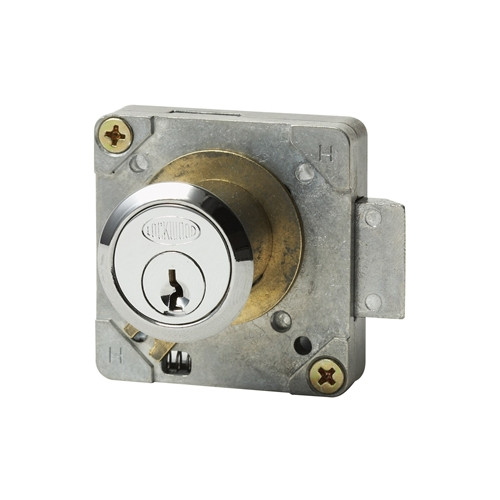

Lockwood C4 693 5 Pin Cupboard Lock B Configuration K5D - Satin Chrome
The Lockwood C4 693 Cupboard Lock is a compact and secure locking solution designed for cupboards, drawers, and cabinet applications.
This model features a 5 pin K5D keyed alike configuration with a "B" configuration cam setup, making it ideal for drawer positioning and applications requiring consistent keying across multiple locks.
Usually ships in 3 business days
Key Features
- 5 pin tumbler mechanism for improved security
- K5D keyed alike configuration for convenience
- "B" configuration cam - suitable for drawer applications
- Compact and durable cupboard lock design
- Satin Chrome finish for modern appearance
- Reliable operation for everyday use
Suitable Uses
- Drawer units
- Cabinets and cupboards
- Office furniture
- Light commercial storage applications
Specifications
Dimensions
Compact cupboard lock format designed to suit standard cabinet and drawer installations.
Frequently Asked Questions
What does K5D mean?
K5D allows multiple locks to be operated using the same key.
What is B configuration?
B configuration is typically used for drawer applications, with a different cam orientation compared to A configuration.
Is this suitable for cupboards?
This model is primarily suited for drawers, while A configuration is generally used for cupboards.
Additional Information
- Part of the Lockwood C4 cupboard lock range
- Designed for consistent keying across installations
- Ideal for furniture and storage security
Lockwood branded products purchased new in Australia from authorised resellers are covered against defects in materials and workmanship for:
- Mechanical components: 25 years
- Electrical and electronic components: 2 years (excluding batteries)
Lockwood Warranty Overview
Lockwood branded products are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty periods vary depending on product type, mechanical components, electrical elements, and finish category.
This overview summarises the structure of Lockwood warranty coverage. Full terms, exclusions and claim procedures are set out in the official Lockwood Warranty document.
Warranty Periods Summary
Finish Coverage Guide
- Everbrass finishes: up to 25 years against corrosion, tarnishing and discolouration.
- Stainless steel, polished stainless steel, chrome plating and anodised finishes: typically up to 10 years.
- Decorative finishes including Antique Copper, Architectural Bronze, Oil Rubbed Bronze, Aged Brass, Polished Brass, Satin Brass and related variants: typically up to 2 years against corrosion.
- Unlacquered brass finishes will naturally age and change appearance over time. This is not considered a defect.
- Tea staining of stainless steel is not covered where cleaning and maintenance have not been followed.
What the Warranty Covers
- Defects in material and workmanship during the applicable warranty period.
- Assessment by ASSA ABLOY to determine repair, replacement with the same or closest equivalent product, or refund of purchase price.
Common Exclusions
- Normal wear and tear.
- Misuse, abuse, accidental damage or use outside published specifications.
- Improper maintenance or failure to follow care instructions.
- Unauthorised modification, repair or use of non-genuine parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or pollution.
- Removal, refitment or associated labour charges.
- Products not originally sold in Australia through authorised channels.
Warranty Claim Process
- Retain proof of original purchase.
- Return the product through the original place of purchase where applicable.
- If claiming directly, obtain a case number before returning goods.
- Products must be securely packed and clearly identified.
- Warranty assessment determines repair, replacement or refund.
Australian Consumer Law
Lockwood warranties operate in addition to rights available under the Australian Consumer Law. Goods come with guarantees that cannot be excluded. Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage.
Where a product fails to meet acceptable quality standards and the failure does not amount to a major failure, the customer is entitled to repair or replacement.
Official Warranty Document
