Brava Urban Single Cylinder Deadbolt – TE2 Profile
The Brava Urban Single Cylinder Deadbolt – TE2 Profile is a domestic-grade deadbolt designed for hinged residential doors, featuring key operation externally and an internal thumbturn for exit.
This model uses a Silca TE2 keyway with a 5-pin cylinder assembly, making it suitable for standard domestic keying where restricted key systems are not required. An adjustable 60 mm / 70 mm backset allows compatibility with common Australian door preparations.
Key Features
- Single cylinder deadbolt with internal thumbturn.
- Domestic-grade construction for residential hinged doors.
- Silca TE2 keyway with 5-pin cylinder assembly.
- Saw-resistant solid deadbolt.
- Adjustable backset for 60 mm or 70 mm installations.

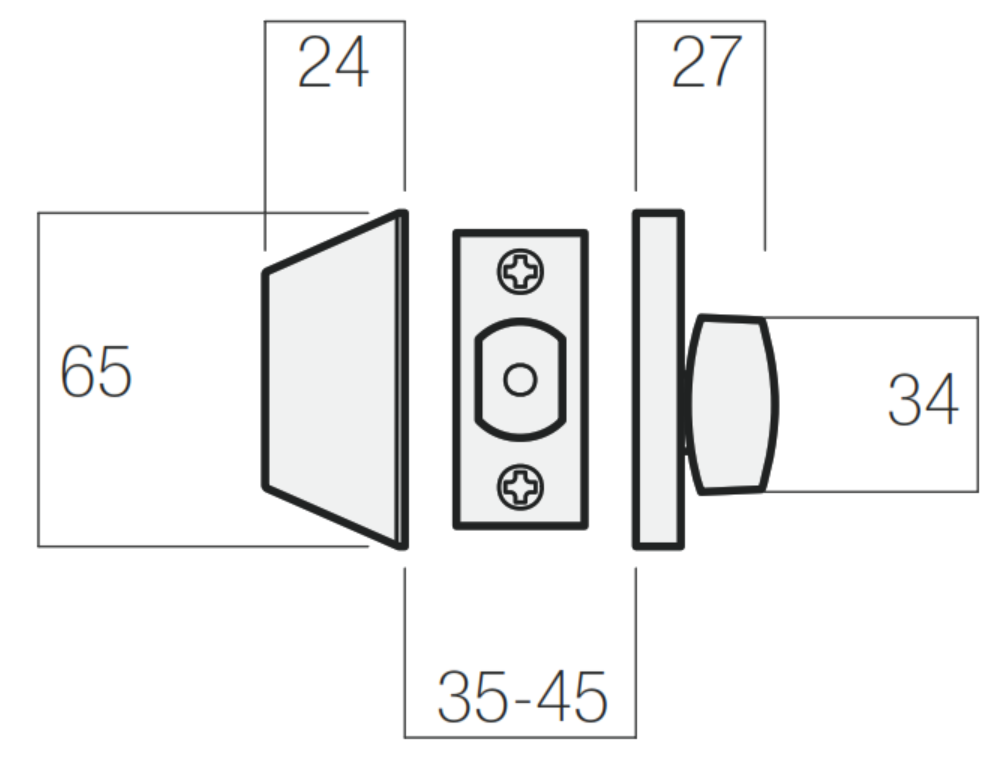

Specifications
What’s in the Box
- 1 × external keyed cylinder
- 1 × internal thumbturn assembly
- 1 × solid deadbolt
- Adjustable latch (60 mm / 70 mm)
- Strike plate
- 1 × door thickness spacer
- Mounting screws and fixing hardware
- 2 keys included
Available Colour Variants
-
Antique Copper
200BAC -
Polished Brass
200BPB -
Polished Stainless Steel
200BPSS -
Satin Stainless Steel
200BSSS
Brava Urban Deadbolts – Item Code Family
Frequently Asked Questions
Is this suitable for exit doors?
Yes. The internal thumbturn allows exit without a key, but compliance with local fire and egress requirements should always be confirmed.
Can this be keyed alike to LW4 locks?
No. The TE2 keyway is not compatible with LW4 restricted key systems.
Does this suit timber and aluminium doors?
Yes, provided the door is hinged and falls within the specified thickness range.
Additional Information
- Single cylinder deadbolts are commonly preferred on residential exit doors.
- The TE2 keyway is suited to standard domestic keying where restricted systems are not required.
- Care should be taken when retrofitting to ensure correct backset selection.
- Door alignment and strike positioning affect long-term deadbolt performance.
