Available Variants: Colour - Polished Brass, Polished Stainless Steel, Satin Stainless Steel
BRAVA Urban 100C-BA series entrance knobset on Silca TE2 keyway. Domestic grade entrance knobset.
Entrance function
- Outside opened by knob when free, key unlocks & retracts the latch.
- Inside opened by knob at all times, turning inside knob releases push button.
- Push button locks outside knob.
Additional info
Silca TE2 keyway.
Rekeyable to other TE2 profile locks.
Cylindrical fixing.
Spherical knob design.
Finished in polished brass.
Supplied boxed (and colour coded) with mounting hardware.

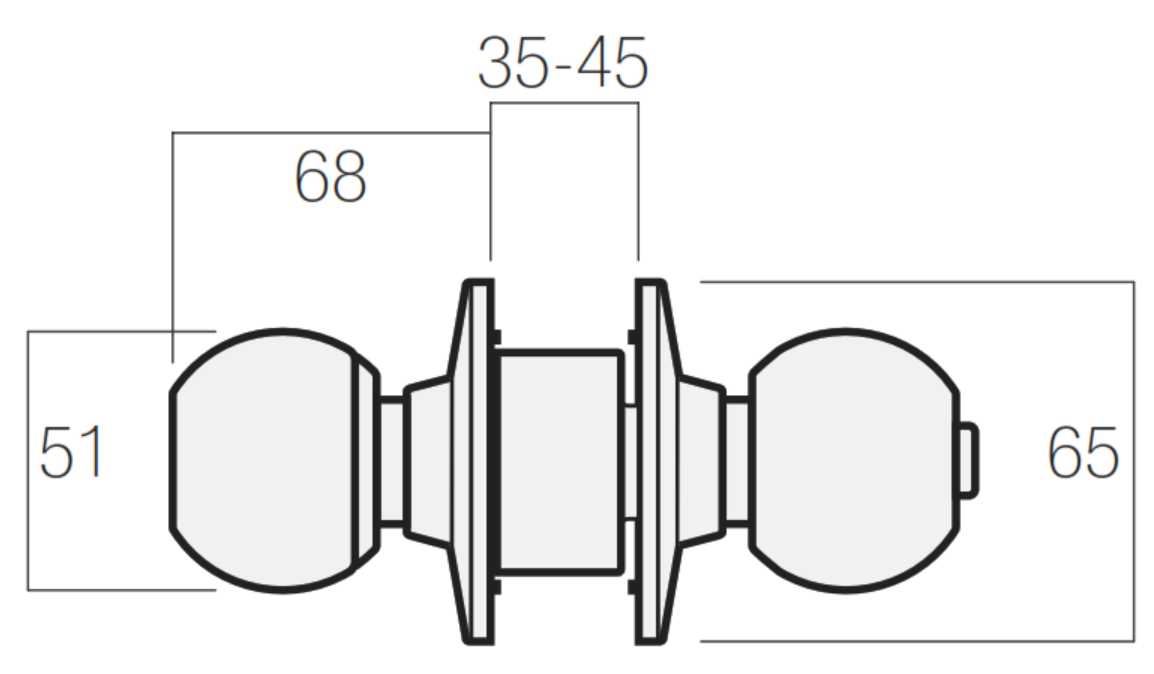

| Door thickness | 35-45mm |
| Backset | adjustable 60/70mm |
| max. Lever / knob projection distance may not include turnsnib | 64mm |
| Strike | 70mm x 27mm x 1.2mm |
| Latch | adjustable 60/70mm |
| Latch face plate | 57mm x 25mm |
| Cylinder | TE2 profile |
| Door handing | Non-handed knobs |
| Rose | 68mm |
Finish: Polished Brass
Suits Door Thickness: 35 mm to 45 mm
Backset: 60/70 mm Adjustable
Rose Diameter (in mm): 68
Key Profile: TE2
Function: Entrance
Knob Shape: Spherical
Lock Grade: Domestic
Lock Type: Cylindrical
