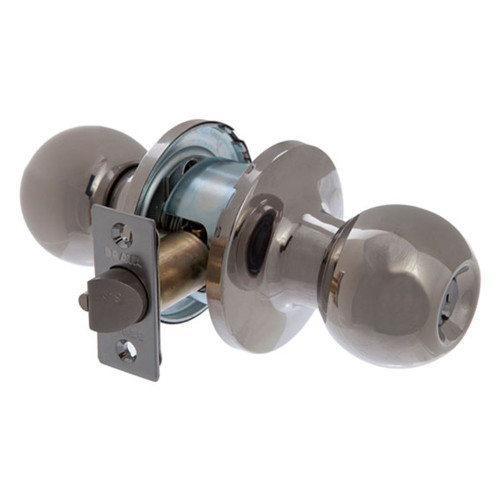

Brava Metro RA Series Tiebolt Knob Sets - Adjustable Backset
The Brava Metro RA Series Tiebolt Knob Sets are commercial grade cylindrical locksets designed for high-use environments. Featuring concealed tiebolt fixing, an adjustable 60-70 mm latch, and compatibility with restricted keying systems, the RA Series is commonly specified across Australian commercial and institutional projects.
Key Features
- Commercial grade cylindrical tiebolt construction.
- Adjustable 60 mm / 70 mm backset supplied as standard.
- Concealed tiebolt fixing for improved security and durability.
- Silca LW5 profile 6 pin cylinder on locking functions.
- Incorporates the widely used PD 8221 style barrel.
- Compatible with most restricted keying systems.
- Supplied boxed and colour coded by function.
Fire Rated
- Successfully tested up to 4 hours on compliant fire door assemblies.
- Fire rating applies when installed as part of an approved fire door system in accordance with AS 1905.1.

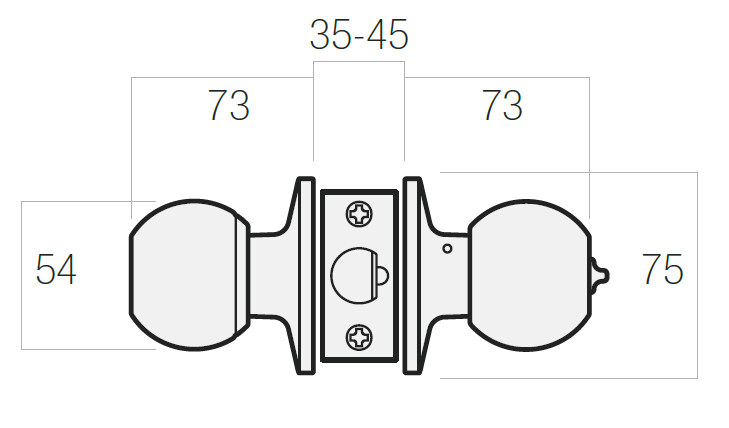

Specifications
- Series: Brava Metro RA
- Fixing Type: Tiebolt cylindrical
- Backset: 60 mm / 70 mm adjustable latch
- Door Thickness: 35 mm to 45 mm
- Rose Diameter: 75 mm
- Maximum Knob Projection: 73 mm (does not include turnsnib)
- Strike Plate: 70 mm x 28 mm x 2 mm
- Latch Face Plate: 25 mm x 57 mm
- Handing: Non-handed
Available Variants
Brava Metro RA Series Tiebolt Knob Sets – Item Code Family
Frequently Asked Questions
Is this suitable for fire doors?
Yes, when installed as part of a compliant fire door assembly and using approved hardware.
Can this be keyed alike to existing systems?
Yes. LW5 profile cylinders are compatible with many restricted and master key systems.
What is a common installation mistake?
Using deadlatching latches on passage functions or selecting the incorrect backset for the door preparation.
Additional Information
- Commonly specified in Australian schools, offices, healthcare and institutional buildings.
- Tiebolt fixing improves resistance to forced attack compared to standard cylindrical sets.
- Storeroom variants are key-retained and cannot be left unlocked.
- Latch and cylinder compatibility should be confirmed when retrofitting into existing door preparations.
