Brava Metro EV8000 Series Institution Lever Set Clutching 70 mm Backset Satin Chrome
The Brava Metro EV8000 Series Institution Lever Set is a heavy duty commercial cylindrical lockset designed for institutional and high abuse environments. Both levers remain clutching at all times, with key operation from either side used solely to retract the latch.
Fire rated up to 4 hours when installed as part of a compliant fire doorset in accordance with AS1905.1 2005.
Key Features
- Institution function with key operation from either side.
- Keys retract latch only while both levers remain clutching.
- Clutching levers designed to resist forced operation.
- Commercial grade cylindrical construction.
- Non handed lever design.
- Carolina lever style.
- LW5 profile 6 pin cylinders.
- Incorporates PD 8221 barrels.
- Compatible with most restricted keying systems.
- Supplied with 2 keys.
- Finished in satin chrome.
Specifications
- Item Code: EV8061SC70
- Function: Institution
- Lock Type: Cylindrical
- Lock Grade: Commercial
- Cylinder: LW5 profile 6 pin
- Clutching Levers: Yes
- AS1428.1 Compliant Lever: No
- Fire Rated: Yes
- Finish: Satin Chrome
What’s In The Box
- Institution lever set
- 70 mm latch
- Strike plate
- PD 8221 cylinders (keyed alike)
- Fixing hardware
- Installation instructions
Suitable Uses
- Correctional facilities.
- Institutional buildings.
- Mental health and care facilities.
- High abuse or controlled access environments.
Dimensions
| Measurement | Value |
|---|---|
| Door Thickness | 35 mm to 51 mm |
| Backset | 70 mm |
| Maximum Lever Projection | 72.5 mm |
| Strike Size | 28 mm x 70 mm x 2 mm |
| Latch Face Plate | 57 mm x 25 mm |
| Rose Diameter | 85 mm |
| Door Handing | Non handed |
Brava Metro EV8000 Series Item Code Family 70 mm Backset
| Item Code | Function | DDA Compliant | Description |
|---|---|---|---|
| EV8061SC70 | Institution | No | This product |
| EV8000SC70 | Entrance | No | Entrance lever with external clutching |
| EV8012SC70 | Classroom | No | Classroom function |
| EV8011SC70 | Glass Door | No | Glass door lever |

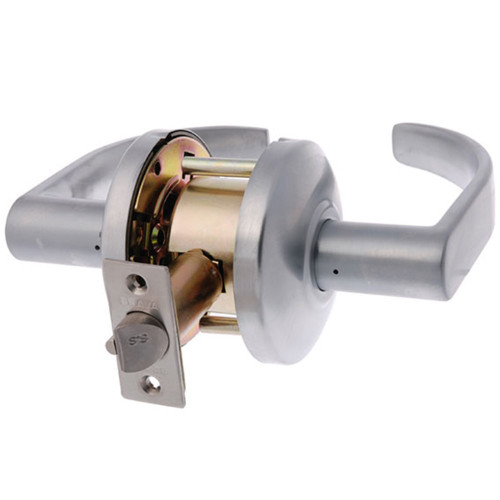

| EV8082SC70 | Passage | No | Free passage lever set |

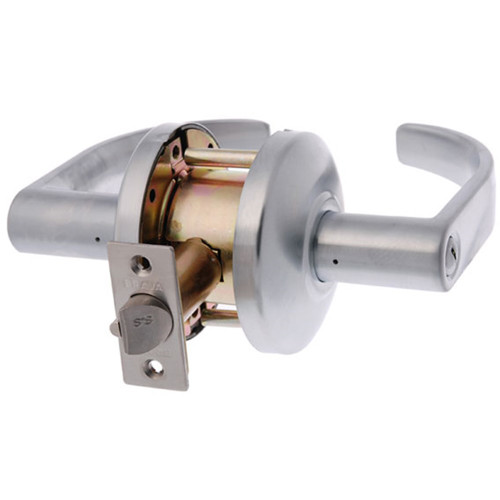

| EV8030SC70 | Privacy | No | Privacy lever with emergency release |
PDF Resources
Frequently Asked Questions
- How does institutional function work?
Keys from either side retract the latch only while both levers remain clutching. - Why are clutching levers used?
They help reduce damage caused by forced operation in high abuse environments. - Is this suitable for fire doors?
Yes, when installed as part of a compliant fire rated doorset.
Additional Information
- Key operation is limited to latch retraction only for controlled access.
- Clutching levers help minimise damage if excessive force is applied.
- Fire rating applies only when installed as part of a tested doorset.
