Brava Metro EL Series Privacy Lever Set – 70 mm Backset
The Brava Metro EL Series Privacy Lever Set – 70 mm Backset is a commercial grade cylindrical privacy lever set designed for internal doors requiring controlled locking with an emergency release function. Locking is activated by a push button on the internal lever, with external access available via emergency release.
Estimated Warehouse Dispatch: 2 Days
Key Features
- Privacy function with internal push-button locking.
- External emergency release via coin or screwdriver.
- Automatic kick-off when internal lever is operated.
- Cylindrical fixing with anti-rotation points.
- Commercial grade construction.
- Supplied boxed and colour coded with mounting hardware.
Fire Rated
- Successfully tested up to 4 hours on fire door assemblies in accordance with AS1905.1-2005, subject to doorset configuration.
Disability Act Compliance
- Lever design complies with AS1428.1 accessibility requirements.
- Suitable for accessible paths of travel when installed correctly.
- Compliance assessment must be confirmed by the project certifier.

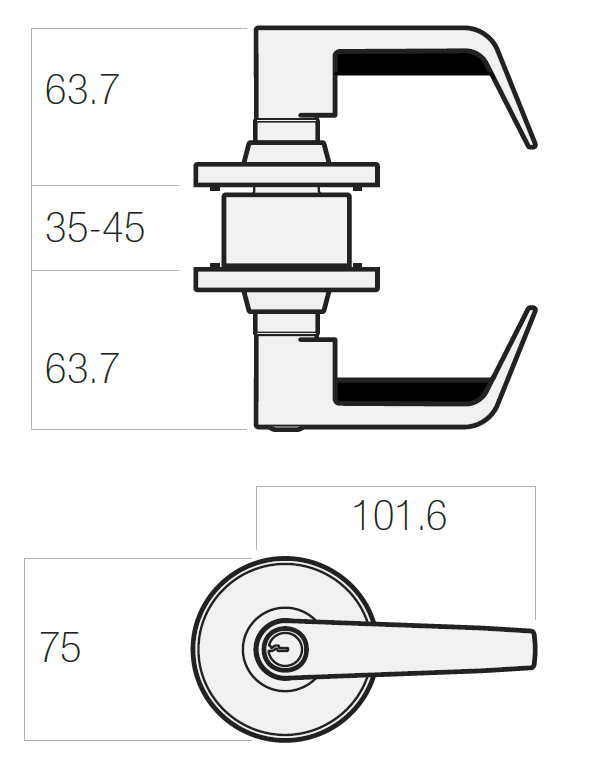

Specifications
- Function: Privacy
- Lock Type: Cylindrical
- Lock Grade: Commercial
- Backset: 70 mm
- Door Thickness: 35 mm to 45 mm
- Maximum Lever Projection: 63.7 mm
- Rose Diameter: 75 mm
- Latch Face Plate: 57 mm × 25 mm
- Strike: 70 mm × 27 mm × 1.2 mm
- Door Handing: Non-handed
- Clutching Levers: No
Brava Metro EL Series Lever Sets – 70 mm Backset (Item Code Family)
Available Colour Variants
-
Chrome Plated
EL6030BC70 -
Matt Black
EL6030MB70 -
Polished Brass
EL6130PB70 -
Satin Chrome
EL6030SC70
Frequently Asked Questions
Does this lever automatically unlock?
Yes. Operating the internal lever releases the lock automatically.
Is this suitable for bathrooms?
Yes. This privacy function is commonly used for bathrooms and similar internal rooms.
Is this fire door suitable?
Yes, when installed as part of a compliant fire rated doorset.
Additional Information
- Emergency release is designed for non-keyed internal access only.
- Privacy function is not intended for high-security applications.
- Commonly specified in Australian commercial interiors.
