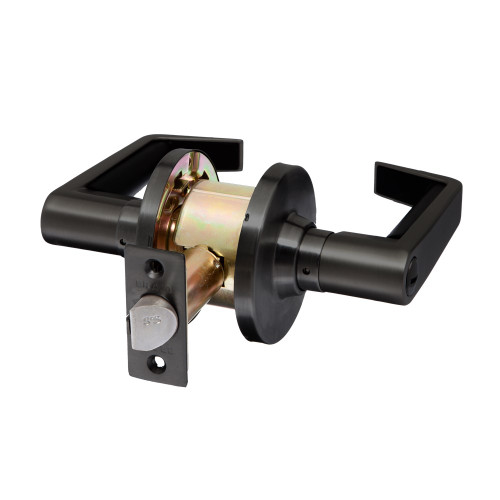

Brava Metro EL Series Classroom Lever Set – 70 mm Backset
The Brava Metro EL Series Classroom Lever Set – 70 mm Backset is a commercial grade cylindrical classroom lever set designed for controlled access environments. The external lever is key operated, while the internal lever remains free at all times, making it suitable for education and institutional applications requiring secure access with safe egress.
Estimated Warehouse Dispatch: 2 Days
Key Features
- Classroom function with keyed external lever.
- Internal lever always free for safe egress.
- Cylindrical fixing with straight lever design.
- Silca LW5 profile 6 pin cylinder.
- Incorporates the PD 8221 barrel.
- Compatible with most restricted keying systems.
- BCA AS1428.1-2009 compliant lever design.
- Supplied boxed and colour coded with mounting hardware.
- Two keys supplied.
Fire Rated
- Successfully tested up to 4 hours on fire door assemblies in accordance with AS 1905.1-2005, subject to doorset configuration.

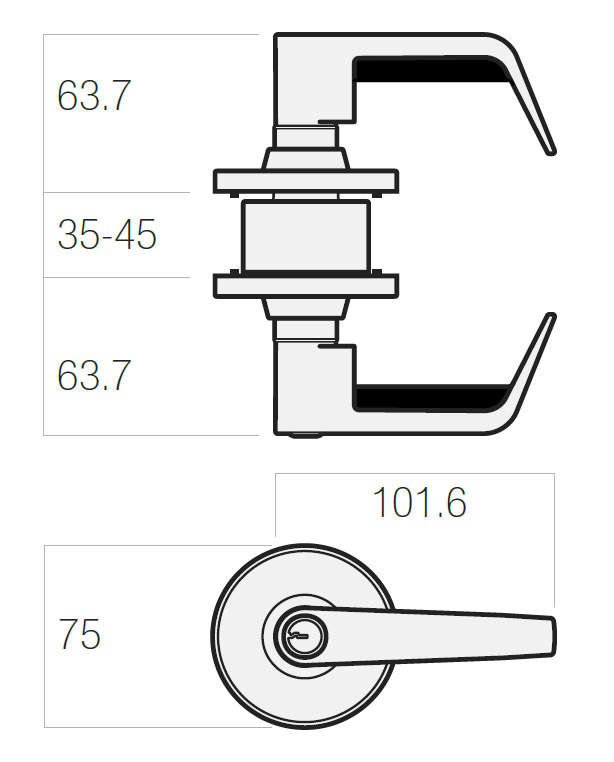

Specifications
- Function: Classroom
- Lock Type: Cylindrical
- Lock Grade: Commercial
- Backset: 70 mm
- Door Thickness: 35 mm to 45 mm
- Maximum Lever Projection: 63.7 mm
- Rose Diameter: 75 mm
- Latch Face Plate: 57 mm × 25 mm
- Strike: 70 mm × 27 mm × 1.2 mm
- Cylinder: LW5 profile
- Door Handing: Non-handed
- Accessibility: AS1428.1 compliant lever
- Clutching Levers: No
Suitable Uses
- Classrooms and teaching spaces.
- Education and training facilities.
- Commercial and institutional doors requiring controlled access.
- Fire rated door assemblies where compliant hardware is required.
Available Colour Variants
-
Chrome Plate
EL6012BC70 -
Matt Black
EL6012MB70 -
Polished Brass
EL6112PB70 -
Satin Chrome
EL6012SC70
Brava Metro EL Series Lever Sets – Item Code Family
Download PDF Resources
|
Brava Commercial Hardware Catalogue 2024 |
Frequently Asked Questions
Can the outside lever be locked while occupants are inside?
Yes. The outside lever is key controlled while the inside lever remains free.
Is this lever compliant with disability access requirements?
Yes. The lever design complies with AS1428.1 accessibility requirements.
Is this suitable for fire doors?
Yes, when installed as part of a compliant fire rated doorset tested to AS 1905.1.
Additional Information
- Classroom function allows external access control without restricting internal egress.
- AS1428.1 compliance makes this suitable for accessible paths of travel.
- Fire rating applies to the tested doorset configuration, not the finish.
