Brava Metro EA Series Glass Door Knob Set – 70 mm Backset
The Brava Metro EA Series Glass Door Knob Set – 70 mm Backset is a commercial grade cylindrical knobset designed specifically for glass door applications requiring keyed control from both sides. It is part of the Brava Metro range and is commonly specified in Australian commercial and institutional environments where security and fire performance are required.
Estimated Warehouse Dispatch: Usually same day dispatch (if ordered before 11am)
Key Features
- Glass door function with keyed operation on both sides.
- Outside and inside keys lock and unlock both knobs.
- Cylindrical fixing with spherical knob design.
- Silca LW5 profile 6 pin cylinders.
- Incorporates PD 8221 barrels.
- Compatible with most restricted keying systems.
- Supplied boxed and colour coded with mounting hardware.
- Two keys supplied.
Fire Rated
- Successfully tested up to 4 hours on fire door assemblies in accordance with AS 1905.1-2005, subject to doorset configuration.

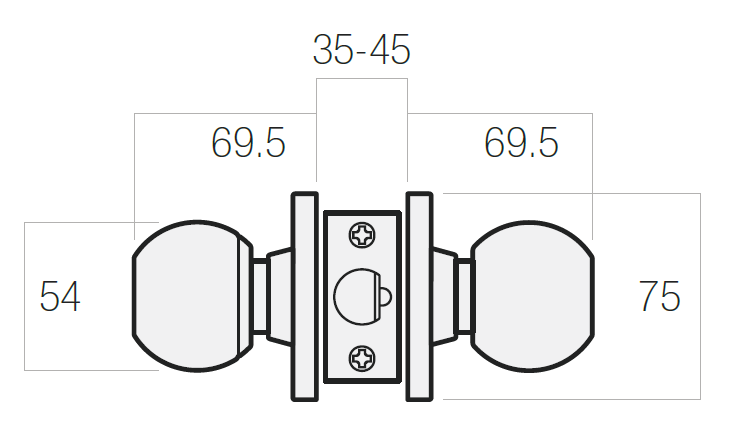

Specifications
- Function: Glass Door
- Lock Type: Cylindrical
- Lock Grade: Commercial
- Backset: 70 mm
- Door Thickness: 35 mm to 45 mm
- Maximum Knob Projection: 69.5 mm
- Rose Diameter: 75 mm
- Latch Face Plate: 57 mm × 25 mm
- Strike: 70 mm × 27 mm × 1.2 mm
- Cylinder: LW5 profile
- Door Handing: Non-handed
Suitable Uses
- Commercial glass doors requiring keyed access from both sides.
- Internal glass partitions in offices and institutions.
- Fire rated glass door assemblies where compliant hardware is required.
Available Colour Variants
-
Matt Black
EA3011MB70 -
Polished Brass
EA3111PB70 -
Polished Stainless Steel
EA3811PSS70 -
Satin Stainless Steel
EA3011SS70
Brava Metro EA Series Knob Sets – Item Code Family
Download PDF Resources
|
Brava Commercial Hardware Catalogue 2024 |
Frequently Asked Questions
Does this latch the door?
No. In the glass door function, the latch is not retracted by the knobs. Locking and unlocking controls knob rotation only.
Is this suitable for fire doors?
Yes, when installed as part of a compliant fire rated glass doorset tested to AS 1905.1.
Can this be keyed alike with other Brava Metro locks?
Yes. LW5 cylinders allow keying alike where compatible systems are used.
Additional Information
- Glass door function does not provide latch retraction via the knobs.
- Correct glass door preparation and fixing method must be confirmed before installation.
- Fire rating applies to the tested doorset configuration only.
